» 50*9*4000MM, DURO 70-75 SCREEN SQUEEGEE



screen printing squeegee

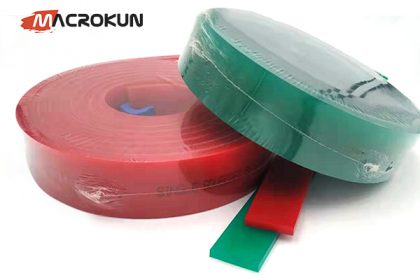

Printing squeegee:

These screen printing squeegees feature a solid wooden handle or a ergonomical aluminum handle with squeegee rubber already installed. Available from 55 to 95 durometer. Durometer is commonly the most versatile squeegee durometer on the market since it is soft enough to lay a lot of plastisol ink but hard enough to shear the ink away from the screen.



Screen Silk Squeegee Information:

Welcome to buy the screen printing squeegee produced by MACROKUN

Screen printing squeegee size(for you to choose)

squeegee



MKPU-100 MKPU-300 MKPU-500 MKPU-800 ±Tolerance
Thickness 2-20mm ±0.3mm
Width 9-500mm ±1.00mm
Length 10-4000mm ±5mm
Hardness 55-95 Shore A ±3A



Standard Hardness
Soft 55,60,65 Shore A red or natural
Medium 70,75 Shore A green or natural
Hard 80,85 Shore A blue or natural
Super Hard 90,95, Shore A white
Triple Medium 75/90/75 Shore A green/white/green
Triple Soft 65/90/65 Shore A red/white/red



Screen Printing Squeegee Standard Profiles



E1:Straight Square Edge

E2:Single Bevel+Flat tip

E3:Single Bevel

E4:Double Bevel+Flat tip

E5:Double Bevel (V shape)

E6:Bull Nose (round top)

E7:H shape

E8:Triple layer

E9:Double layer



squeegee



Different Type Screen Printing Squeegee



MK-PU100 SQUEEGEE MK-PU100

Usage : Widely used in t-shirt,textiles printing etc.

Feature : Resistant to water-based inks and common solvents.



MK-PU300 SQUEEGEE MK-PU300

Standard References :  Soft 65sh A red / Medium 75shA green

Usage : Widely used in UV inks,CD/DVD,disc,glass,ceramic,

package,PCB printing etc.

Feature : It is and all purpose polyurethane blade with good

combined resistance to chemicals  and abrasion.it was

developed to withstand various applications in screen printing.



MK-PU500 SQUEEGEE MK-PU500

Standard References :  Soft 65sh A red / Medium 75shA green

Usage : Widely used in PCB,Solar panel,touch screen,glass,decal

paper printing etc.

Feature : It is a special polyurethane blade with exceptioinal

combined resistance to chemicals and abrasion.It was developed

to withstand the toughest applications in screen printing and to

have a long shelf life in most environments,sharpens well.



MK-PU800 SQUEEGEEE MK-PU800

Storage of squeegee : Squeegee need to be put in dry and cool

warehouse for long time storage.Newly purchased squeegees,

you’d better rotate to use it ,after daily use,just clean the solvent

on the squeegee surface,keep the squeegee edge upward.

Usage : Widely used in UV inks,glass,ceramic,PCB and electronics

printing etc.

Feature : Raw material from Taiwan,super solvent resistant,

abrasion resistant,longer service life,anti-static.



TRIPLE LAYER SQUEEGEE Triple Layer

Triple sof 65/90/65 shA Red/White/Red Advantages.

Good resistance to chemicals & abrasion.

Resistance to abrasion.

Sharpens easy.

Color coded for easy identification.

High environment stability.

Individual package and batch Applications
