high tensionScreen Printing Mesh

High tension silk screen printing mesh; Precision weaving with thick and imported silk; Mainly used in printing ceramics;  Floor tiles;  Tiles; etc.The high tension type thick screen printing mesh is mainly used in the field of ceramic and tile direct printing, and the high tension type screen printing mesh is easy to realize high definition and high color application. High-tension printing mesh can meet the requirements of high wear resistance and high resolution for ceramic and tile printing, and can print dazzling patterns and colors.

Material Polyester; Nylon; Stainless steel
Specification 7T -165T
Mesh count 18-420 mesh
Woven type Plain woven
Color White; Yellow
Width 127cm,145cm,165cm,2.50cm etc,customize
Production type  Roll cloth
The length of roll 30-80m; Can be customized length; Customize

Advantages

  • Excellent UV resistance.
  • Large printing area and little limitation to substrate materials.
  • Low elongation and good mechanical resistance.
  • Precious printing.
  • High printing adaptation.
  • Printed pattern is not sensitive to climate impacts.
  • Suitable for different printing inks.
  • Low pressure and suitable for fragile ceramics.
  • Different mesh counts are suitable for different printing requirements.

    Related Posts

    1. SCREEN PRINTING MESH
    2. Solar cells screen printing mesh
    3. Stainless Steel Screen Printing Mesh
    4. Glass Screen Printing Mesh
    5. GLASS SCREEN PRINTING MESH
    6. Electronic Tensiometer High precision tension meter
    7. Screen Printing Mesh Tension Meter
    8. High Quality Polyester Printing Mesh Silk Screen Printing Mesh
    9. High Quality Arts and Crafts Screen Printing Mesh
    10. High Quality Food Grade 400 Micron Polyester /Nylon Filter Mesh Fabric Screen Printing Mesh
    11. Tension Meter for Screen Printing Using
    12. HIGH QUALITY SCREEN PRINTING SQUEEGEE

    HIGH TENSION SCREEN PRINTING MESH

    Model Specification
    (cm)    		 Mesh count
    (mesh/inch)    		 Thread Diameter（um） Mesh opening（um） Open Area（%） Thickness（um） Theoretic Ink Volume
    (cm3/m2)    		 Request a Quote
    PET36/178 36 90 90 178 44 153 67
    PET39/183 39 99 64 183 54 109 59
    PET39/176 39 99 71 176 50 121 61
    PET43/145 43 110 80 145 41 136 56
    PET47/141 47 120 64 141 47 109 51
    PET100/51 100 254 40 51 30 85 26
    PET110/43 110 280 40 43 26 68 18
    PET120/41 120 305 35 41 23 60 14
    PET130/36 130 330 34 36 24 58 14
    PET140/32 140 350 34 32 19 58 11
    PET150/31 150 380 30 31 23 51 12
    PET165/25 165 420 31 25 16 53 8
    Advantages
    • Excellent UV resistance.
    • Large printing area and little limitation to substrate materials.
    • Low elongation and good mechanical resistance.
    • Precious printing.
    • High printing adaptation.
    • Printed pattern is not sensitive to climate impacts.
    • Suitable for different printing inks.
    • Low pressure and suitable for fragile ceramics.
    • Different mesh counts are suitable for different printing requirements.

    Applications

    Ceramic decals

    • Line work.
    • Halftones
    • Effects
    • Precious metals.
    • Relief
    • Covercoats

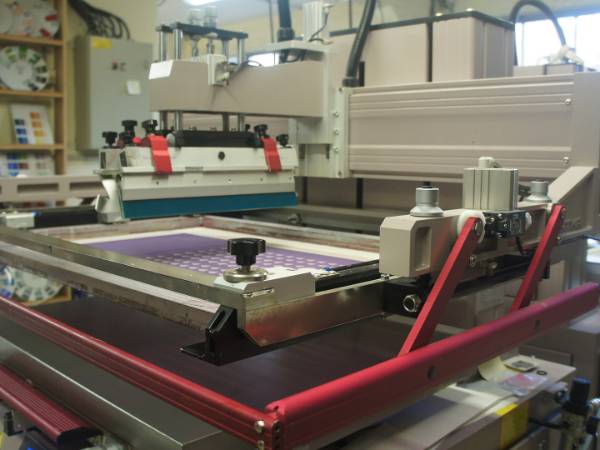

    A machine is producing screen printing ceramic decals.

    Screen printing on Ceramic Decals

    A dish, two cup and teapot with screen printed flower pattern on the table.

    Screen printed tableware

    Ceramic tiles

    • Line work
    • Halfstones
    • Precious metals
    • Relief
    • Glaze

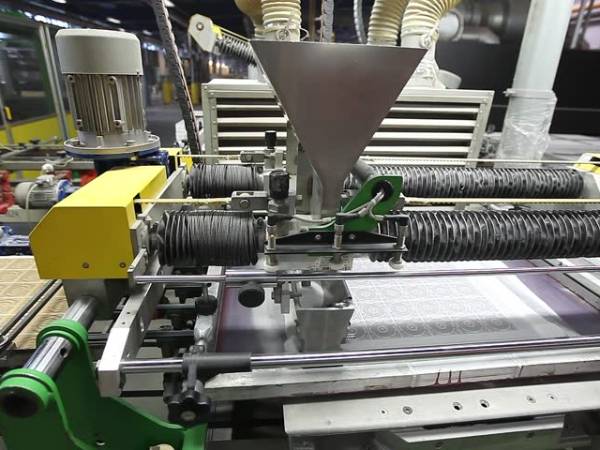

    A machine is screen printing ceramic tiles.

    Ceramic tiles screen printing

    Several ceramic tiles are paved on the floor.

    Screen printed ceramic tiles

    Hollow ware ceramics

    • Scale
    • Decoration
    • Information

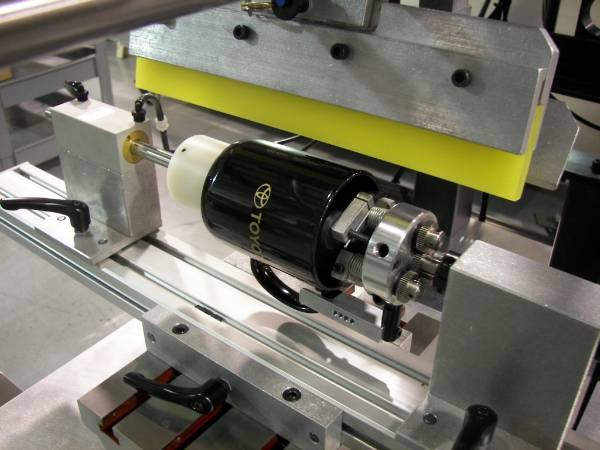

    A black cup is being screen printed with machine.

    Screen printing on hollow ware ceramics

    Several nylon screen printed cups with different patterns on the table.

    Screen printed hollow ware ceramics

    Available Types

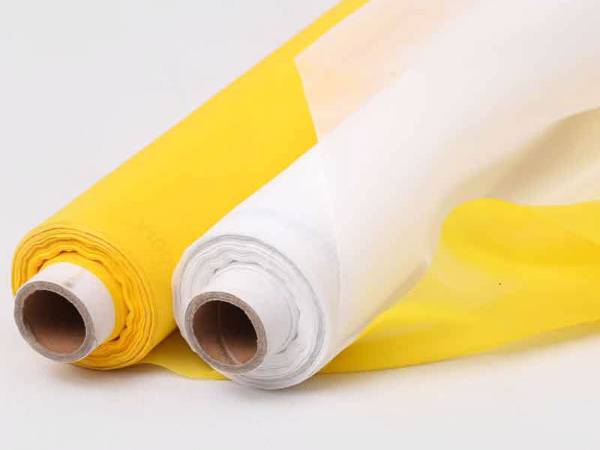

    A roll yellow, a roll white Polyester screen printing mesh on gray background.

    Polyester screen printing mesh

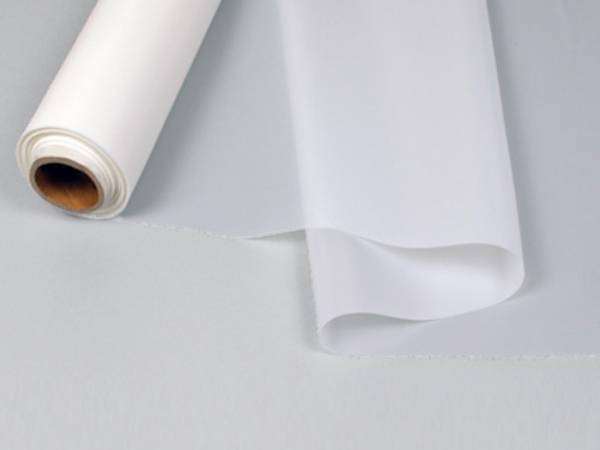

    A roll of nylon ceramic screen printing mesh on gray background.

    Nylon screen printing mesh
