Silk Screen Series

CB, CQ silk screen series products are pure natural silk screening materials specially used in food screening filtration and flour milling industry.

Material Pure natural silk.
Specification CQ4-CQ29 CB30-CB62, 100-2100um Aperture.

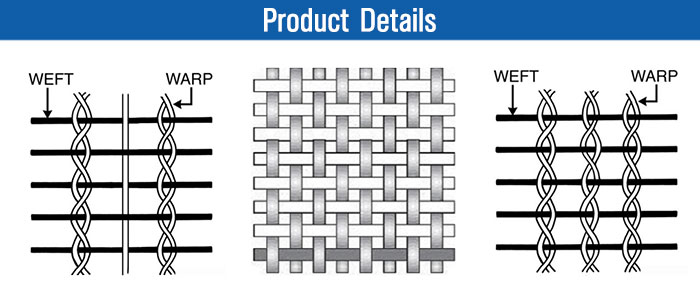

Weaving type Full twist; Half twist.
Width 1.02m, 1.2m, etc.; Or customizable.

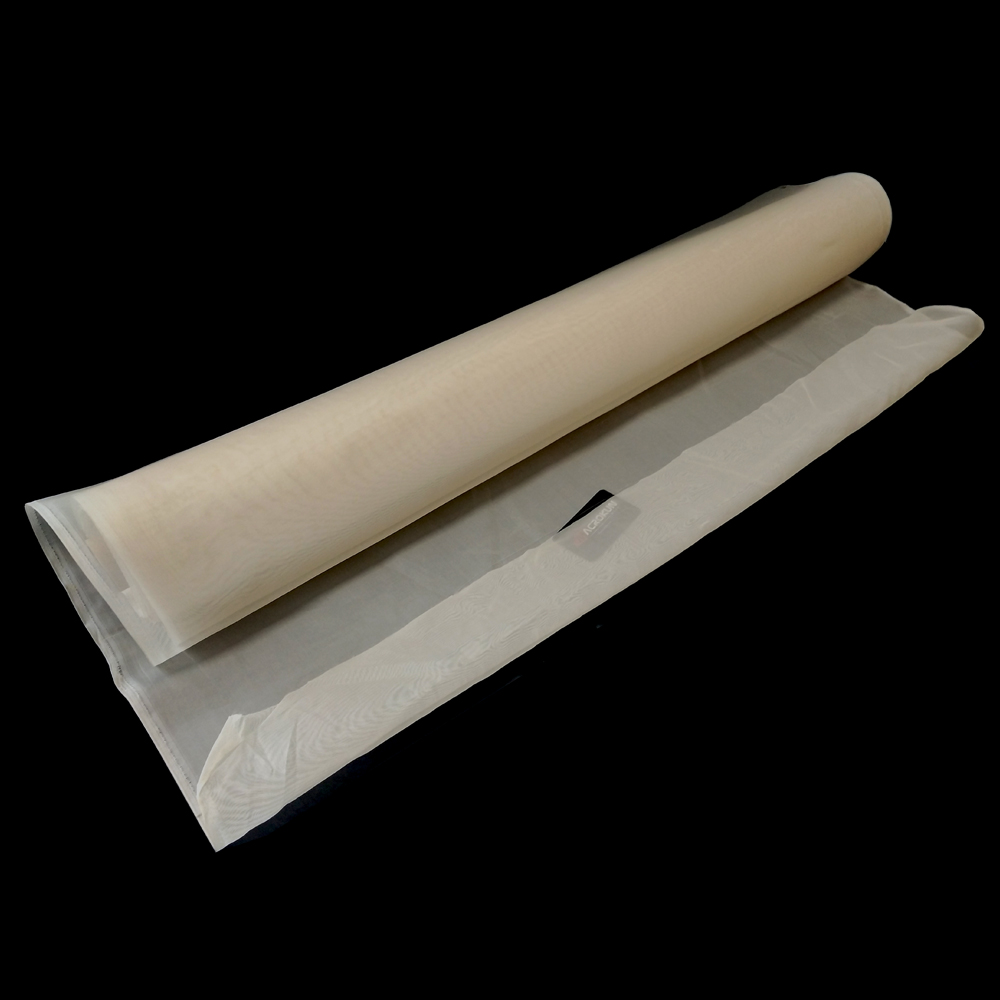

Product Form Roll mesh fabric.
Roll length 30-80 meters; Customizable.

Main Applications: Food Processing Screening filtration; Powder Milling or Filter; Spice Factory and Cosmetics Manufacturing processes.

Category:
For multiple roll orders please contact [email protected] or 13803219803 as order is too large for courier.

Contact Us

TAXTILE SCREEN PRINTING MESH

Type Specification (cm) Mesh count (mesh/inch) Thread Diameter (μm) Mesh opening(μm) Open Area(%) Request a Quote
CQ4 4 10 20 / 22 2107 71
CQ5 5 13 20 / 22 1632 67
CQ6 6 15 20 / 22 1326 63
CQ7 7 18 20 / 22 1118 61
CQ8 8 20 20 / 22 956 58
CQ9 9 23 20 / 22 833 56
CQ10 10 25 20 / 22 737 54
CQ11 11 28 20 / 22 629 53
CQ12 12 30 20 / 22 577 51
CQ13 13 33 20 / 22 533 49
CQ14 14 36 20 / 22 495 48
CQ15 15 38 20 / 22 457 47
CQ16 16 41 20 / 22 428 46
CQ17 17 43 20 / 22 400 46
CQ18 18 46 20 / 22 377 46
CQ19 19 48 20 / 22 351 44
CQ20 20 51 20 / 22 330 44
CQ21 21 53 20 / 22 312 43
CQ22 22 56 20 / 22 296 43
CQ23 23 58 20 / 22 279 41
CQ24 24 61 20 / 22 265 40
CQ25 25 64 20 / 22 253 40
CQ26 26 66 20 / 22 246 41
CQ27 27 69 20 / 22 237 41
CQ28 28 71 20 / 22 226 40
CQ29 29 74 20 / 22 222 41
CP30 30 76 20 / 22 218 44
CP33 33 84 20 / 22 199 43
CP36 36 91 20 / 22 178 41
CP39 39 99 20 / 22 162 40
CP42 42 107 20 / 22 148 39
CP46 46 117 20 / 22 136 39
CP50 50 127 20 / 22 127 40
CP54 54 137 20 / 22 119 41
CP58 58 147 20 / 22 106 38
CP62 62 157 20 / 22 104 42

Delivery
For small testing ordre We will sending the goods within 1-3 days.For bigger order will send the goods within 7-10 days
