screen printing mesh

Screen printing is an effective, economical and main technology in solar cell production. It is an important process in front and rear metallization layers. This process reliable and reproducible material for standardized and precise production.

We can supply you both 100% polyester screen printing mesh and stainless steel screen printing mesh for more accuracy and reliable solar panel production and meet the high-volume demands as the energy markets continues to grow.

Material Polyester;  Nylon;  Stainless steel
Specification 36T -140T
Mesh count 90-420 mesh
Woven type Plain woven
Color White ; Yellow
Width 127cm,145cm,165cm,2.50cm etc,Customize
Production type  Roll cloth
The length of roll 30-80m,Can be customized length; Customize

Advantages

  • Wide ranges of mesh counts for all requirements and accuracy of screen printing.
  • Maximum efficient and reproducible for solar cell production.
  • Stainless steel or polyester materials options for different budget requirements and accuracy.
  • Custom service for stencil makers and solar panel printers.
  • Reduce production costs and production loss for your solar cell production.
  • Competitive prices help you occupy more markets in your local markets.
Category:
For multiple roll orders please contact [email protected] or 13803219803 as order is too large for courier.

Contact Us

SOLAR CELLS SCREEN PRINTING MESH

Item Mesh Counts Wire Dia (μm) Mesh Opening (μm) Open Area % Thickness (μm) Request a Quote
mesh / cm mesh / inch
SCPMP-01 72 183 48 91 43 75
SCPMP-02 72 183 55 84 37 105
SCPMP-03 77 195 55 75 33 108
SCPMP-04 80 203 48 77 38 77
SCPMP-05 90 230 48 63 32 80
SCPMP-06 100 254 40 60 36 65
SCPMP-07 110 280 40 51 31 70
SCPMP-08 120 305 34 48 35 63
SCPMP-09 120 305 40 43 27 75
SCPMP-10 140 355 34 37 27 65
SCPMP-11 150 380 31 36 29 52

Delivery
For small testing ordre We will sending the goods within 1-3 days.For bigger order will send the goods within 7-10 days

Print Table

<div class=”region region–application__features paddingTB-60 background-white”>
<div class=”stage”>
<div class=”font-size-24 app-pro-top”><strong>Advantages</strong></div>
<div class=”app-pro-con”>
<ul>
<li>Wide ranges of mesh counts for all requirements and accuracy of screen printing.</li>
<li>Maximum efficient and reproducible for solar cell production.</li>
<li>Stainless steel or polyester materials options for different budget requirements and accuracy.</li>
<li>Custom service for stencil makers and solar panel printers.</li>
<li>Reduce production costs and production loss for your solar cell production.</li>
<li>Competitive prices help you occupy more markets in your local markets.</li>
</ul>
</div>
</div>
</div>
<div class=”region region–application–2 application–series paddingTB-60 marginT-40 background-white”>
<div class=”stage”>
<div class=”font-size-24 line line-left app-pro-top”>

<hr />

<strong>Applications</strong>

</div>
<div class=”app-pro-con”>
<div class=”application–2__main”>
<div class=”application–2__ul”>
<div class=”font-size-20″>Crystalline solar cells</div>
<ul>
<li>Front metallization layer</li>
<li>Rear metallization layers</li>
</ul>
</div>
<div class=”application–2__img” style=”overflow: hidden;”>
<div class=”grid grid–gutter grid–1 grid–sm-2 grid–md-2 grid–lg-2 grid–xl-3 text-center”>
<div class=”cell col-lg-4″>
<div class=”pro–img”>

<a title=”Crystalline solar cell screen printing” href=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/crystalline-solar-cell-screen-printing-mesh-production.jpg” rel=”nofollow” data-lightbox=”img001″><img src=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/crystalline-solar-cell-screen-printing-mesh-production.jpg” alt=”A machine is screen printing crystalline solar cell.” /></a>

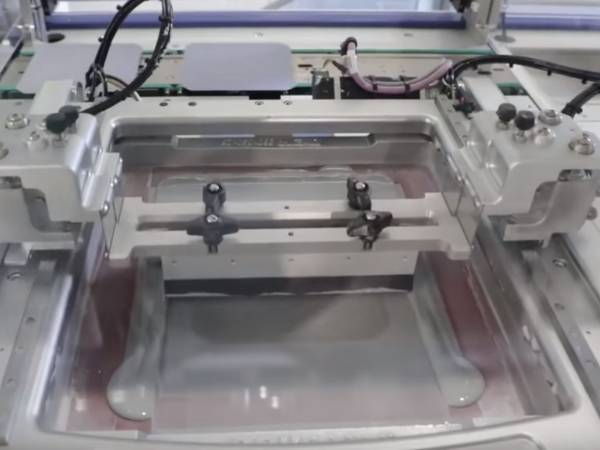

Crystalline solar cell screen printing

</div>
</div>
<div class=”cell col-lg-4″>
<div class=”pro–img”>

<a title=”Screen printed crystalline solar cell” href=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/crystalline-solar-cell-screen-printing-mesh.jpg” rel=”nofollow” data-lightbox=”img001″><img src=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/crystalline-solar-cell-screen-printing-mesh.jpg” alt=”A detail of crystalline solar cell.” /> </a>

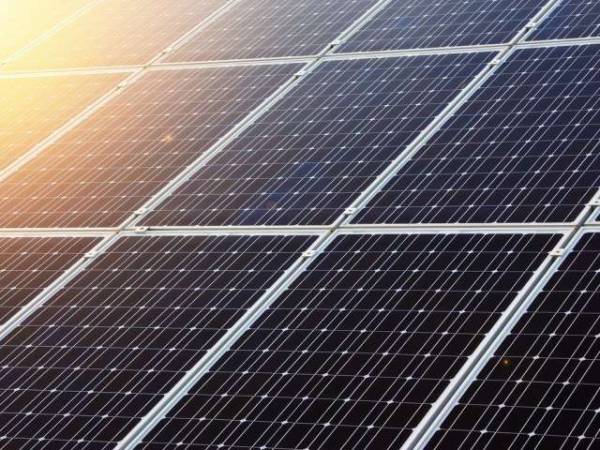

Screen printed crystalline solar cell

</div>
</div>
</div>
</div>
</div>

<hr />

<div class=”application–2__main”>
<div class=”application–2__ul”>
<div class=”font-size-20″><strong>Dye-sensitized solar cells</strong></div>
<ul>
<li>TiO<sub>2</sub> layer</li>
<li>Insulation layer</li>
<li>Dye layer</li>
<li>Electrolyte layer</li>
<li>Counter electrodes</li>
</ul>
</div>
<div class=”application–2__img” style=”overflow: hidden;”>
<div class=”grid grid–gutter grid–1 grid–sm-2 grid–md-2 grid–lg-2 grid–xl-3 text-center”>
<div class=”cell col-lg-4″>
<div class=”pro–img”>

<a title=”Dye-sensitized solar cell screen printing” href=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/dye-sensitized-solar-cell-screen-printing-mesh-printing.jpg” rel=”nofollow” data-lightbox=”img001″><img src=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/dye-sensitized-solar-cell-screen-printing-mesh-printing.jpg” alt=”A machine is screen printing dye-sensitized solar cell.” /></a>

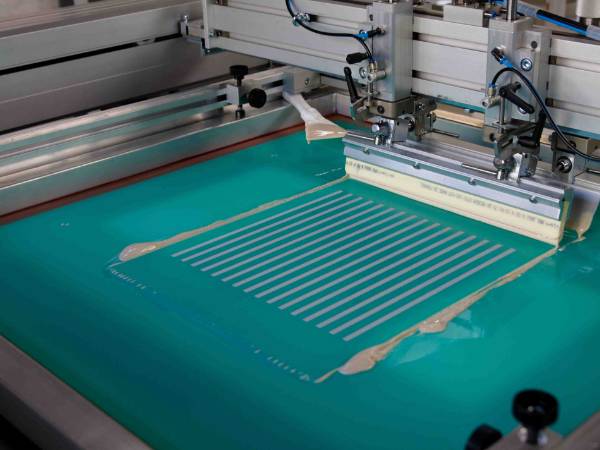

Dye-sensitized solar cell screen printing

</div>
</div>
<div class=”cell col-lg-4″>
<div class=”pro–img”>

<a title=”Screen printed dye-sensitized solar cell” href=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/dye-sensitized-solar-cell-screen-printing-mesh.jpg” rel=”nofollow” data-lightbox=”img001″><img src=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/dye-sensitized-solar-cell-screen-printing-mesh.jpg” alt=”A detail of dye-sensitized solar cell.” /> </a>

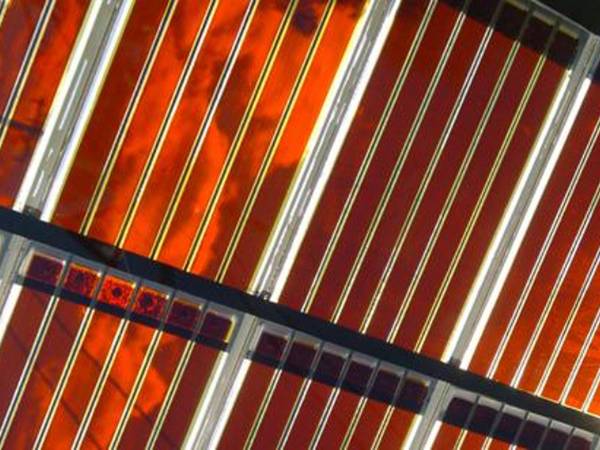

Screen printed dye-sensitized solar cell

</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
<div class=”region region–application–types paddingTB-60 marginT-40 gray”>
<div class=”stage”>
<div class=”font-size-24 app-pro-top”>

<hr />

<strong>Available Types</strong>

</div>
<div class=”app-pro-con”>
<div class=”grid grid–gutter grid–1 grid–sm-2 grid–md-2 grid–lg-2 grid–xl-3 text-center marginT-40″>
<div class=”cell col-lg-4″>
<div class=”pro–img”>

<a title=”Stainless steel screen printing mesh” href=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/screen-printing-solar-ss-mesh.jpg” rel=”nofollow” data-lightbox=”img002″><img src=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/screen-printing-solar-ss-mesh.jpg” alt=”Three rolls of stainless steel screen printing mesh on gray background.” /> </a>

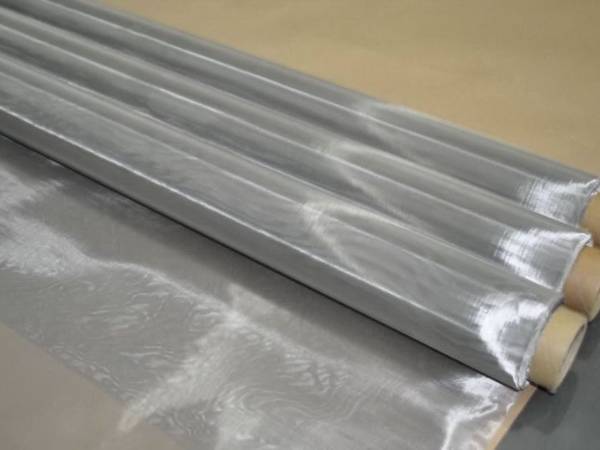

Stainless steel screen printing mesh

</div>
</div>
<div class=”cell col-lg-4″>
<div class=”pro–img”>

<a title=”Polyester screen printing mesh” href=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/screen-printing-solar-polyester-mesh.jpg” rel=”nofollow” data-lightbox=”img002″><img src=”https://www.macrokunmesh.com/wp-content/uploads/2020/04/screen-printing-solar-polyester-mesh.jpg” alt=”Several yellow and a white screen printing mesh on gray background.” /> </a>

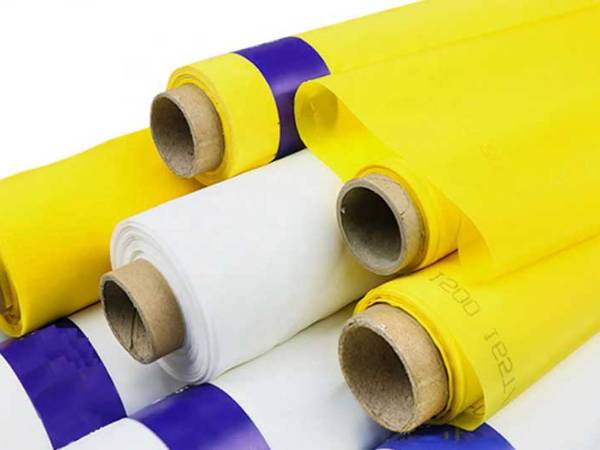

Polyester screen printing mesh

</div>
</div>
</div>
</div>
</div>
</div>
