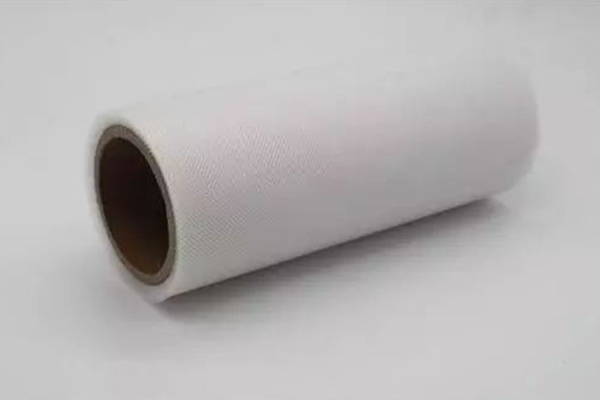

Plastic filter mesh is mainly used as protective sheath or supporting.
| Product Name | Plastic filter net is also called extrusion net; Diamond net; Support net and so on. |
| Material | Polyethylene (PE), Polypropylene (PP), Polyamide (PA) Material |
| Specification | 7 x 7 mesh – 16 x 16 mesh |
| Weave Type | Extrusion diamond |
| Width | 1016-1200mm; Or customized |
| Product Form | Rolls |
| Roll length | 200 meters; 305 meters; Or customized |
| Color | White; Black; blue; Or customized |
Advantages:Corrosion Resistance; Light Weight; Increasing Filtration Area and Improving Filtration Efficiency.
Usage:Used for outer sheath and supporting function of filter element.
PLASTIC FILTER MESH
| Thickness | SPI | Angle | Width(mm) | Material | Request a Quote |
|---|---|---|---|---|---|
| 0.43mm | 16×16 | 90 | 200-1100 | PP | |
| 0.5mm | 16×16 | 90 | 200-1100 | PP | |
| 0.56mm | 16×16 | 90 | 200-1100 | PP | |
| 0.69mm | 9×9 | 90 | 200-1040 | PP | |
| 0.71mm | 9×9 | 90 | 200-1040 | PP | |
| 0.76mm | 9×9 | 90 | 200-1040 | PP | |
| 0.79mm | 9×9 | 90 | 200-1040 | PP | |
| 0.81mm | 9×9 | 90 | 200-1040 | PP | |
| 0.86mm | 9×9 | 90 | 200-1020 | PP | |
| 1.16mm | 7×7 | 90 | 200-1020 | PP | |
| 0.5-0.58mm | 15×15 | 60 | 305-1040 | PA | |
| 0.69/0.86mm | 7×7 | 75 | 305-870 | PE |
Delivery
For small testing ordre We will sending the goods within 1-3 days.For bigger order will send the goods within 7-10 days
