PCB Screen printing mesh is used in the printed circuit board industry, which remains the most economical and efficient way to print PCB solder masks, legends and single layers.Screen printing mesh has been an important manufacturing process for the printed circuit industry for more than half a century.

Material Polyester; Nylon; Stainless steel
Specification 36T-165T
Mesh count 90-420 mesh
Woven type Plain woven
Color White ; Yellow
Width 127cm,145cm,165cm,2.50cm etc,customize
Production type  Roll cloth
The length of roll 30-80m; Can be customized length; Customize

    Advantages

  • Wide ranges of mesh counts for all requirements and accuracy of screen printing.
  • Ideal for pcb, membrane switches, touch screens and thickfilm screen printing.
  • Maximum efficient and reproducible for glass screen printing production.
  • High tensile strength and dimensional stability.
  • Extended lifetime and best ink release behavior.
  • Custom service for stencil makers and solar panel printers.
  • Reduce production costs and production loss for your glass printing.
  • Competitive prices help you occupy more markets in your local markets.

Although there are other technologies competing with it, screen printing is still the fastest and most economical method for large-scale production of printed circuits. Screen printing mesh is the most important part of printed circuit board. It is the key to control ink flow and printing thickness. In addition, the excellent combination of screen printing mesh and screen printing material is also high quality. An important factor in high-precision screen printing.

    TAXTILE SCREEN PRINTING MESH

    Model Specification
    (cm)
    Mesh count
    (mesh/inch)
    Thread Diameter(um) Mesh opening(um) Open Area(%) Thickness(um) Theoretic Ink Volume
    (cm3/m2)
    Request a Quote
    PET36/178 36 90 90 178 44 153 67
    PET39/183 39 99 64 183 54 109 59
    PET39/176 39 99 71 176 50 121 61
    PET43/145 43 110 80 145 41 136 56
    PET47/141 47 120 64 141 47 109 51
    PET100/51 100 254 40 51 30 85 26
    PET110/43 110 280 40 43 26 68 18
    PET120/41 120 305 35 41 23 60 14
    PET130/36 130 330 34 36 24 58 14
    PET140/32 140 350 34 32 19 58 11
    PET150/31 150 380 30 31 23 51 12
    PET165/25 165 420 31 25 16 53 8
            Advantages
    • Wide ranges of mesh counts for all requirements and accuracy of screen printing.
    • Ideal for pcb, membrane switches, touch screens and thickfilm screen printing.
    • Maximum efficient and reproducible for glass screen printing production.
    • High tensile strength and dimensional stability.
    • Extended lifetime and best ink release behavior.
    • Custom service for stencil makers and solar panel printers.
    • Reduce production costs and production loss for your glass printing.
    • Competitive prices help you occupy more markets in your local markets.

        Applications
        Printed Circuit Board (PCB)
    • Etch & plating resist
    • Solder mask
    • Legend marking
    • Carbon paste
    • Plug paste
    • Via hole filling
    • Surface mount adhesive
    • Heat sink paste

    Screen printing pcb

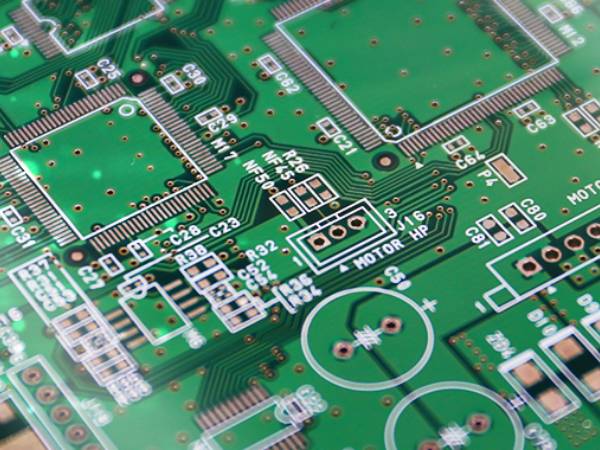

    Screen printed pcb




     Thickfilm applications

    • Thickfilm
    • RFID
    • Fuel cells
    • Batteries

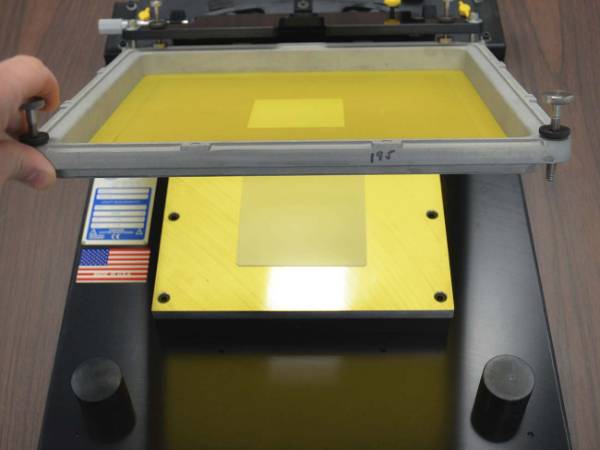

    Screen printing thickfilm

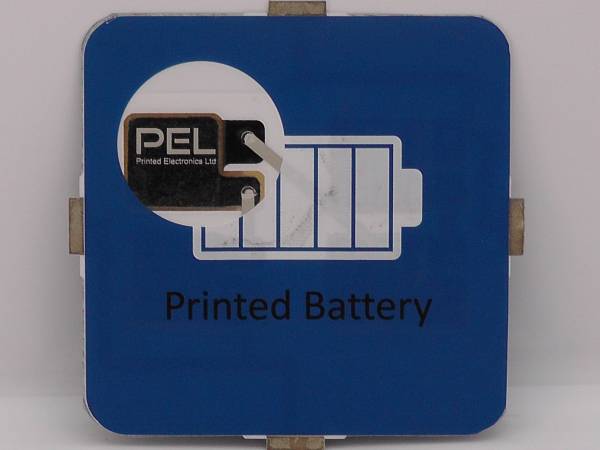

    Screen printed battery




    Dials

    • Solid color
    • Translucent ink
    • Metallic and fluorescent
    • Adhesive
    • Varnish

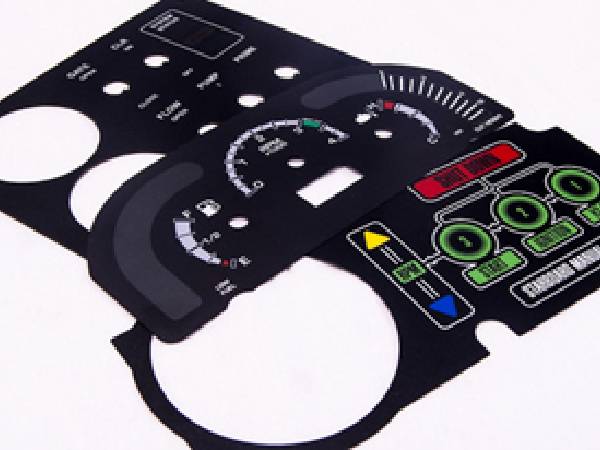

    Screen printing dials

    Screen printed dials




    Touch screens

    • Etch-resistant
    • Conductor paths
    • ITO insulation
    • Edge masking
    • Adhesive printing

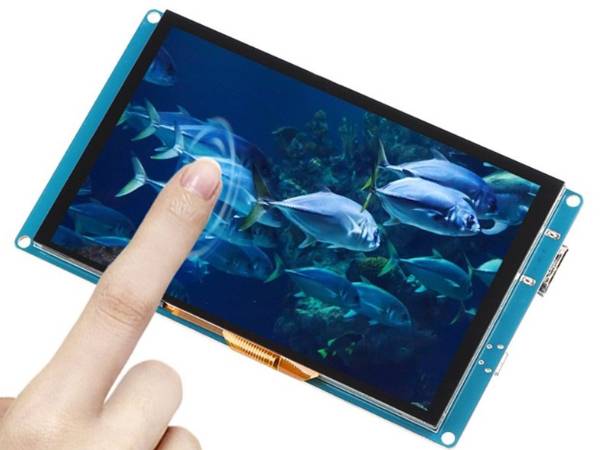

    Screen printing touch screens

    Screen printed touch screen
