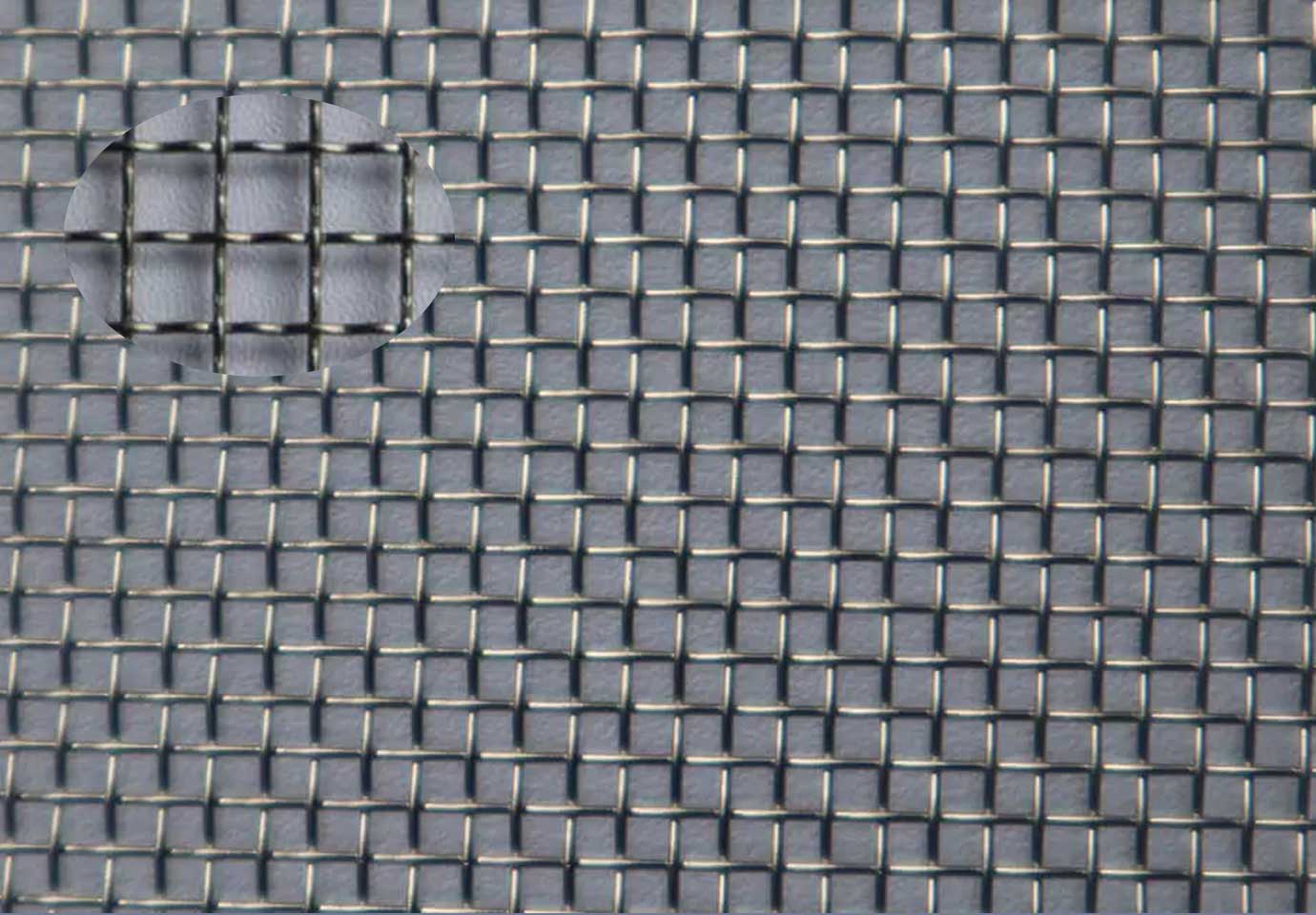

Stainless steel series screen milling mesh is specially used in food screening and flour milling industry in rough grinding, cleaning and fine grinding stage of auxiliary screening milling materials.

Material Stainless Steel wire 304 material.
Specification 10-160 Meshes;  2000-100um aperture.
Weaving type Plain weave
Width 1.02m, 1.22m; Can be customizd.
Product Form Screen Rolling.
Roll length 30m Per roll or can be customizd.

Main application :

  • Food processing screening;
  • High square flat screen in flour mill;
  • Single and double bin flat screen plan sifter;
  • Cleaner screen; Centrifuge screen;
  • Vibration screen; etc.

Advantages:

  • Uniform and stable mesh;
  • Smooth mesh surface;
  • High hardness;
  • Strong corrosion resistance, not easy to deform; durable with long working life.

XXX SERIES SCREENING MILLING MESH

Type Mesh Opening (um) Thread Dia. (um) Mesh Count (N / cm) Mesh Count (N / inch) Open Area(%) Request a Quote
2000 / 74 2000 320 4.3 11 74
1800 / 72 1800 320 4.7 12 72
1600 / 77 1600 220 5.5 14 77
1400 / 74 1400 220 6.2 15.7 74.5
1250 / 72 1250 220 6.8 17.3 72
1180 / 71 1180 220 7.1 18.1 71
1120 / 69 1120 220 7.5 19 69.4
1060 / 68 1060 220 7.8 19.8 68.6
1000 / 67 1000 220 8.3 21 67
950 / 68 950 200 8.7 22 68.2
900 / 67 900 200 9.1 23 67
850 / 65 850 200 9.4 24 65.5
800 / 64 800 200 9.8 25 64
750 / 65 750 180 10.6 27 65
710 / 64 710 180 11.4 29 64
670 / 65 670 160 12.2 31 65.2
630 / 64 630 160 12.6 32 64
600 / 62 600 160 13 33 62.3
560 / 60 560 160 13.8 35 60
530 / 59 530 160 14.6 37 59
500 / 57 500 160 15 38 57.6
475 / 56 475 160 15.7 40 56
450 / 57 450 140 16.9 43 57.6
425 / 56 425 140 17.7 45 56.6
400 / 54 400 140 18.5 47 54
375 / 53 375 140 19.3 49 53
355 / 51 355 140 20.1 51 51
335 / 49 335 140 20.9 53 49.7
315 / 54 315 112 23.2 59 54
300 / 53 300 112 24.4 62 53
280 / 51 280 112 25.6 65 51
265 / 53 265 100 27.6 70 52.8
250 / 53 250 100 28.7 73 53
245 / 62 245 65 32.3 82 62
236 / 51 236 100 29.9 76 51
212 / 49 212 90 33.1 84 49
180 / 45 180 90 37 94 45
160 / 46 160 75 41 105 46
140 / 46 140 67 47.2 120 46
132 / 49 132 65 53.1 135 49
125 / 48 125 56 55.1 140 48
106 / 36 106 50 64.2 163 36
