polypropylene
filter mesh
Download
Technical
polypropylene
filter mesh
filter mesh
Polypropylene mesh is often used for gas and liquid filtration; Such as automobile oil filtration; Chemical test machine filtration and so on.
| Name | Polypropylene monofilament mesh |
| Material | PP |
| Specification | 20-60 mesh; Customized |
| Weave Type | Plain; Twill: Dutch weave |
| Width | 100cm, 127cm;Or customized |
| Product Form | Rolls |
| Roll Length | 30-70m/Roll; Fixed Length; Or customized |
| Color | White; black; Or customized |
Advantages:
- Acid and alkali resistance;
- Good corrosion resistance;
- Can replace polyester screen;
- Nylon screen
Usage:
- Mainly used as sheath and support outside filter element;
- Chemical reagent filtration, etc.

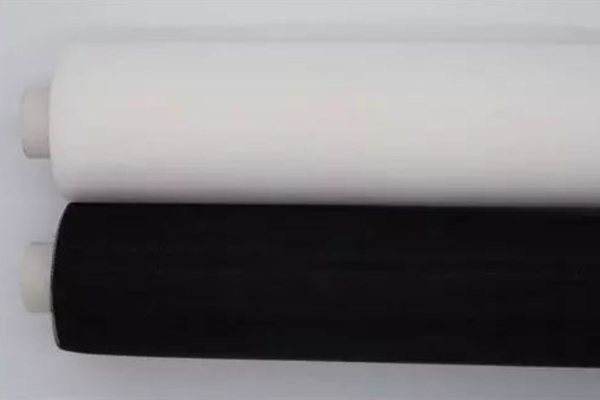

Polypropylene Filter Mesh
| Model | Mesh Count (cm) | Mesh Count (inch) | Thread Dia (μm) | Mesh Opening (μm) | Thickness (um) | Weight (g/m2) | Request a Quote |
|---|---|---|---|---|---|---|---|
| PP-B | 8 | 20 | 250 | 1000 | 500 | 127 | |
| PP-W | 12 | 30 | 250 | 583 | 500 | 156 | |
| PP-W | 16 | 40 | 230 | 395 | 391 | 212 | |
| PP-W | 20 | 50 | 200 | 300 | 400 | 166 |
Delivery
For small testing ordre We will sending the goods within 1-3 days.For bigger order will send the goods within 7-10 days
