nylon Filter Mesh

nylon Filter Mesh

Filter Mesh

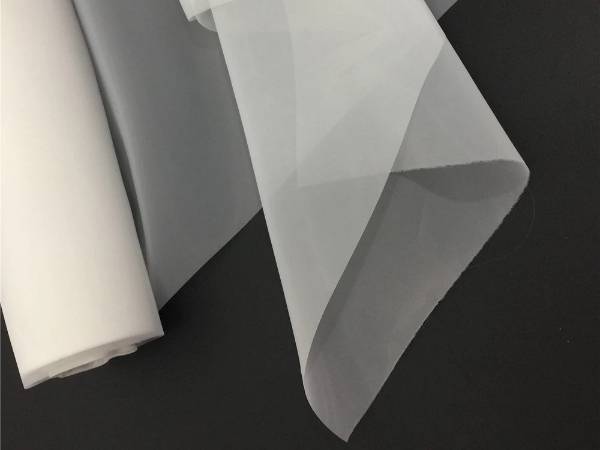

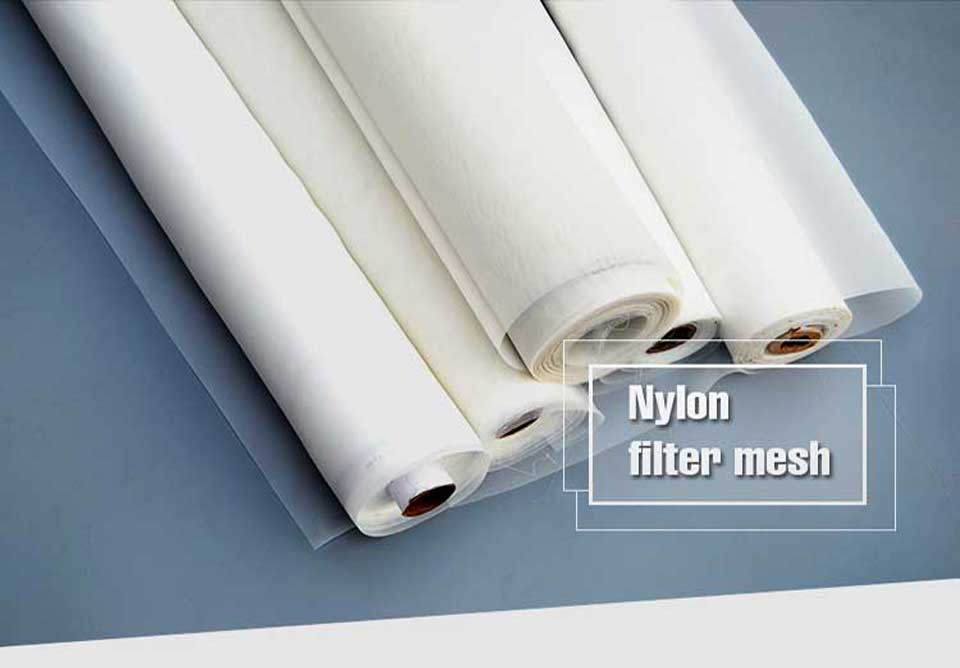

Macrokun’s Nylon Filter Mesh is made of monofilament PA6 or PA66 yarn/thread which is ideal for straining, sieving or filtering most liquids, powders or sludges; after weaving, Macrokun’s fabrics undergo a finishing process to add the properties required for specific applications. During the finishing process, the fabric is scoured to remove any foreign substances and the yarns are then stabilized within the weave in order to eliminate shrinkage by a process known as ‘heat setting’.

Advantages are:

✔ They can be woven with great precision to give exact and regular apertures so the mesh openings are uniform
✔  Very smooth surface so that the filtered particles will easily separate from it
✔  They have great strength and elasticity Wear-resistant, Alkali-resistant
✔  Easy to clean and light in texture

Nylon Filter Mesh Application:

  • 1. Collection of Cells and Algae
  • 2. Particle Analysis
  • 3. Large Particulate Filtration
  • 4. Background Filter for automated particle imaging system
  • 5. Pre-filtration of Solvents
  • 6. Paint Monitoring
  • 7. Medical Filtration (Blood Filtration)

For example : Mainly used in liquid filtration, powder filtration, petroleum, mining, pharmaceutical, chemical plant, paint, ink, oil product filtration, alcohol filtration, paint filtration, dye filtration, resin, monosodium glutamate, aquaculture, impurity filtration, food and other industrial screening and filtering.

Stocked Product Specifications ready for same day despatch

Materials: PA6, PA66
Color: Natural or white, or customized
Weave Type: Plain weave, Twill weave, Dutch weave
Width: 100cm, 127cm, 183cm, or customized
Roll Length: 30-100m/Roll, Fixed Length, or customized
Category:
For multiple roll orders please contact [email protected] or 13803219803 as order is too large for courier.

Contact Us

NYLON FILTER MESH

Model Mesh Count/CM Mesh Count/Inch Thread Dia (μm) Mesh Opening (μm) Thickness (μm) Weight (g/m2) Request a Quote
NL4/1950 4 10 550 1950 1100 307
NL5/1500 5 13 500 1500 1000 318
NL6/1267 6 15 400 1267 800 244
NL7/1079 7 18 350 1079 700 218
NL8/900 8 20 350 900 700 249
NL9/861 9 23 250 861 500 143
NL9/811 9 23 300 811 600 206
NL10/750 10 25 250 750 500 159
NL10/700 10 25 300 700 600 229
NL12/583 12 30 250 583 500 191
NL12/533 12 30 300 533 600 274
NL14/514 14 36 200 514 340 142
NL16/425 16 40 200 425 340 160
NL20/350 20 50 150 350 255 113
NL20/300 20 50 200 300 340 200
NL24/267 24 60 150 267 255 135
NL28/237 28 70 120 237 204 101
NL30/213 30 76 120 213 204 110
NL32/213 32 80 100 213 170 80
NL36/178 36 90 100 178 170 90
NL40/150 40 100 100 150 170 100
NL43/153 43 110 80 153 136 70
NL48/128 48 120 80 128 136 77
NL56/119 56 140 60 119 102 50
NL64/96 64 160 60 96 102 58
NL72/89 72 180 50 89 85 45
NL80/75 80 200 50 75 85 50
NL100/57 100 250 43 57 73 46
NL110/48 110 280 43 48 73 52
NL120/48 120 300 35 48 60 37
NL120/40 120 300 43 40 73 55
NL130/42 130 330 35 42 60 40
NL130/34 130 330 43 34 73 61
NL140/36 140 350 35 36 60 43
NL157/25 157 400 43 25 73 74
NL180/20 180 450 39 20 66 68
NL200/15 200 500 39 15 66 76
NL220/10 220 550 39 10 66 84
NL240/5 240 600 39 5 66 91

Delivery
For small testing ordre We will sending the goods within 1-3 days.For bigger order will send the goods within 7-10 days

Print Table

Advantages

  • High mechanical strength and flexibility.
  • Fatigue resistance.

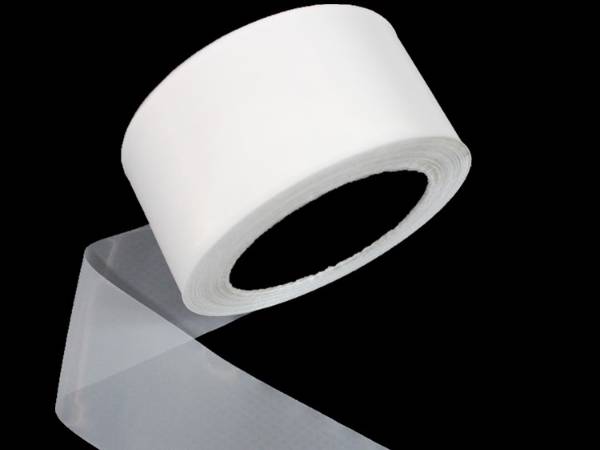

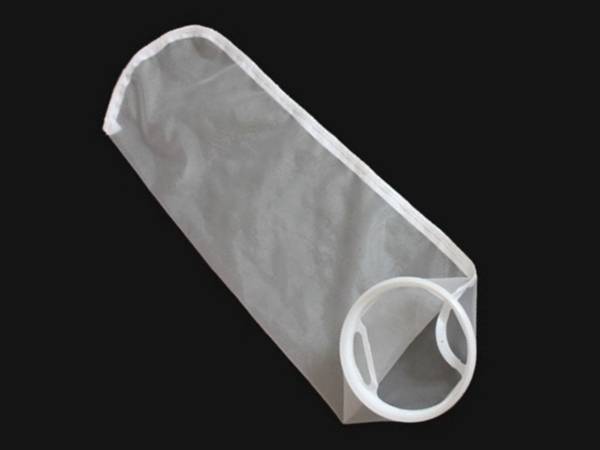

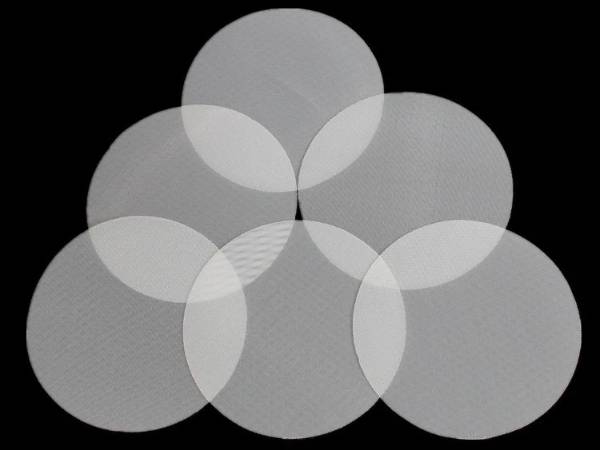

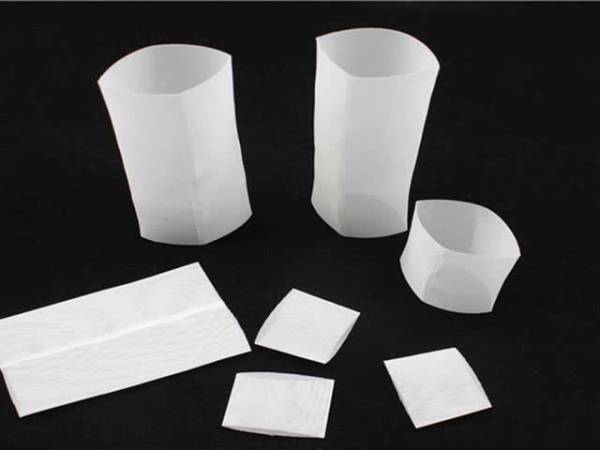

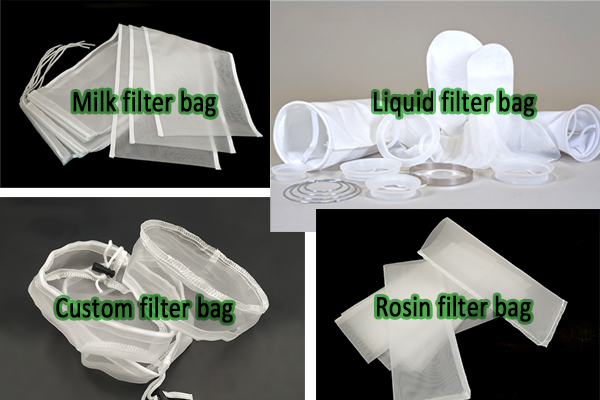

  • Available in disc, tube, bag and special shapes.
  • Abrasive and corrosive resistance.
  • Heat-melting resistance.
  • Wide ranges of mesh counts for choice.
  • Available for water, air, oil, paint, powder filtration.
  • Compliance with FDA food grade.

Applications
  • Air purifier filter
  • Air conditioner filter
  • Circulating/waster water filter
  • Blood filter transfusion
  • Wound care
  • Injector filtration
  • Coffee filter
  • Biopsy bag
  • Milling mesh
  • Test/sample sieve

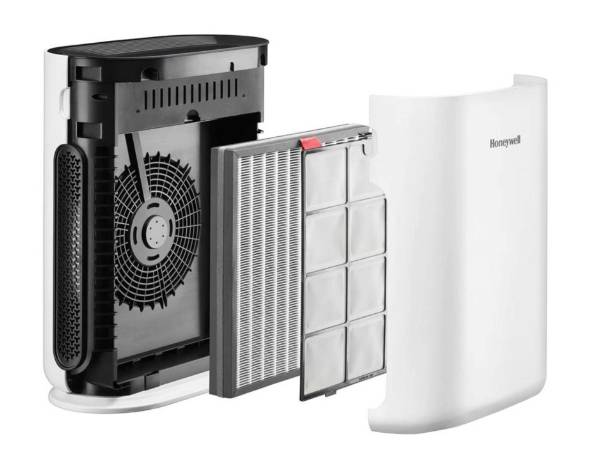

Structures of air purifier and we can see the pre filter is made of nylon filter mesh.

Air purifier

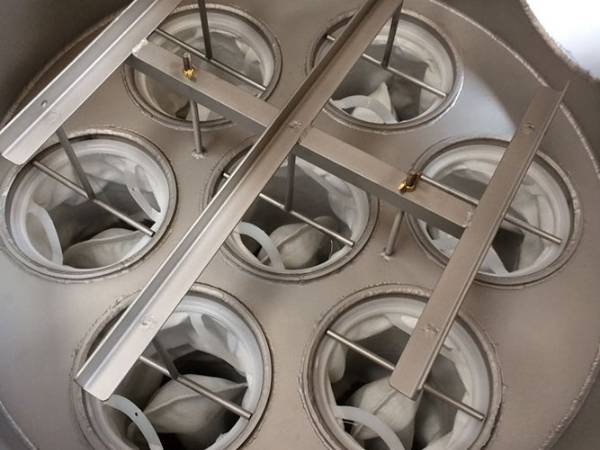

Multi bag filter housing and several bag filters in it.

Water purification

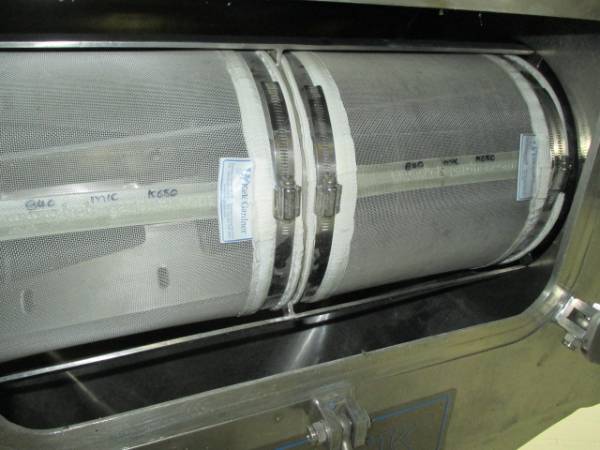

A centrifugal sifters with basket type nylon filter mesh.

Centrifugal sifters

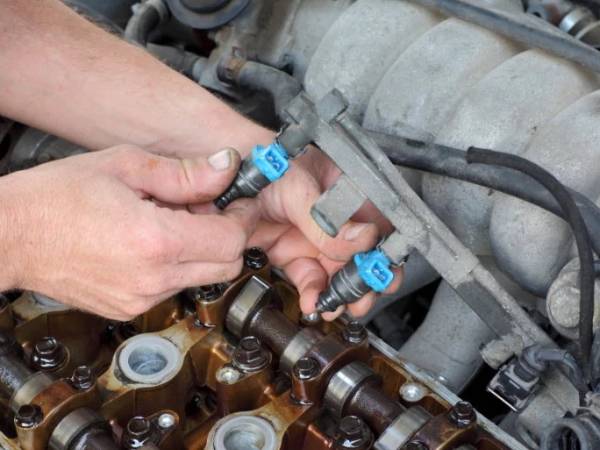

A man is inspecting the injector of car.

Injector filter

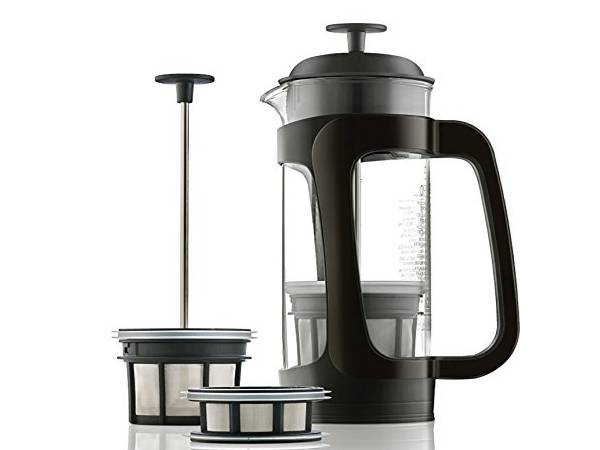

A France coffee cup and two coffee filter on white background.

Coffee filter

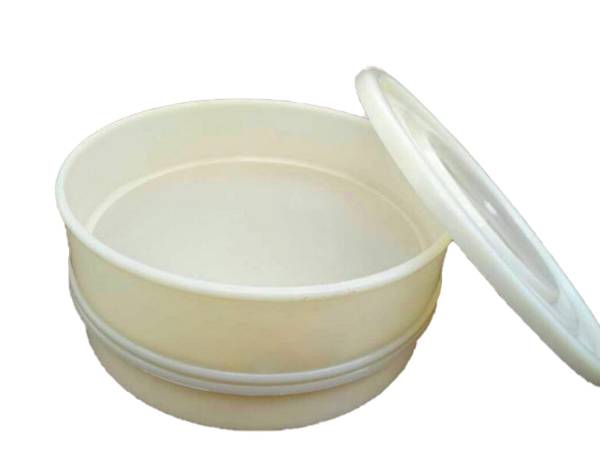

A layer of nylon test sieve with cover on black background.

Test sieve

A doctor is putting biopsy into biopsy bag.

Biopsy bage

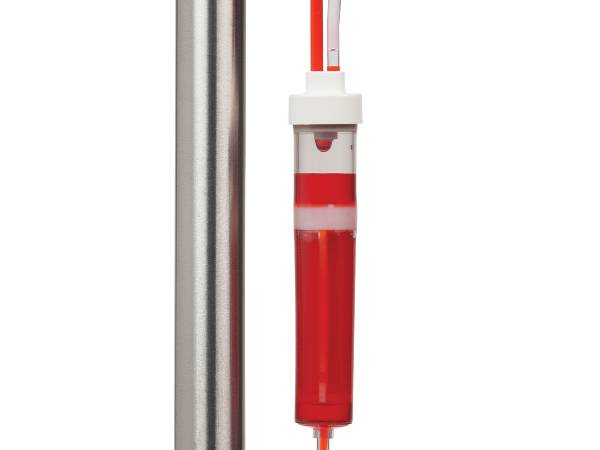

A blood transfusion tubing filter is transfusing blood.

Blood tubing filter


Dimensions

  • Material: monofilament nylon wire PA6 or PA66.
  • Weaving method: plain weave or twill weave.
  • Mesh size: 5 mesh to 236 mesh.
  • Width: 115/127/145/165 cm and maximum is 365 cm.
  • Length: 30–100 m and customized lengths.
Nylon Micron Filter Mesh Technical data
Item Mesh Count Thread Diameter Mesh Opening Open Area Fabric Thickness Weight
mesh/cm mesh/inch μm μm % μm g/m2
NFM12-550 5 12 550 1500 56 850 271
NFM16-400 6 16 400 1267 58 780 208
NFM18-350 7 18 350 1079 57 675 186
NFM20-350 8 20 350 900 52 685 212
NFM24-250 9 24 250 800 58 455 145
NFM25-250 10 25 250 750 52 460 165
NFM30-300 12 30 300 533 41 585 234
NFM30-250 12 30 250 600 50 470 162
NFM35-250 14 35 250 464 34 595 273
NFM40-250 16 40 250 375 36 485 217
NFM40-200 16 40 200 400 44 370 139
NFM50-200 20 50 200 300 36 385 173
NFM50-150 20 50 150 350 49 375 98
NFM60-150 24 60 150 250 40 385 117
NFM70-150 28 70 150 207 44 215 87
NFM76-120 30 76 120 200 39 225 94
NFM80-100 32 80 100 215 47 165 69
NFM90-100 36 90 100 180 42 178 78
NFM100-100 40 100 100 150 36 190 87
NFM110-80 43 110 80 152 43 135 60
NFM120-80 48 120 80 130 38 145 67
NFM140-60 56 140 60 120 44 85 44
NFM150-60 59 150 60 110 42 98 46
NFM160-60 64 160 60 100 37 105 50
NFM180-50 72 180 50 90 41 82 39
NFM200-50 80 200 50 75 36 90 43
NFM230-40 90 230 40 70 40 65 30
NFM250-40 100 250 40 60 36 65 35
NFM280-40 110 280 40 50 30 67 38
NFM305-40 120 305 40 43 25 70 42
NFM330-40 130 330 40 37 23 75 45
NFM355-37 140 355 37 34 20 68 43
NFM400-39 157 400 39 25 15.4 74 52
NFM157-TW 157 400 39 25 15.7 74 52
NFM169-TW 169 430 39 20 11.4 74 56
NFM185-TW 185 470 39 15 7.7 74 61
NFM208-TW 208 530 39 10 4.32 74 69
NFM220-TW 220 560 39 7 2.37 74 73
NFM236-TW 236 600 39 3.5 0.7 74 78
