Widely used in liquid filtration, especially for high-precision products; Such as paint; Water and so on.

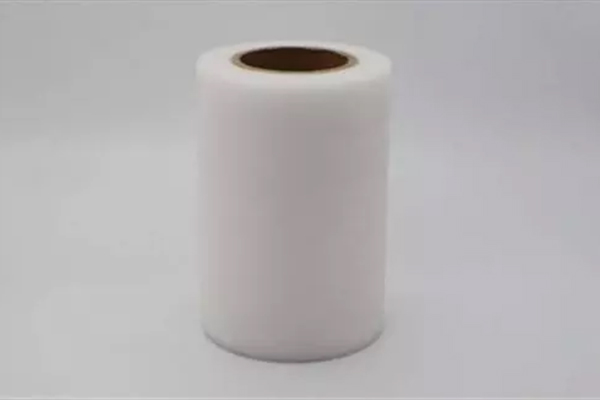

Product Name Micron filter mesh
Materials PA6, PA66, PET
Specification JPP120-JPP240 (50UM-5UM)
Weave Type Plain; Twill; Dutch weave
Width 100cm; 127cm; 183cm; Or customized
Product Form Rolls
Roll Length 30-100m/Roll;  Fixed Length; Or customized
Color Natural or white; Or customized

Advantages:The mesh openings are uniform; Stable; Elastic; Wear-resistant; Smooth; Slkali-resistant; Easy to clean and light in texture.
Usage:Mainly used in liquid filtration; Powder filtration; Petroleum, mining; Pharmaceutical; Chemical plant; Paint, ink; Oil product filtration; Alcohol filtration; Paint filtration; Dye filtration;  Resin; Monosodium glutamate; Aquaculture; Impurity filtration; Food and other industrial screening and filtering.

Get Best Quote

Welcome ! We are professional manufacturer and supplier of Screen Printing ,Filter Bag and Filter Mesh. If you want to buy our products, You Can Contact With Us, Consulting Online Or Leave Messages.


Model Mesh count/CM Mesh count/Inch Thread dia (μm) Mesh opening (μm) Thickness (μm) Weight (g/m2) Request a Quote
NL120/48 120 300 35 48 60 37
NL120/40 120 300 43 40 73 55
NL130/42 130 330 35 42 60 40
NL130/34 130 330 43 34 73 61
NL140/36 140 350 35 36 60 43
NL157/25 157 400 43 25 73 74
NL180/20 180 450 39 20 66 68
NL200/15 200 500 39 15 66 76
NL220/10 220 550 39 10 66 84
NL240/5 240 600 39 5 66 91
