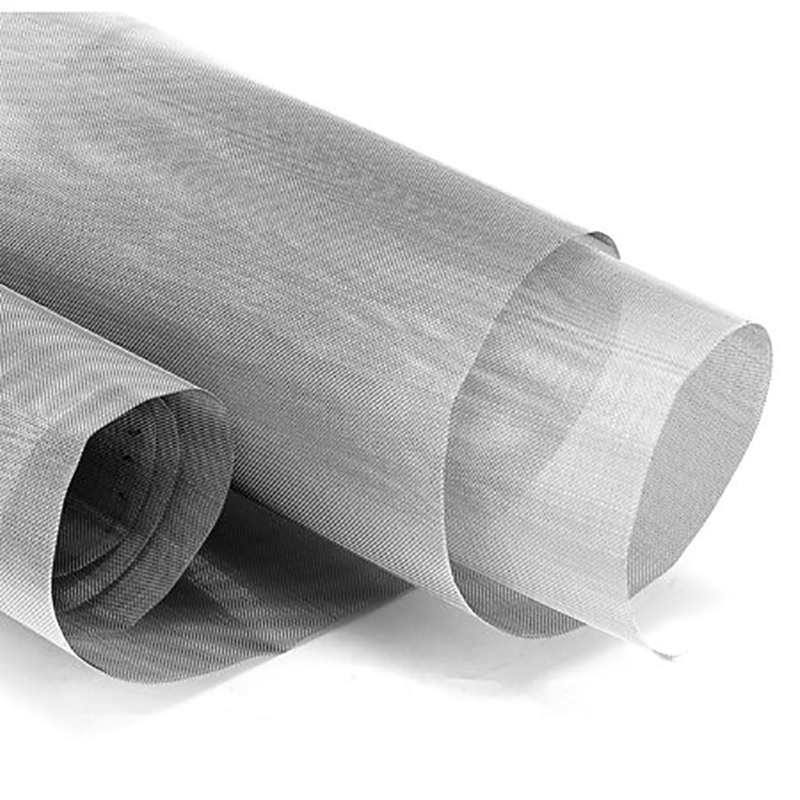

The plain weave stainless steel filter has the characteristics of stable and fine filtration performance. Various types of stainless steel mesh products can be designed and manufactured according to user needs.
| Name | Stainless steel wire mesh; Plain weave stainless steel wire mesh; |
| Material | SUS302, 304, 304L, 316, 316L, etc. |
| Specifications | 1×1-635×635 mesh (1.02-23mm) |
| Width | 1 meter; 1.22 meters; Can be customized |
| Roll length | 30 meters; Can be customized |
| Weaving method | Plain weave |

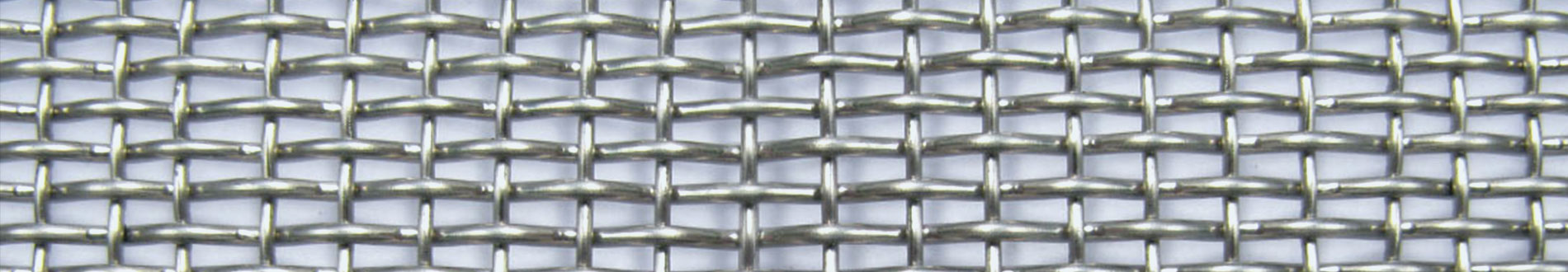

Plain Weave Stainless Steel Wire Mesh Advantage:
The filtering effect is very stable: high-quality raw materials are selected in the process of production, so that it is not easily deformed during use;
High strength: high-quality materials have high pressure resistance and can withstand large working strength;
The cleaning is simple: the single layer of filter material has the characteristics of simple cleaning, especially suitable for backwashing;
With high temperature resistance: can withstand high temperatures of about 480°C;
With corrosion resistance: stainless steel raw materials themselves have high corrosion resistance and wear resistance;
Easy to process: high-quality materials, whether it is cutting, bending, stretching, welding and other procedures can be done very well.
Plain Weave Stainless Steel Wire Mesh Use:
For screening and filtration under acid and alkali conditions; The petroleum industry is used as a mud net; A chemical fiber industry as a sieve screen; And an electroplating industry as a pickling net; Used in the industrial and construction industries to screen sand and filter liquids and gases.
| Mesh/Inch | Wire Diameter | Aperture | Open Area % | Weight(LB) /100 Square Foot | Request a Quote | ||
|---|---|---|---|---|---|---|---|
| Inch | MM | Inch | MM | ||||
| 1 * 1 | 1.08 | 2.03 | 1.92 | 23.37 | 84.6 | 41.1 | |
| 2 * 2 | 1.063 | 1.6 | 1.437 | 11.1 | 76.4 | 51.2 | |
| 3 * 3 | 1.054 | 1.37 | 1.279 | 7.09 | 70.1 | 56.7 | |
| 4 * 4 | 1.063 | 1.6 | 1.187 | 4.75 | 56 | 104.8 | |
| 4 * 4 | 1.047 | 1.19 | 1.203 | 5.16 | 65.9 | 57.6 | |
| 5 * 5 | 1.041 | 1.04 | 1.159 | 4.04 | 63.2 | 54.9 | |
| 6 * 6 | 1.035 | 1.89 | 1.132 | 3.35 | 62.7 | 48.1 | |
| 8 * 8 | 1.028 | 1.71 | 1.097 | 2.46 | 60.2 | 41.1 | |
| 10 * 10 | 1.025 | 1.64 | 1.075 | 1.91 | 56.3 | 41.2 | |
| 10 * 10 | 1.02 | 1.51 | 1.08 | 2.03 | 64 | 26.1 | |
| 12 * 12 | 1.023 | 1.584 | 1.06 | 1.52 | 51.8 | 42.2 | |
| 12 * 12 | 1.02 | 1.508 | 1.063 | 1.6 | 57.2 | 31.6 | |
| 14 * 14 | 1.023 | 1.584 | 1.048 | 1.22 | 45.2 | 49.8 | |
| 14 * 14 | 1.02 | 1.508 | 1.051 | 1.3 | 51 | 37.2 | |
| 16 * 16 | 1.018 | 1.457 | 1.0445 | 1.13 | 50.7 | 34.5 | |
| 18 * 18 | 1.017 | 1.432 | 1.0386 | 1.98 | 48.3 | 34.8 | |
| 20 * 20 | 1.02 | 1.508 | 1.03 | 1.76 | 36 | 55.2 | |
| 20 * 20 | 1.016 | 1.406 | 1.034 | 1.86 | 46.2 | 34.4 | |
| 24 * 24 | 1.014 | 1.356 | 1.0277 | 1.7 | 44.2 | 31.8 | |
| 30 * 30 | 1.013 | 1.33 | 1.0203 | 1.52 | 37.1 | 34.8 | |
| 30 * 30 | 1.012 | 1.305 | 1.0213 | 1.54 | 40.8 | 29.4 | |
| 30 * 30 | 1.009 | 1.229 | 1.0243 | 1.62 | 53.1 | 16.1 | |
| 35 * 35 | 1.011 | 1.279 | 1.0176 | 1.45 | 37.9 | 16.1 | |
| 40 * 40 | 1.01 | 1.254 | 1.015 | 1.38 | 36 | 27.6 | |
| 50 * 50 | 1.009 | 1.229 | 1.011 | 1.28 | 30.3 | 28.4 | |
| 50 * 50 | 1.008 | 1.203 | 1.012 | 1.31 | 36 | 22.1 | |
| 60 * 60 | 1.0075 | 1.191 | 1.0092 | 1.23 | 30.5 | 23.7 | |
| 60 * 60 | 1.007 | 1.178 | 1.0097 | 1.25 | 33.9 | 20.4 | |
| 70 * 70 | 1.0065 | 1.165 | 1.0078 | 1.2 | 29.8 | 20.8 | |
| 80 * 80 | 1.0065 | 1.165 | 1.006 | 1.15 | 23 | 23.2 | |
| 80 * 80 | 1.0055 | 1.14 | 1.007 | 1.18 | 31.4 | 16.9 | |
| 90 * 90 | 1.005 | 1.127 | 1.0061 | 1.16 | 30.1 | 15.8 | |
| 100 * 100 | 1.0045 | 1.114 | 1.0055 | 1.14 | 30.3 | 14.2 | |
| 100 * 100 | 1.004 | 1.102 | 1.006 | 1.15 | 36 | 11 | |
| 100 * 100 | 1.0035 | 1.089 | 1.0065 | 1.17 | 42.3 | 8.3 | |
| 110 * 110 | 1.004 | 1.1016 | 1.0051 | 1.1295 | 30.7 | 12.4 | |
| 120 * 120 | 1.0037 | 1.094 | 1.0064 | 1.1168 | 30.7 | 11.6 | |
| 150 * 150 | 1.0026 | 1.066 | 1.0041 | 1.1041 | 37.4 | 7.1 | |
| 160 * 160 | 1.0025 | 1.0635 | 1.0038 | 1.0965 | 36.4 | 5.94 | |
| 180 * 180 | 1.0023 | 1.0584 | 1.0033 | 1.0838 | 34.7 | 6.7 | |
| 200 * 200 | 1.0021 | 1.0533 | 1.0029 | 1.0737 | 33.6 | 6.2 | |
| 250 * 250 | 1.0016 | 1.0406 | 1.0024 | 1.061 | 36 | 4.4 | |
| 270 * 270 | 1.0016 | 1.0406 | 1.0021 | 1.0533 | 32.2 | 4.7 | |
| 300 * 300 | 1.0051 | 1.0381 | 1.0018 | 1.0457 | 29.7 | 3.04 | |
| 325 * 325 | 1.0014 | 1.0356 | 1.0017 | 1.0432 | 30 | 4.4 | |
| 400 * 400 | 1.001 | 1.0254 | 1.0015 | 1.37 | 36 | 3.3 | |
| 500 * 500 | 1.001 | 1.0254 | 1.001 | 1.0254 | 25 | 3.8 | |
| 635 * 635 | 1.0008 | 1.0203 | 1.0008 | 1.0203 | 25 | 2.63 | |
MACROKUN has established long-term and stable cooperative relations with many transportation companies such as China Post, DHL, FEDEX, USPS, UPS, etc. Of course, MACROKUN can also provide air and sea transportation. The powerful logistics system enables all MACROKUN'S Printing Mesh, Filter Mesh and Filter Bags and so on to be easily and efficiently transported to any place. For quotes and inquiries, please email our sales team.
