Nylon 66 Filter Mesh is a precision-woven filtration fabric manufactured from polyamide 66 (PA66) monofilament yarns. Compared with standard Nylon 6 mesh, Nylon 66 offers superior mechanical strength, higher temperature resistance, better abrasion resistance, and improved dimensional stability, making it a preferred choice for demanding industrial filtration applications.
Nylon 66 filter mesh is widely used in liquid filtration, air filtration, pharmaceutical processing, food and beverage production, chemical filtration, water treatment, and industrial dust collection systems.
Nylon 66 possesses a more crystalline molecular structure than Nylon 6, resulting in:
This allows Nylon 66 filter mesh to maintain stable filtration performance even in continuous industrial operations.
The mesh demonstrates outstanding abrasion resistance, making it suitable for:
Its long service life helps reduce maintenance and replacement costs.
Typical operating temperatures:
| Property | Nylon 66 |
|---|---|
| Continuous Working Temperature | Up to 150°C |
| Melting Point | Approximately 255-265°C |
Compared with Nylon 6, Nylon 66 performs better in high-temperature filtration environments.
Nylon 66 filter mesh offers resistance to:
However, strong acids and oxidizing agents should be evaluated before use.
Available micron ratings typically range from:
The uniform mesh opening ensures consistent particle retention and reliable filtration efficiency.
| Parameter | Typical Range |
|---|---|
| Material | PA66 (Nylon 66) |
| Weave Type | Plain Weave |
| Mesh Count | 10–500 Mesh |
| Micron Rating | 5–2000 μm |
| Width | 100cm–365cm |
| Color | White, Yellow, Black |
| Thickness | Customized |
| FDA Food Grade Option | Available |
| Roll Length | Customized |

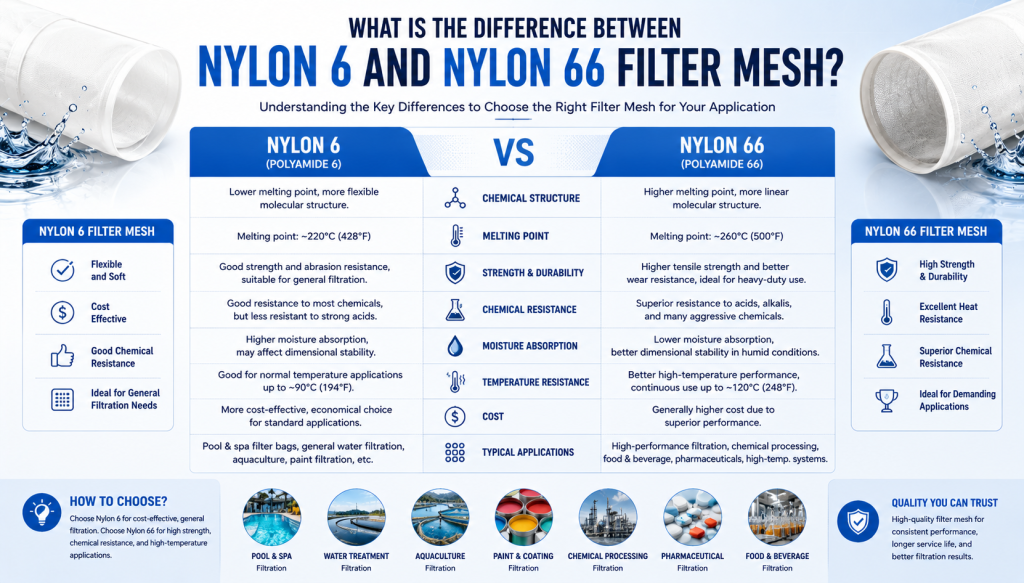

| Property | Nylon 66 | Nylon 6 |
|---|---|---|
| Tensile Strength | Higher | Good |
| Abrasion Resistance | Better | Good |
| Melting Point | 255-265°C | 215-220°C |
| Dimensional Stability | Better | Moderate |
| Water Absorption | Lower | Higher |
| Cost | Higher | More Economical |
| Service Life | Longer | Standard |
Choose Nylon 66 Filter Mesh if you need:
Choose Nylon 6 if:
Used for:
Suitable for filtering:
Food-grade Nylon 66 mesh complies with strict hygiene requirements.
Applications include:
Commonly used for:
Nylon 66 filter mesh performs well in:
Common specifications include:
| Mesh Count | Approx. Opening (μm) |
|---|---|
| 25 Mesh | 707 μm |
| 40 Mesh | 425 μm |
| 60 Mesh | 250 μm |
| 80 Mesh | 180 μm |
| 100 Mesh | 150 μm |
| 120 Mesh | 125 μm |
| 150 Mesh | 100 μm |
| 200 Mesh | 75 μm |
| 300 Mesh | 50 μm |
Custom mesh counts and micron openings can be manufactured according to specific filtration requirements.
✅ Higher filtration stability
✅ Longer service life
✅ Better resistance to wear and tear
✅ Excellent dimensional accuracy
✅ High-temperature capability
✅ Suitable for demanding industrial environments
✅ Available in customized rolls, discs, tubes, ribbons, and filter components
When choosing a Nylon 66 filter mesh, consider:
A proper selection ensures optimal filtration efficiency and longer filter life.
Nylon 66 Filter Mesh is a premium filtration material designed for industries requiring high strength, excellent abrasion resistance, and reliable performance under elevated temperatures. Compared with conventional Nylon 6 mesh, Nylon 66 offers enhanced durability and dimensional stability, making it an ideal choice for water treatment, pharmaceuticals, food processing, chemical manufacturing, and industrial filtration systems.
For applications where filtration reliability, long service life, and high-performance operation are critical, Nylon 66 Filter Mesh remains one of the most trusted and cost-effective solutions available.
