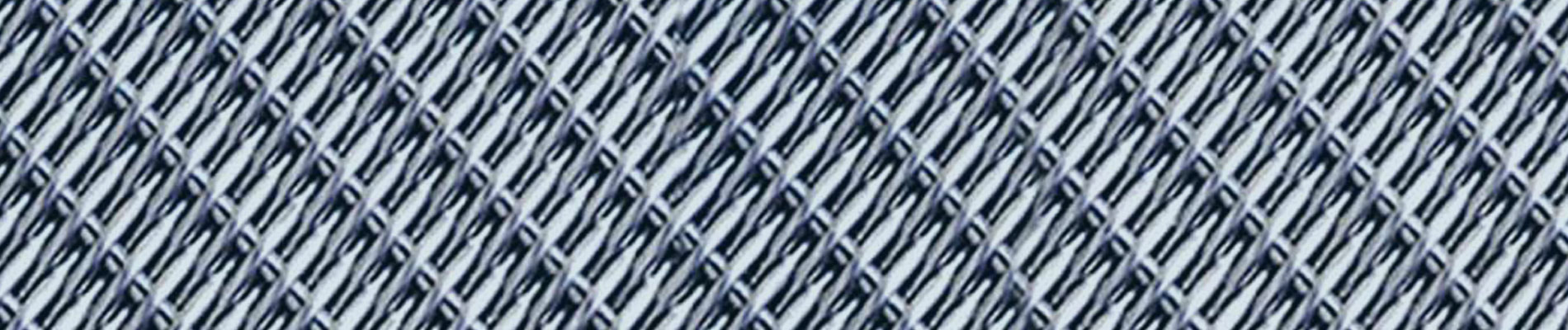

dutch weave Stainless Steel Wire Mesh

dutch weave Stainless Steel Wire Mesh

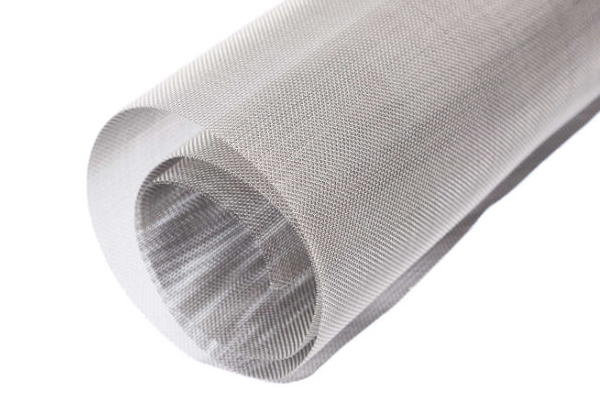

Stainless Steel Wire Mesh

The stainless steel filter has the characteristics of stable and fine filtration performance. Various types of stainless steel mesh products can be designed and manufactured according to user needs.

Name Stainless steel wire mesh; Plain weave stainless steel wire mesh
Material  SUS302, 304, 304L, 316, 316L, etc.
Specifications  32#-650#
Width  1 meter; 1.5 meters;  Can be customized
Roll length  30 meters; Can be customized
Weaving method  Plain dutch weave; Twill dutch weave

Performance: Acid resistance; Alkali resistance; High temperature resistance; Strong tensile and wear resistance; Stable filtration performance; Fineness; High precision and special filtration performance.

Features: The main feature is that there is a large contrast between the warp direction and the weft wire diameter and density. Therefore, the thickness and filtration precision and service life of the net are obviously improved compared with the square hole net. The filtering precision is not realized by the square hole mesh. .

Uses: The products are mainly used for gas; Liquid filtration and other medium separation; Widely used in precision pressure filters; Fuel filtration; Vacuum filters; Filter materials; Aerospace; Oil refining; Medicine; Sugar; Petroleum; Chemical; Chemical fiber; Rubber; Tire manufacturing; Metallurgy; Food; Health research and other industries.

Category:
For multiple roll orders please contact [email protected] or 13803219803 as order is too large for courier.

Contact Us

CRIMPED WIRE MESH

No. Mesh Count Thread Diameter / mm Mesh Opening / μm Request a Quote
32 # 8 x 62 0.63mm x 0.45mm 300
40 # 10 x 79 0.50mm x 0.355mm 250
48 # 12 x 64 0.58mm x 0.40mm 280
55 # 14 x 88 0.40mm x 0.30mm 180
76 # 19 x 140 0.315mm x 0.20mm 140
80 # 20 x 300 0.35mm x 0.20mm
95 # 24 x 110 0.355mm x 0.25mm 120
100 # 25 x 140 0.28mm x 0.20mm 100
120 # 30 x 150 0.25mm x 0.18mm 80
140 # 35 x 175 0.224mm x 0.16mm 71
160 # 40 x 200 0.20mm x 0.14mm 60
180 # 45 x 250 0.16mm x 0.112mm 56
200 # 50 x 250 0.14mm x 0.11mm 53
220 # 55.5 x 280 0.14mm x 0.10mm 50
240 # 65 x 330 0.11mm x 0.08mm 36
280 #(1) 70 x 350 0.11mm x 0.08mm 35
280 #(2) 70 x 385 0.11mm x 0.07mm 32
300 # 78 x 700 0.11mm x 0.08mm 30
315 #(1) 80 x 400 0.10mm x 0.065mm 40
315 #(2) 80 x 600 0.10mm x 0.06mm
315 #(3) 80 x 800 0.15mm x 0.04mm
320 # 81 x 780 0.10mm x 0.07mm 30
354 # 90 x 550 0.12mm x 0.05
360 # 91 x 787 0.10mm x 0.07 25
400 # 101 x 900 0.10mm x 0.063 20
472 # 120 x 400 0.10mm x 0.075
500 # 127 x 1100 0.07mm x 0.05 17
630 # 160 x 1500 0.063mm x 0.04 15
650 #(1) 165 x 400 0.071mm x 0.06
650 #(2) 165 x 600 0.071mm x 0.05
650 #(3) 165 x 800 0.071mm x 0.05 25
650 #(4) 165 x 1100 0.071mm x 0.045
650 #(5) 165 x 1400 0.071mm x 0.04 16

Delivery
For small testing ordre We will sending the goods within 1-3 days.For bigger order will send the goods within 7-10 days
