Milling Mesh

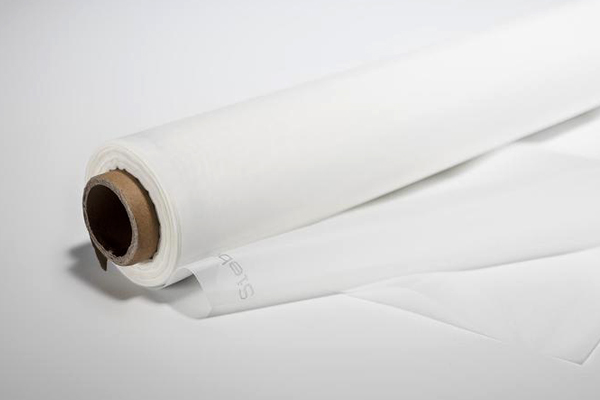

MF Series Screening milling Mesh is a kind of auxiliary screening material specially used in food screening and flour milling industry in the powder cleaning and fine grinding stage.

Material Food grade nylon PA6 (i.e. nylon, polyamide) or polyester (i.e. polyester, PET).
Specification 3MF-16MF, 300-80 um Aperture.
Weaving Type Plain weave.
Width 105 cm, 115 cm, 136 cm, 158 cm, etc.; Can be customized.
Product Form Roll mesh fabric
Roll length 30-80 meters; Can be customized.

Contact Us

CB CQ FLOUR MILLING MESH

Types Mesh opening(um) Thread diameter (um) Thickness(cm) Number of grids F(%) Request a Quote
3MF 300 120 23.8 60.5 51
4MF 280 120 25 63.5 49
5MF 250 100 28.6 72.6 51
6MF 230 100 30.3 77 49
7MF 200 100 33.3 84.6 44
8MF 180 90 37 94 44
8.5MF 160 90 40 101.6 41
9MF 150 80 43.5 110.5 43
9.5MF 140 80 45.5 115.6 40
10MF 130 70 50 127 42
10.5MF 125 70 51.4 130.6 41
11MF 119 70 53 134.6 40
12MF 112 60 58 147.3 43
13MF 107 60 60 152.4 41
14MF 100 60 62.5 158.8 39
15MF 95 60 64.5 163.8 38
16MF 80 70 66.5 168.9 29

Delivery
For small testing ordre We will sending the goods within 1-3 days.For bigger order will send the goods within 7-10 days
