polyester Filter Mesh

Filter Mesh

Macrokun produces and supplies monofilament polyester filter mesh(low-elongation) with a wide range of mesh counts and significant advantages compared with traditional polyester woven mesh. High quality and precision with a wide range of from 10 meshes to 460 meshes/inch.

Our polyester monofilament woven screen meshes have excellent tear resistance which permits high fabric tensions to be achieved with virtually any commercially available stretching system. And very good dimensional stability guarantees highly reproducible tension. Precision weaving of dimensionally stable threads produces fabric with predictable and close tolerance counts and mesh opening for consistent registration and sharp resolution

Advantages are:

✔ Good acid resistance
✔Temperature resistance
✔Wear resistance
✔  high tensile strength, Low-elongation
✔Easy cleaning, good air permeability

Monofilament mesh is woven from yarn that is extruded from heated polyester into a single strand conventional monofilament. Polyester screen fabric will elongate under tension: the higher the tension level, the more the thread can stretch. At excessive tension levels, the thread reaches its “plastic deformation” point, and the screen will no longer hold tension.

Nylon Filter Mesh Application:
Mainly used for liquid filtration, powder filtration, petroleum, mining, pharmaceutical, chemical plant, paint, ink, oil product filtration, alcohol filtration, paint filtration, dye filtration, resin, monosodium glutamate, aquaculture, impurity filtration, Dust Collection or Separation, Dry and Wet Filter Bags,Sifting,Milling , Automovie,Medical ,Pharmaceutical , Injection Molding Filter Belts , Loud Speaker and Micronphone Front Water-proofing ,Acoustic Appliances Interior ,Design ,Clothing, Refining Decoration ,food and other industrial screening and filtering.

Stocked Product Specifications ready for same day despatch

Materials:  Polyester is also called polyester (PET) material
Specification: DPP7-DPP165 (18-420 mesh)
Color: Natural or white, or customized
Weave Type: Plain weave, Twill weave, Dutch weave
Width: 115 cm, 127 cm, 145 cm, 165 cm, maximum 365 cm, or customized
Roll Length: 30-100m/Roll, Fixed Length, or customized

Contact Us

POLYESTER FILTER MESH

Model Specification (cm) Mesh count (mesh/inch) Thread diameter
(μm)		 Mesh opening
(μm)		 Thickness
(μm)		 Weight
(g/m2)		 Request a Quote
PET4/1931 4 10 550 1931 1089 303
PET6/1254 6 15 400 1254 792 240
PET7/1068 7 18 300 1117 594 162
PET8/941 8 20 300 941 594 180
PET8/891 8 20 350 891 693 245
PET10/743 10 25 250 743 495 156
PET12/677 12 30 150 677 297 68
PET12/578 12 30 250 578 495 188
PET14/489 14 36 200 489 340 144
PET16/404 16 40 200 404 340 160
PET20/399 20 50 80 399 136 32
PET20/380 20 50 100 380 170 50
PET20/361 20 50 120 361 204 72
PET20/333 20 50 150 333 255 113
PET22/356 22 55 80 356 136 35
PET24/320 24 60 80 320 136 38
PET24/301 24 60 100 301 170 60
PET24/282 24 60 120 282 204 86
PET24/253 24 60 150 253 255 135
PET29/214 29 74 120 214 204 107
PET32/236 32 80 64 236 109 33
PET32/221 32 80 80 221 136 51
PET32/202 32 80 100 202 170 80
PET34/184 34 86 100 184 170 86
PET36/169 36 90 100 169 170 90
PET39/191 39 100 55 191 94 30
PET39/168 39 100 80 168 136 64
PET39/149 39 100 100 149 170 100
PET43/145 43 110 80 145 136 70
PET47/150 47 120 55 150 94 36
PET47/135 47 120 71 135 121 60
PET53/134 53 135 48 134 82 31
PET53/127 53 135 55 127 94 41
PET53/118 53 135 64 118 109 55
PET53/112 53 135 71 112 121 68
PET59/115 59 150 48 115 82 35
PET59/109 59 150 55 109 94 45
PET59/100 59 150 64 100 109 61
PET64/103 64 160 48 103 82 37
PET64/96 64 160 55 96 94 48
PET64/88 64 160 64 88 109 66
PET72/86 72 180 48 86 82 41
PET72/80 72 180 55 80 94 54
PET77/71 77 195 55 71 94 59
PET80/73 80 200 48 73 82 46
PET90/68 90 230 40 68 68 37
PET90/60 90 230 48 60 82 53
PET100/51 100 250 40 51 68 40
PET110/43 110 280 40 43 68 45
PET120/42 120 300 34 42 58 35
PET120/37 120 300 40 37 68 48
PET130/36 130 330 34 36 58 38
PET140/32 140 350 34 32 58 40
PET150/31 150 380 30 31 51 34
PET165/25 165 420 31 25 53 40

Delivery
For small testing ordre We will sending the goods within 1-3 days.For bigger order will send the goods within 7-10 days

Print Table

Available Types

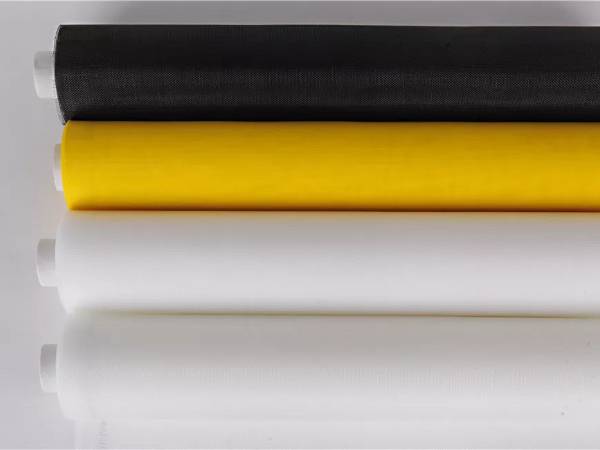

Four rolls of polyester filter mesh fabric in white, yellow and black color.

Filter Mesh Fabric

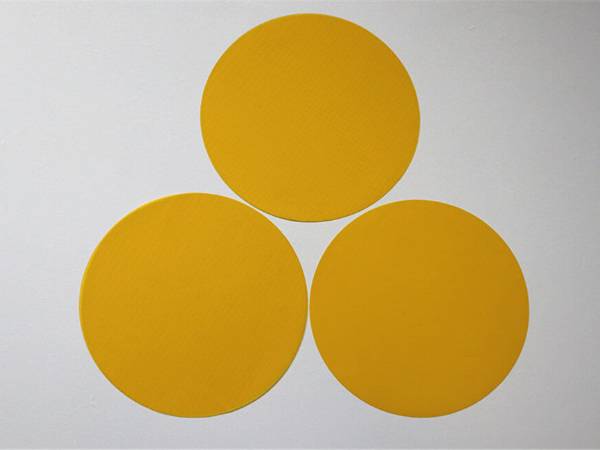

Three pieces of yellow color polyester filter disc on gray background.

Filter Discs

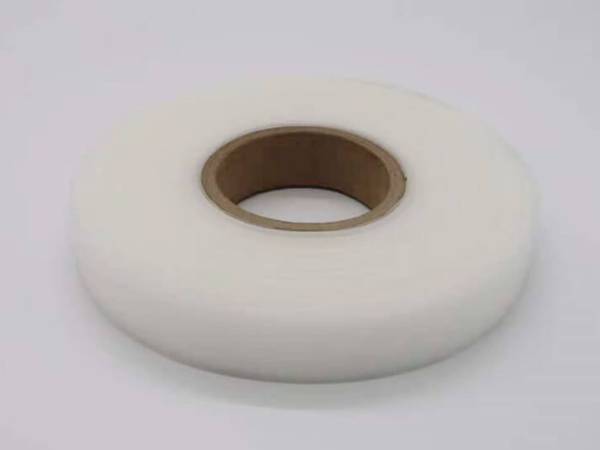

A roll of polyester filter belt on gray background.

Filter Belts

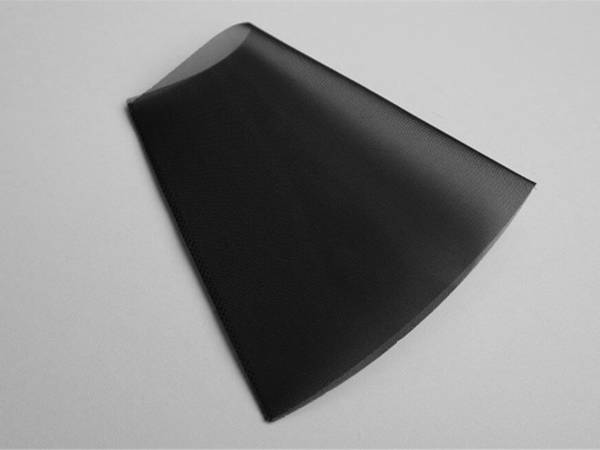

A piece of black color polyester filter tube on gray background.

Filter Tubes

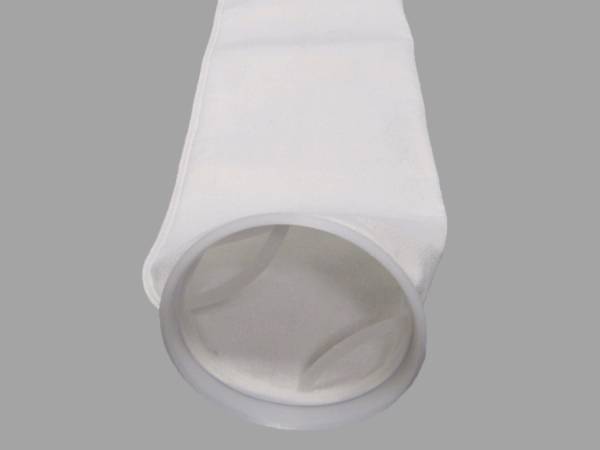

A piece of white color polyester filter bag on gray background.

Filter Bags

Advantages

  • Acid and alkali resistance
  • High temperature resistance
  • Easy cleaning
  • Easy to install and replace
  • High tensile strength
  • Even mesh and accurate filtration

Applications

  • Air purification
  • Water filtration
  • Dust filtration
  • Paint coating filtration
  • Medical filtration
  • Automobile filtration

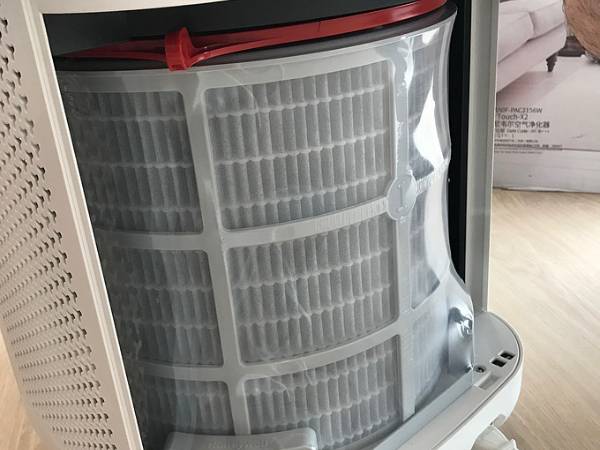

A basket type polyester filter mesh is installed on the air purifier.

Air purification

A polyester filter bag is installed in the bag filter housing.

Water purification

A polyester mill mesh tube is installed on the milling dresser.

Milling

A set of blood filter transfusion on the blue background.

Medical filter

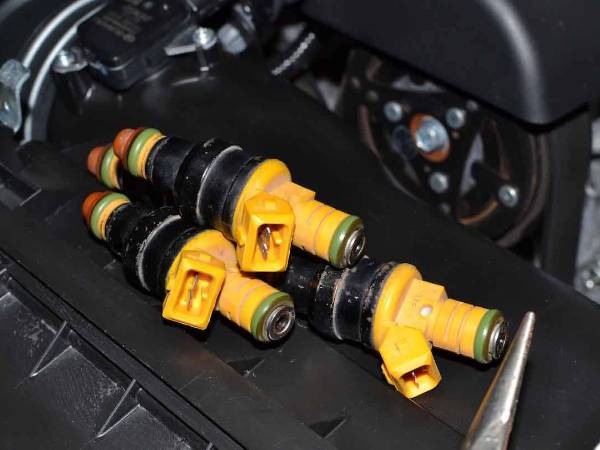

Three injector in the car.

Injector filter

Dimensions

  • Material: 100% monofilament polyester wire.
  • Mesh Count Range: 10–420 mesh/inch.
  • Weaving method: plain weave, twill weave, dutch weave.
  • Width: 115/127/145/165 cm and maximum is 365 cm.
  • Length: 30–100 m and customized lengths.
  • Color: white, black, yellow and customized colors.
Download Data
Popular Specifications of Polyester Filter Mesh
Specification Mesh Count ThreadDiameter Aperture Opening Thickness Ink Through Volume Theoretically TensileStrength
mesh/inch micron micron % micron cm3/m2 n/cm
10-200 25 200 816 65 440 276 42
10-250 25 250 740 53 465 246 60
12-200 30 200 522 47 485 228 62
16-200 40 200 435 47 420 189 48
20-140 50 140 340 46 280 129 52
20-180 50 180 320 41 350 152 56
24-100 60 100 316 58 190 109 48
24-120 60 120 300 51 210 105 42
32-100 80 100 200 43 160 69 42
36-100 90 100 178 41 175 72 42
39-55 100 55 201 62 100 62 30
39-80 100 80 172 46 142 65 42
43-80 110 80 150 41 130 55 35
48-70 120 70 135 41 115 46 32
53-55 135 55 134 50 105 53 34
54-64 137 64 115 39 102 40 30
59-55 150 55 100 40 93 39 32
64-55 160 55 101 42 105 44 30
64-64 160 64 90 32 106 34 35
72-48 180 48 94 46 80 37 32
72-55 180 55 75 29 92 27 32
77-55 195 55 70 25 88 24 29
80-48 200 48 78 30 84 24 29
80-55 200 55 70 25 88 24 29
90-48 230 48 55 25 78 20 33
100-40 250 40 58 32 65 21 29
110-40 280 40 48 27 65 17 30
120-34 300 34 45 30 55 16 30
120-40 300 40 40 20 55 16 29
140-31 350 31 35 26 48 13 27
140-34 350 34 30 20 55 10 30
150-31 380 31 32 23 47 10 28
150-34 380 34 30 20 69 10 30
165-31 420 31 25 17 49 8 28
