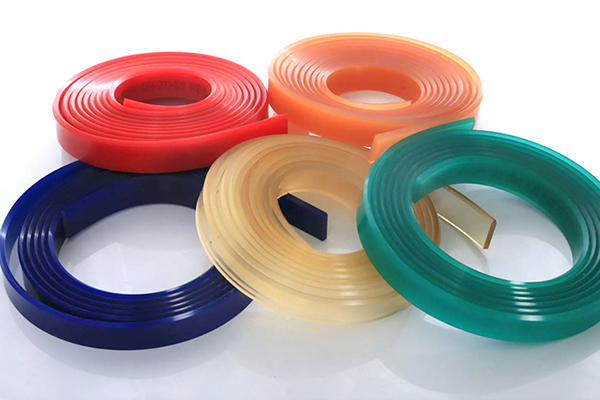

Screen Printing Squeegee Blades are one of the essential parts of screen printing. Squeegee blades are available in different shapes (round, beveled and sharp-edged), and hardness (durometers), and therefore in order to get the proper result when printing, the right durometer, thickness, and shape are all required.

Screen Printing Squeegee Blades Information:

Product name Screen Printing Squeegee Blades
Width 5-500mm customize
Thickness  2-30mm customize
Length 100-4000mm customize
Color Red,Green,Yellow,Coffee,White,Blue.etc customize

Screen Printing Squeegee Blades

Screen Printing Squeegee Blades

Screen Printing Squeegee Standard Profiles:

  • E1:Straight Square Edge
  • E2:Single Bevel+Flat tip
  • E3:Single Bevel
  • E4:Double Bevel+Flat tip
  • E5:Double Bevel (V shape)
  • E6:Bull Nose (round top)
  • E7:H shape
  • E8:Triple layer
  • E9:Double laye

Screen Printing Squeegee Blades

Screen Printing Squeegee Blades Advantage:

  • 1. Comfortable design, easy handling
  • 2. Excellent resistance to abrasion and solvents
  • 3. High resistance to heat and pressure
  • 4. 65/75/80 Durometer for Oil Squeezer

Screen Printing Squeegee Blades Application:

The squeegee is popular in textile, decoration cloth printing. It is solvent and middle type pressure resistance.With good performance of resistance to abrasion and water base chemical ,long life with a perfect edge. It is used for low viscosity ink printing.Textile printing,Manual or automatic screen printing machine using. normal hand type printing, such as ceramics, decal paper, and packing materials printing.

Table of Contents

Get Best Quote

Welcome ! We are professional manufacturer and supplier of Screen Printing ,Filter Bag and Filter Mesh. If you want to buy our products, You Can Contact With Us, Consulting Online Or Leave Messages.


 Screen Printing Squeegee Blades

Type MKPU-100 MKPU-300 MKPU-500 MKPU-800 ±Tolerance
Thickness 2-20mm ±0.3mm
Width 9-500mm ±1.0mm
Length 10-4000mm ±5mm
Hardness 55-95 ShoreA ±3A



Hardness Type Hardness Color
Soft 55,60,65 red or natural
Medium 70,75 green or natural
Hard 80,85 blue or natural
Super Hard 90,95, white
Triple Medium 75/90/75 green/white/green
Triple Soft 65/90/65 red/white/red
