» Polyester Mesh For Screen Printing

Why Choose Our Products?
1. The product is colorful and careful, and the stability is good!
2. Various specifications can be made!
3. Customer service reception before and after the sale!

PRODUCTS INFORMATION

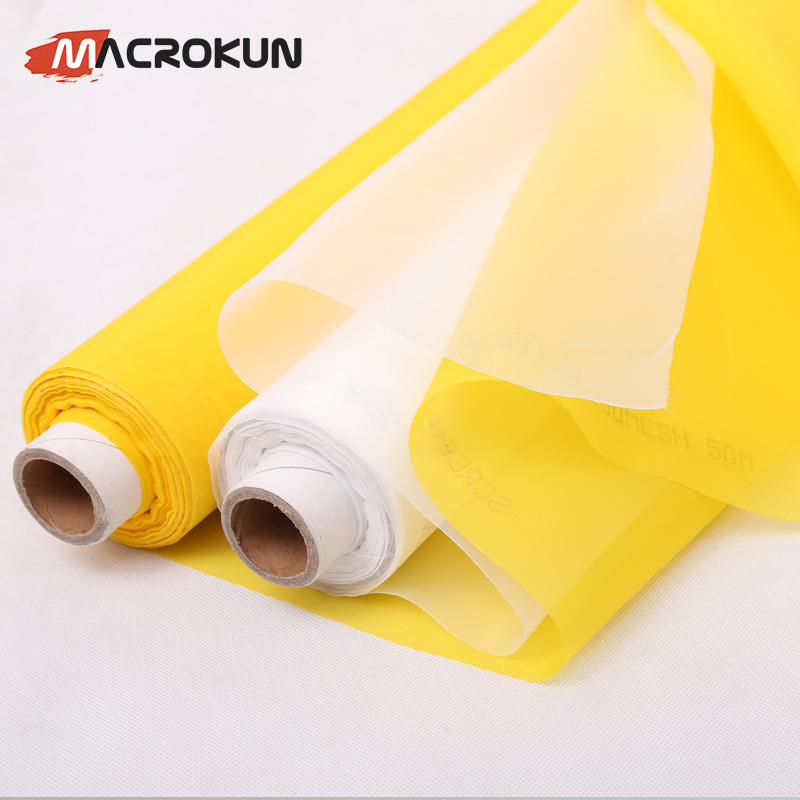

Product Name: Screen printing mesh
Meterial: 100% polyester monofilament
Width: 0.6-3.65 Meters
Mesh count: 6T to 180T(15mesh to 460mesh/inch)
Color: white and yellow or customized Roll length
30-100m or customized

Type Mesh Count
(Mesh/inch)
Aperture
(um)
Thread Diameter
(um)
Opening
(%)
Thickness
(um)
Ink Through Volume Theoretically
cm³/m²
Tensile Strength
N/CM
6T-400 15 1300 400 65 780-810 560 110
10T-250 25 700 250 49 508-518 355 85
12T-250 30 610 250 53 495-505 305 85
15T-250 38 467 250 49 489-501 213 83
24T-100 60 316 100 57 188-195 109 49
24T-120 60 303 120 51 230-240 104 51
30T-120 75 213 120 41 235-245 102 52
32T-100 80 212 100 46 145-155 69 48.5
36T-90 90 185 90 45 155-165 65 59
39T-55 100 195 55 56 88-96 55 24
39T-80 100 176 80 48 148-153 73 31
43T-80 110 147 80 40.8 125-131 53 31
47T-55 120 152 55 51 88-96 47.6 29
48T-70 120 135 70 41 108-120 45.5 30
53T-55 135 128 55 47 88-96 44.5 29
54T-64 137 115 64 38.5 95-105 38.9 30
54T-70 137 108 70 34 108-120 40 31
62T-64 155 105 64 42 98-107 33 31
64T-45 160 105 48 43 73-82 36.5 30
64T-55 160 98 55 38 85-95 36.1 30
64T-64 160 88 64 30 95-105 30.7 31
68T-55 175 85 55 34 85-95 29.2 48
68T-64 175 78 64 29 108-110 32 58
72T-45 180 92 45 40 68-76 33.1 27.6
72T-48 180 90 48 36 75-84 33.1 28
77T-48 195 81 48 34 80-85 29 28
77T-55 195 75 55 28 86-92 26.6 29
80T-48 200 72 48 33 75-84 28.7 27
90T-48 230 56 48 25 77-85 23.5 25
100T-40 250 58 40 37 66-73 21.3 28.5
110T-40 280 52 40 33 78-85 20.5 29.6
120T-34 305 45 34 30.5 52-57 18.4 30.5
140T-34 355 31 34 19.5 56-62 14.4 31
150T-31 380 36 31 29 43-47 13.1 30.5
150T-34 380 30 34 20.5 56-62 14.9 30.5
165T-31 420 31 31 22.5 52-58 12.5 28.9

Remark: The above data are theoretic, please reference the actual data if there it differs.

[Product details]
1. High Tension: The fracture resistance is high, and the tension value of the printing mesh is
significantly higher than that of the ordinary printing mesh.

2. High Stability: The tension remains very stable during the printing process, thus ensuring
the printing quality and the service life of the screen.

3. High abrasion resistance: The high-quality fiber is used as the raw material, and the surface
of the screen is specially treated to withstand high pressure and multiple frictions.
Therefore, the screen has high safety and printing resistance.

[Our Advantage]
1. 126 sets of P7100 and P7150 Sulzer weaving looms  from Switzerland, as well as Germany-made
intellectual electronic warping machine can ensure our supply ability to be 5000 meters per day.
2. For normal mesh count mesh and other products, usually we have stocks, and goods can be shipped
out within 15 days.
3. Our production process is fully based on high computer technology, it is accepted as the only
company capable of having TSE ( Chinese Standard Institution ) and ISO 9001:2008. 90% of our silk screen printing mesh is exported to Southeast Asia, North America, Europe, and other parts of the world.
We have a good reputation in the world with high quality and competitive prices.

Direct factory customization, reduce the link, you can enjoy the factory price; factory large-scale

procurement of raw materials can control the cost very well.



[White and Yellow color mesh differences]
White mesh is the more economical of the two and is primarily seen in lower mesh counts used for less-detailed designs. Higher count mesh is usually dyed yellow because the color yellow acts as a canceling factor for UV light and prevents refraction along the mesh strands when burning your screens. This allows for a more focused and precise exposure, keeping your screens as crisp as possible.

[Production Process]
Buy yarn from Jintong, Switzerland, and Japan, we inspect the yarn when they are unloaded in our factory. (tolerance, tensile strength, physics test, etc.).
After that, we put the warp wire on thebeam and draw the warp wire into the heddle and reed. Then our
experienced weaver will start weaving according to orders.
Initial survey will be done after weaving. Then start heat setting treatment and physical properties
inspection, before we get tentative finished rolls(60-500 meters big rolls).
In the end, we’ll cut the small rolls(20m-50m) according to customer orders after a final inspection.

[Packing]

  1. Paper tube inside, plastic bag outside, then packed in cartons.
  2. Fold the mesh into a plastic bag, then packed in cartons.

[Shipping]

  1. Samples orders are usually within 3 days shipped by Courier (DHL, TNT, FEDEX, UPS, EMS, and so on)
  2. Small quantity orders usually within 3-7 days shipping by air or by sea.
  3. Large quantity orders usually within 7-15 days shipped by sea.
  4. The main export port is  XINGANG, BEIJING, SHANGHAI, QINGDAO, NINGBO, and so on.
