» High Durability DPP Polyester Filter Mesh Used For Milk Filtering

Polyester Filter Mesh Used For Milk Filtering Features:

  1. High quality ,high durability and best tensility
  2. Improved fabric strength
  3. Faster tension stabilization
  4. High precision
  5. elastic memory
  6. abrasion heat and moisture​

​Polyester Filter Mesh Used For Milk Filtering Shipping:

1. Polyester Filter Mesh For small quantity, shipped by courier.
2. Polyester Filter Mesh For large quantity, shiped by air or by sea.
3. Polyester Filter Mesh Tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.

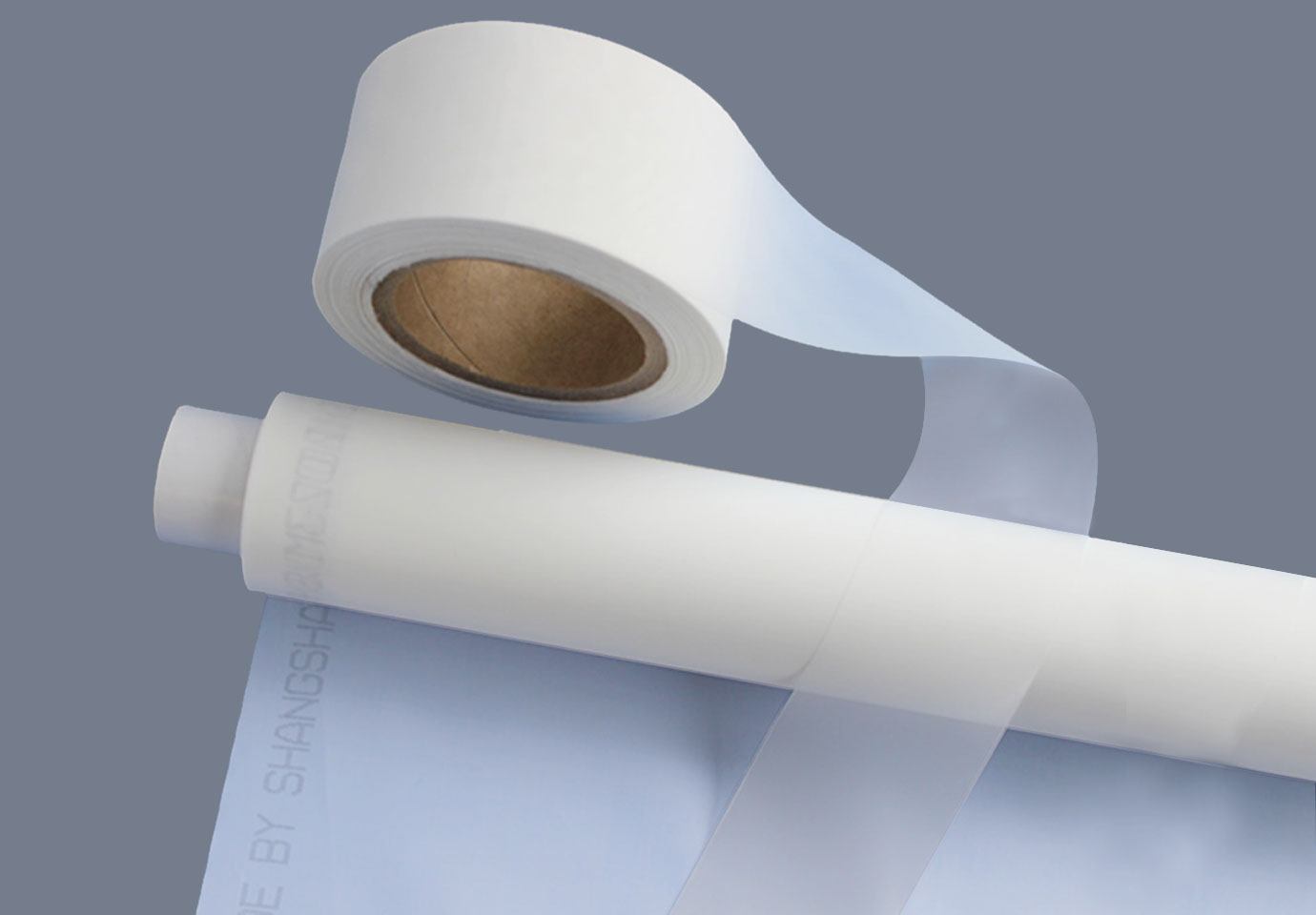

polyester filter mesh

Polyester Filter Mesh Used For Milk Filtering Description:

  • Material:100% polyester
  • Width:105cm,115m,127cm,136cm,145cm,157cm,165cm,188cm,220cm,360cm
  • Color:white,yellow
  • Tensile strength:25N/cm-85N/cm
  • Wire diameter:0.027mm-0.4mm



Application:

100%polyester filter mesh for food is widely used in areas as filtration and separation industry. Such as food industry for milling filtering and flour milling, paper making factory and other grains milling. Like glucose production, milk powder, soybean milk,liquid & dust filtration (filters, filter bags, dust filter bags,etc.

Specification:

COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²)
15 6 400 1270 64 720 460
18 7 350 1078 64 640 410
20 8 300 950 58 550 319
25 10 250 750 56 620 347
30 12 250 583 49 450 220
30 12 150 683 67 300 201
40 16 200 425 46 400 184
50 20 80 420 71 120 85
50 20 150 350 49 260 127
60 24 100 316 58 136 78
60 24 120 297 50 240 120
73 29 120 225 43 240 103
80 32 64 248 63 95 59
80 32 100 212 46 200 92
85 34 100 195 44 221 97
90 36 100 178 41 216 88
100 39 55 200 61 88 53
100 39 80 176 47 150 70
110 43 80 153 43 130 56
120 47 55 158 55 88 48
120 47 71 142 44 135 59
135 53 55 133 50 86 43
135 53 64 125 44 100 44
150 59 64 105 38 100 38
160 64 55 101 42 98 41
160 64 64 92 35 120 42
180 72 48 91 43 78 66
180 72 55 84 37 100 37
200 80 48 77 38 74 28
195 77 55 75 33 105 34
230 90 48 63 33 85 28
250 100 40 60 36 70 25
280 110 40 51 31 85 26
305 120 40 43 27 68 18
355 140 34 37 27 58 15
380 150 31 36 29 46 13
420 165 31 30 24 46 11
460 180 27 28 26 56 14
