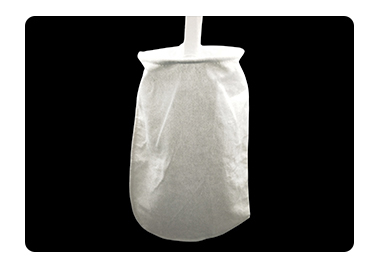

» PTFE Liquid Filter Bag

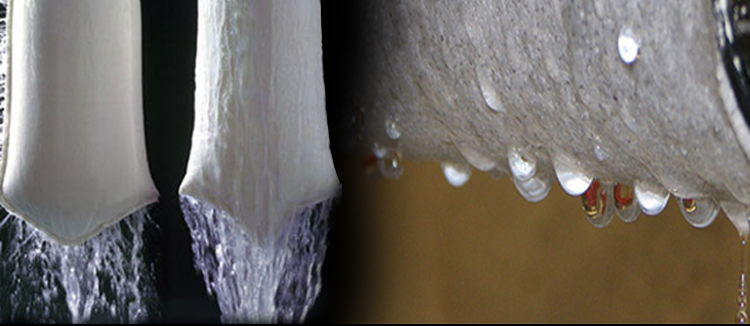

The liquid filter bag is a replaceable filter element of the bag filter system. Our bags are made of food-grade nylon material, 8-600 mesh is our best-selling mesh, and liquid filter bags can be customized in size.

And there are a variety of media types for you to choose from, such as polypropylene, polyester, nylon, porous PTFE film and stainless steel, etc.

Product Name:	Liquid Filter Bag
Material:	PTFE
Size:	1# 180*410mm / 2# 180*810mm 3# 102*210mm / 4# 102*360mm 5# 152*560mm,Customized size
Filtration accuracy:	1-300 microns
Bag body types	Stitched
Bag top types:	Metal ring top
Bag bottom: types:	“Arc” shape bottom

Detailed Specifications Of liquid Filter Bags

Model	Diameter(mm)	Length(mm)	Accurate(μm)	Maximum flow(m³/h)	Filter area(㎡)
1#	180	410	1-300	20	0.25
2#	180	810	1-300	40	0.5
3#	102	210	1-300	6	0.09
4#	102	360	1-300	12	0.16
5#	152	560	1-300	18	0.3

Filter material performance

Ilter material	Temperature resistance range	Strong acid	Weak acid	Strong base	Weak base	Oils and fats	Aromatic	Alcohol ether	Organic solvents	Hydrolyzed organisms
Polyester (PE)	130-150		▲			▲	▲	▲	▲	▲
Polypropylene (OPP / PO)	90-110	▲	▲	▲	▲	▲	▲		▲	▲
Nylon (NMO)	130-150			▲	▲	▲			▲	▲
Polytetrafluoroethylene (PTFE)	250-300	▲	▲	▲	▲	▲	▲	▲	▲	▲

Precision conversion table

Micron (μm)	1	3	5	10	20	25	50	70	100	125	149
Mesh	15000	5000	2500	1250	625	550	300	200	140	120	100
Micron (μm)	200	250	300	350	500	590	710	840	1000	1200	1400
Mesh	70	60	50	45	35	30	25	20	18	16	14

Characteristics of PTFE

1. It has the characteristics of high temperature resistance, acid and alkali resistance, corrosion resistance and smooth surface.

2. It is suitable for filtration in the acid-base industry, and can be used in the filtration of waste incineration station PH1-14.

3. It can withstand high temperature filtration of 300 degrees, and has a wide range of applications in chemical, pesticide and other industries.

4. It has strong chemical compatibility, benzene, solvents, aromatic hydrocarbons, strong acid solutions, strong alkaline solutions can all be well tolerated.
