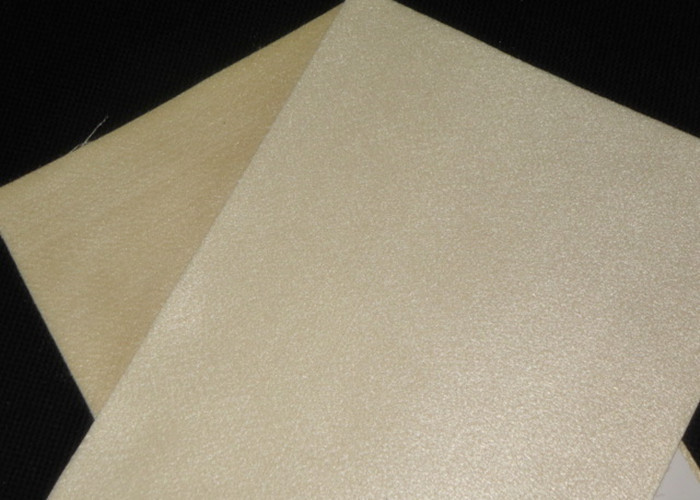

» PPS Filter Fabric micron dust filter cloth 550gsm needle filter fabric

550gsm needle felt PPS (ryton) filter fabric for industrial boiler used

550gsm needle felt PPS (ryton) filter fabric for industrial boiler  Quick Detail:

High filtration efficiency, long service life

1.5mm to 3mm thickness

Weight from 350 to 800s

Width 2.1 meter maximum

High porosity ,good air permeability

Good price quality

Laminated compound,grads counterchange

550gsm needle felt PPS (ryton) filter fabric for industrial boiler Description:

PPS Short fibers can keep intensity completely and bear chemistry naturing inherently, keep good filtration performance among the abominable environment, reach ideal service life. In coal boiler, rubbish incinerator, power plant of fly ash filtering of pulse clear dust catcher, PPS filter felts are an ideal filtration material.

550gsm needle felt PPS (ryton) filter fabric for industrial boiler Specifications:

Compositions

PPS stable fiber PPS stable fiber
Weight (g/m2) 500 550
Thickness (mm) 1.8
Air permeability(m3/m2/min) 15 12
Tensile strength

(N/5×20cm)

Warp ≥850 ≥1000
Weft ≥1050 ≥1200
Tensile Elongation(%) Warp ≤30 ≤30
Weft ≤30 ≤30
Working

temperature (℃)

Continous ≤190 ≤190
Instant 230 230
Anti-acid Excellent Excellent
Anti-alkali Excellent Excellent
Anti-abrasion Excellent Excellent
The stability of water solution Excellent Excellent
Finishing treatment High temperature hot pressing,Singeing





Product Name pps nonwoven needle punched felt filter cloth
Material polyester,PP,Viscose or customized
Technics Needle punched, Spunbond, Spunlace, Thermal Bonded(Hot air through)
Thickness Customized
Width Within 3.2m
Color All colors are available(Customized)
Length 50m,100m,150m,200m or customized
Packaging in roll packing with plastic bag outside or customized
Payment T/T,L/C
Delivery time 15-20days after receiving buyer’s repayment.
Price Reasonable price with high quality
Capacity 3Tons per 20ft container;

5Tons per 40ft container;

8Tons per 40HQ container.

Non woven Fabric Characteristic:

— Eco-friendly, water repellent

— can have anti-UV(1%-5%), anti-bacteria,anti-static,flame retardant function as request

— tear resistant, shrink-resistant

— Strong strength and elongation, soft, non-toxic

— Excellent property of air through

Application and Size of needle felt PPS (ryton) filter fabric for industrial boiler:

Filter Media Working Temperature Application Regular Size (mm )
Nomex Filter Felt 180-10 degree C. Asphalt mixing , metal smelting , Gypsum , Cement plant ,etc . D130 x 2450, D 150 x 3050 , D 160 x 3600 , D150 x 4500
PPS Filter Felt 160-190 Degree C Coal boiler power plant , waste treatment power plant ,etc. D 160x 6000, D127 x 8065
PTFE 100% Filter Felt 240-260 degree C . Waste treatment power plant , D 127 x 3500 , D 130 x 3000
Fiberglass Filter Felt 260-280 Degree C Cement Kiln , Steel plant furnace D 160 x 6000 , 152 x 5000
PTFE memrbane Fiberglass Cloth 260-280 Degree C , Cement kiln , steel plant furnace , carbon black plant D 127 x 36000 , D 130 x 4500

Notices:

Exceptional Stability for a Wide Range of Temperature and Frequency Variations

Be suitable for the oxygen content below 15%

Chemical Resistance to Acids, Alkalis and Organic solvents

Containing moisture in the flue gas; Hydrolysis resistance

Very stable in finished felt form with stability standards at 2% shrink or stretch.

Favorable temperature resistance melting point 285℃, limited oxygen index 34~35;

550gsm needle felt PPS (ryton) filter fabric for industrial boiler Note:

1. special specification can be customized.
2. maximum width:2.3meters.

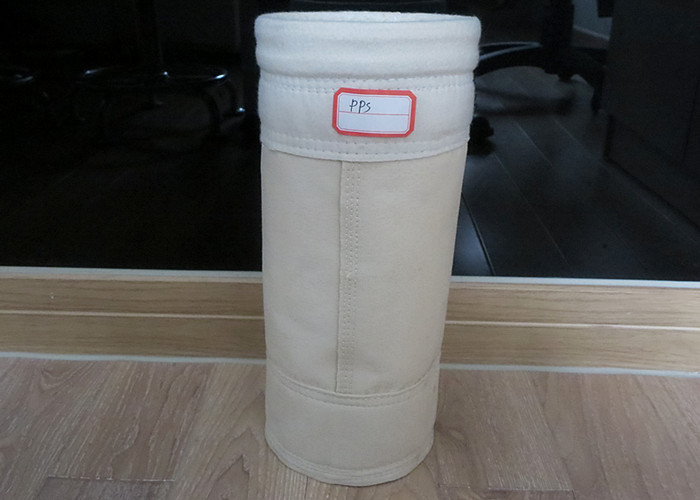

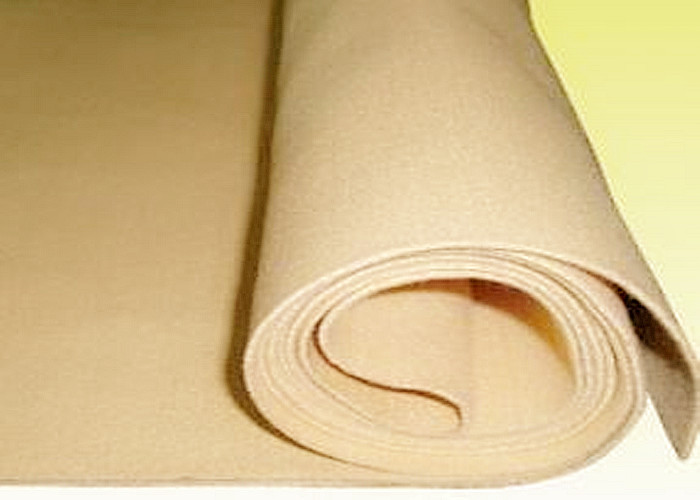

3. both filter cloth rolls and filter bags are available

550gsm needle felt PPS (ryton) filter fabric for industrial boiler Applications:

Coal – Fired Boilers bag houses Calciners / Catalysts

Municipal Solid Waste Boilers and Waste incinerator

Electric power plant Electrolysis and other Specialty membranes

Waste to energy Iron and non ferrous Metal Industry

550gsm needle felt PPS (ryton) filter fabric for industrial boiler Usage:

1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations

2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals

3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers

4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics

5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster

6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
