|Type:||Dust Filter Bag||Material:||Polyester|
|Diameter:||120-300 Mm Or Custom||Length:||2m To 8m Or Custom|
|Process Method:||Sewing Or Welded||Certificate:||ISO9001|
|Usage:||Metallurgy Plant, Alloy Plant, Steel Works||Package:||Standard Export Package|

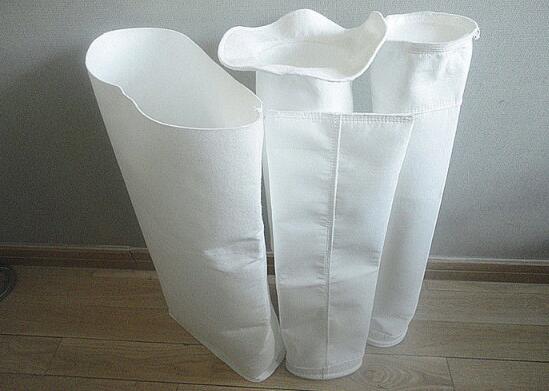

Polyester Materials Dust Filter Bag Lower Fiber Release Prolonging Service Life
Material : PP or PE,polyester, polypropylene
Micron rating : 0.5um ~800um
Good anti abrasion
High temperature grade
Anti acid ,anti alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
#2—–(7″ x 32″) —–¢180*810mm
#3—–(4″x 8 1/4″) —–¢102*210mm
#4—–(4″x 14″) —–¢102*356mm
|Cuff||PP Lock, Stainless steel|
|Relative filtration pore size||0.5, 1,5, 10, 25, 50, 100, 200 µm|
|Airtight method:||Hot Melt, reverse sewing|
|Effective filtration area||various specifications|
|Others||special requirement of diameter and collar extension can be customized|
|Model No.||Material||Weight||Thickness||Breaking strength||Using temperature|
|polyester needle felt||polyester fibre||400-650||1.7-2.05||900-1140||1100-2000||≤130|
|polypropylene needle felt||polypropylene fibre||400-650||1.8-2.6||950-1500||900-1400||≤130|
|anti-static needle felt||polyester fibre
|water and oil replelient needle felt||polyester fibre
|FMS needle felt||high temperature resisting fibre||＞800||1.8||1600||1400||≤260|
|metamax needle felt||metamax fibre||500||2.3||1000||900||≤204|
|PPS needle felt||poly-p-propylence||500-550||2.0||≥800||≥1200||≤170|
|PTFE coated needle felt||polyester fibre or metamax needle felt
1. dust collector filter bag are carefully fabricated and sized to ensure ease of installation and
2. dust collector filter bags are designed to be mounted and gasketed firmly into place with a snap band, corded cuff, or clamp to ensure dust tight seal.
3. Various coatings and finishes can be applied to either side of the dust collector bag to enhance cleaning and efficiencies, as well as prolonging service life.
4. Groundwire, anti-collapse rings and other options can be easily incorporated into bag construction.
Filter bag is the“heart”of a dust collector,and it plays a very important part in dust collection.
Filter bag performance effects directly on the dust collecting efficiency.
Polyester needle felt is a widely used filter bag material which has great intensity and elastic
recovery,steady fiber dimension,good anti-wear property,large porosity,good air permeability,
long serving life,high dust collecting efficiency.It shows good mechanical properties and acid and alkali resistance
at normal temperature.
Polyester needle felt is a good option with good properties and appropriate price.
Characters of dust such as temperature,proportion,size,adhesion,concentration,humidity,
explosibility and filtration velocity should be considered before choosing filter bag to achieve an optimum efficiency.
dust collector filter bag Notices:
1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
dust collector filter bag Application fields:
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
