» Plastic ring for Liquid filter bag

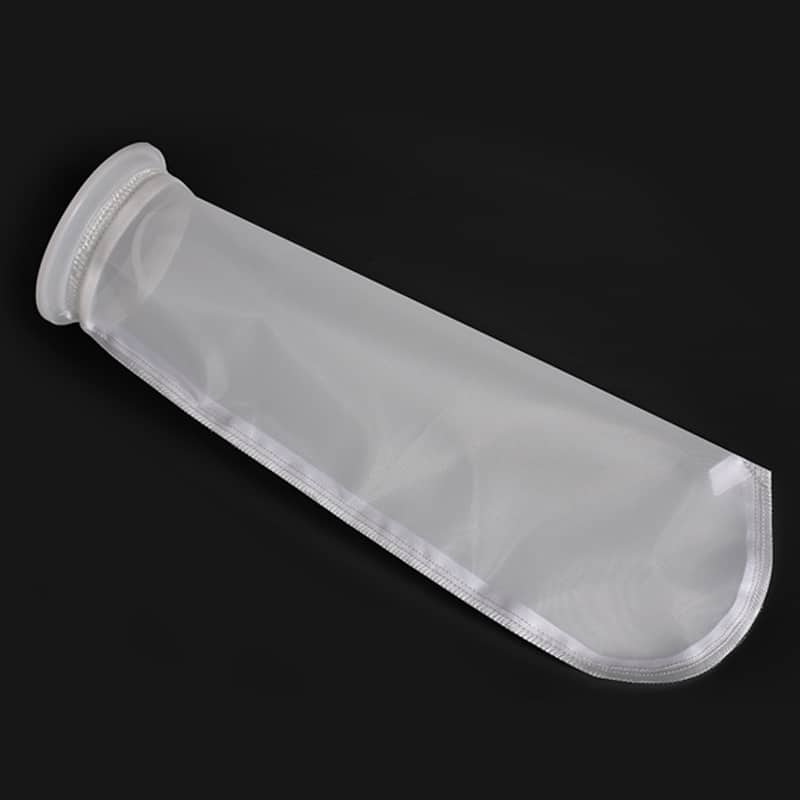

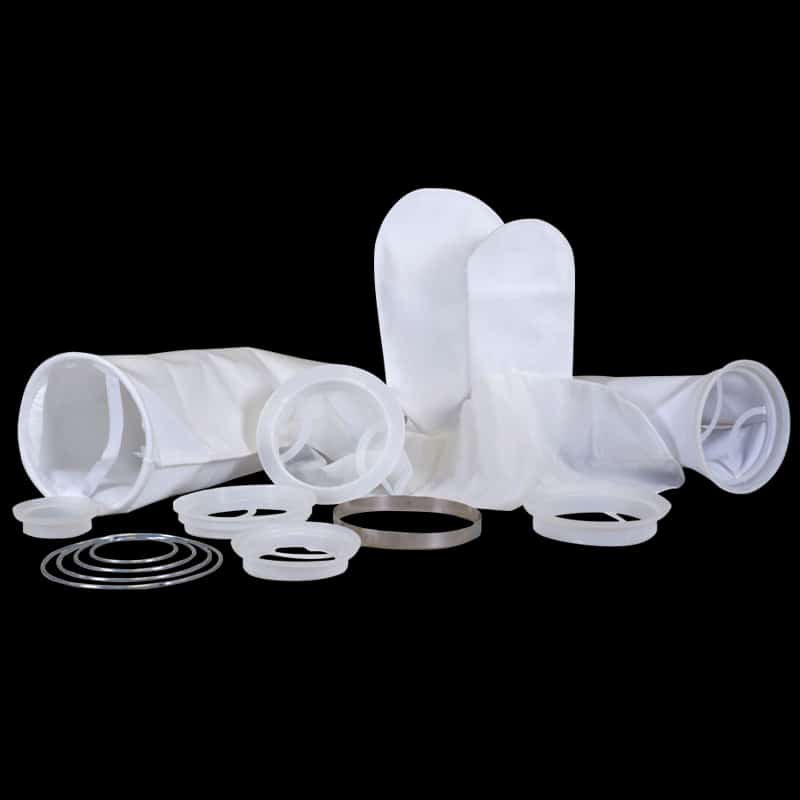

Product name: filter bag

Material: nylon

Bag Mouth Material: plastic ring

Size: customizable

Material: Nylon Monofilament
Ring: plastic, stainless steel
Filtration Precision: 10, 25, 50,100,150, 200,400,500,600,800 µm
Type: various specifications
Airtight method: heat fusion, reverse sewing
Effective filtration area: various specifications
Others: special requirement of diameter and can be customized

No. Filtration area(m³) Volume(L) Diameter Length Max Water Flow(L/ hr)
P1S 0.25 8.0 7inch(180mm) 17inch(450mm) 20
P2S 0.50 17.0 7inch(180mm) 32inch(810mm) 40
P3S 0.09 1.3 4inch(100mm) 9inch(230mm) 6
P4S 0.16 2.5 4inch(100mm) 15inch(380mm) 12

Plastic ring, Corrosion resistant

The filter material buckle is made of

polypropylene resin environmentally

friendly material, which has a smooth

appearance without burrs and better

corrosion resistance.



Five-thread sewing

hemming technology

Adopting five-thread seam hemming

technology, the tightest sewing, to

ensure that each filter bag can

achieve the best filter effect.



Environmental Protection

And No Pollution

Made of nylon material with high

strength and no secondary pollution.
