Micron Needled Felt PPS Filter Fabric Anti Alkali Dust Collector Bag

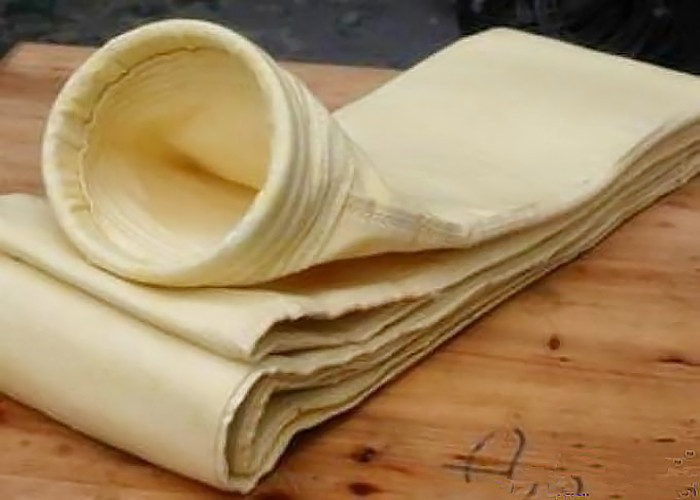

Needled Felt PPS Filter Fabric Anti alkali Filter Bag Dust Removal Made in China

Needled Felt PPS Filter Fabric Anti alkali Filter Bag Quick Detail:

High filtration efficiency, long service life

1.5mm to 3mm thickness

Weight from 350 to 800s

Width 2.1 meter maximum

High porosity ,good air permeability

Good price quality

Laminated compound,grads counterchange

Needled Felt PPS Filter Fabric Anti alkali Filter Bag Quick Description:

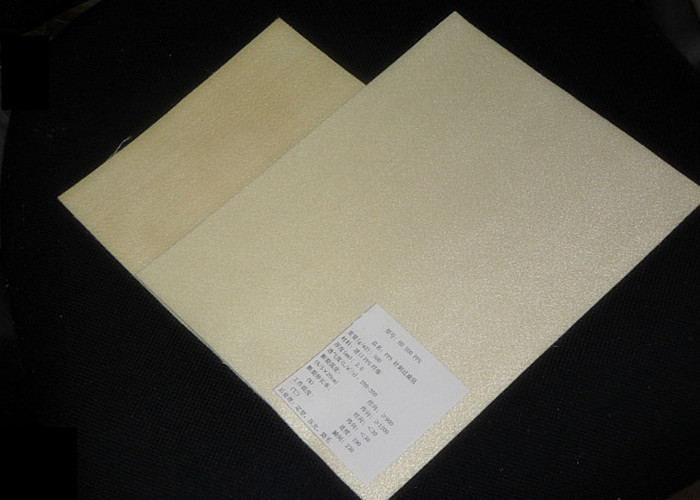

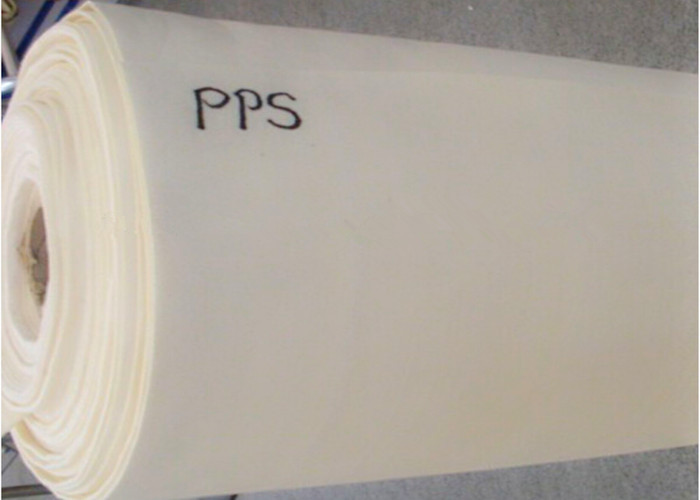

PPS needle-punched filter felt

PPS Short fibers can keep intensity completely and bear chemistry naturing inherently, keep good filtration performance among the abominable environment, reach ideal service life. In coal boiler, rubbish incinerator, power plant of fly ash filtering of pulse clear dust catcher, PPS filter felts are an ideal filtration material.

a. PPS High temperature resistance and Acidity resistance needle-punched filter felt
b. PPS High temperature resistance and Acidity resistance,waterproof and Oilproof needle-punched filter felt

Needled Felt PPS Filter Fabric Anti alkali Filter Bag Quick Specifications:

Compositions PPS stable fiber PPS stable fiber
Weight (g/m2) 500 550
Thickness (mm) 1.8
Air permeability(m3/m2/min) 15 12
Tensile strength

(N/5×20cm)

Warp ≥850 ≥1000
Weft ≥1050 ≥1200
Tensile Elongation(%) Warp ≤30 ≤30
Weft ≤30 ≤30
Working

temperature (℃)

Continous ≤190 ≤190
Instant 230 230
Anti-acid Excellent Excellent
Anti-alkali Excellent Excellent
Anti-abrasion Excellent Excellent
The stability of water solution Excellent Excellent
Finishing treatment High temperature hot pressing,Singeing



ITEM UNIT SPECIFICATIONS
Weight(g) g/M2 500-800 g/m2
Thickness(mm) mm 2-3mm
Thickness(mm)

Tensile Strength(N/5×20cm)

Warp N(5X20cm) ≥1200 N
Weft ≥1400 N
Tensile Elongation(%) Warp % ≤20
Weft ≤25
Burst Strength (Mpa/min) 2.7 2.60 2.45 3.10
Air Permeability m3/m2/min 15 ±25%
Operation Temp. ≤190
Instant Temp. 210
Anti-acid Excellent
Anti-alkali Excellent
Treatement leveling,calendaring and finishing

Needled Felt PPS Filter Fabric Anti alkali Filter Bag QuickNotices:

Exceptional Stability for a Wide Range of Temperature and Frequency Variations

Be suitable for the oxygen content below 15%

Chemical Resistance to Acids, Alkalis and Organic solvents

Containing moisture in the flue gas; Hydrolysis resistance

Very stable in finished felt form with stability standards at 2% shrink or stretch.

Favorable temperature resistance melting point 285℃, limited oxygen index 34~35;

Needled Felt PPS Filter Fabric Anti alkali Filter Bag QuickNote:
1. special specification can be customized.
2. maximum width:2.3meters.
3. both filter cloth rolls and filter bags are available

Needled Felt PPS Filter Fabric Anti alkali Filter Bag QuickApplications:

Coal – Fired Boilers bag houses Calciners / Catalysts

Municipal Solid Waste Boilers and Waste incinerator

Electric power plant Electrolysis and other Specialty membranes

Waste to energy Iron and non ferrous Metal Industry
