» Liquid filter bags

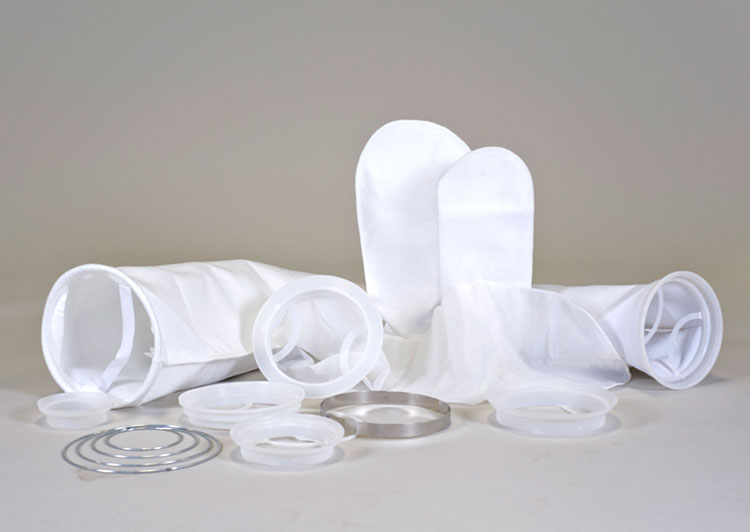

Product Description The Standard Size Of Liquid Filter Bag The filter sock are available in many

different sizes and shapes.The filter sockcould be custom made. Normal used sizes of filter sockare: Filter Bag Model Filter Bag Area(m) Filter Bag Volume.



PRODUCT INFORMATION



型号	尺寸		流量	过滤面积	容量
Model	Size (mm)	Size (inch)	Flow (m³/h)	Filter area (㎡)	Capacity (L)
1#	180*430	7*17	20	0.24	8
2#	180*810	7*32	40	0.48	17
3#	105*230	4*9	6	0.08	1.3
4#	105*380	4*15	12	0.16	2.6
5#	150*560	6*22	20	0.24	8

Remarks: The flow rate refers to the filtration flow rate per hour of pure water with a viscosity of 1 through the filter bag at a normal temperature of 25°C.

Filter Filter Accuracy Table



材质 Material	过滤精度 Filtration accuracy
PP	0.1-500u (0.45-500u)
PE	0.5-200u (300u)
PTFE	1-200u
Nylon	80-500 mesh
Stainless Steel Mesh	10-50 mesh
Press Cloth	/



Conversion Between Mesh And Microm

目数 Mesh	微米 Micron	目数 Mesh	微米 Micron
2	8000	100	149
3	6700	110	165
4	4700	200	74
5	4000	500	25
8	2400	625	20
10	1880	800	15
16	1000	1250	10
20	840	2500	5
30	560	3250	2
50	230	1000	1.3
80	180	12500	1

HOW TO CHOOSE FILTER BAG MATERIAL ACCORDING TO PH VALUE

PH Value Definition:

The hydrogen ion concentration index (PH) refers to the ratio of the total number of hydrogen ions in the solution to the total amount of substances. A value indicating the degree of acidity or alkalinity of a solution, that is, the negative value of the common logarithm of the concentration of hydrogen ions contained. pH=﹣1g[H ]



Acid Judgment:

At 25°C

Neutral solution, pH=7

Acidic aqueous solution, c (H ) >c (OH ), pH<7, the smaller the pH value, the stronger the acidity;

Alkaline aqueous solution, c (H ) <c (OH ), pH>7, the greater the pH value, the stronger the alkalinity.

In neutral solution at 100°C, pH=6



PH VALUE AND CONCENTRATION

Definition of concentrated acid:

Concentrated sulfuric acid, the mass fraction exceeds 70%, and the substance concentration is 18mol/L.

Concentrated hydrochloric acid, the mass fraction exceeds 37%, and the substance concentration is 12mol/L.

Nitric acid, the mass fraction exceeds 65%, the substance concentration is 8mol/L



PH represents acidity and alkalinity:

The acidity and alkalinity that can be expressed by PH, the concentration should be less than 1mol/L, when the concentration is 1mol/L, if it is acidic, the PH value is 0, if it is alkaline, the PH value is 14.

Concentrated sulfuric acid, concentrated nitric acid, and concentrated hydrochloric acid can not use the PH value to indicate that the mass fraction of dilute sulfuric acid is less than 4.5% can be used to indicate the PH value. When the mass fraction is 4.5%, the concentration is 1mol/L and the PH value is 0.

Dilute hydrochloric acid with a mass fraction of less than 9% can be expressed by PH value. When the mass fraction is 9%, the concentration is 1mol/L and the PH value is 0.

Dilute nitric acid with a mass fraction of less than 9% can be expressed by PH value. When the mass fraction is 9%, the concentration is 1mo1/L, and the PH PHI value is 0.

Applicable Range of PH Value

材质	使用PH值范围
Material	Applicable range of PH value
PP	1-13
PE	5-8
PET	PET fiber is stable to weak acid and weak base, and will decompose under the action of strong acid, strong base and water vapor
PTFE	1-14
Stainless Steel	1-14
Nylon	Different concentrations of organic acid, alkali or salt can cause the swelling, dissolution or hydrolysis of PA
