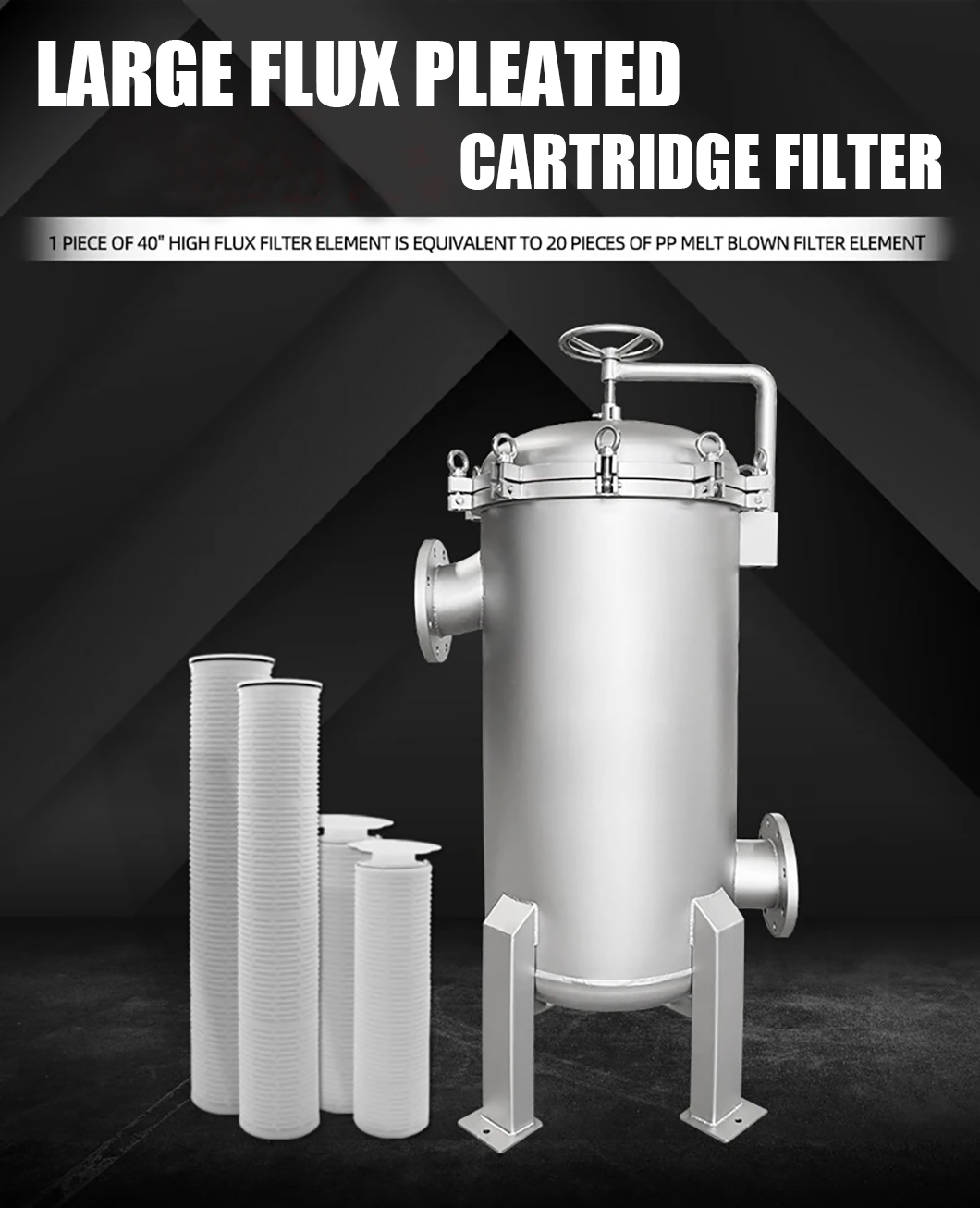

» Large flux pleated cartridge filter

FIELD OF APPLICATION

Food and beverage: juice, soda filtration; Syrup, additive filtration; Oil filter.
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration.
Automotive: oil removal and filtration of electrophoretic paint; Filter varnish and finish.
Electronic industry: coolant filtration.
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration.
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products.
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration.

>>>PRODUCT DESCRIPTION

Model	Filter cartridge	cartridge Qty	Connection	Max.Flow (m3/h)	Working Pressure(MPa)
INCE-1D	40”	1	DN50	40	0.6
INCE-2C40N	40”	2	DN50-DN100	80	0.6
INCE-3C40N	40”	3	DN80-DN100	120	0.6
INCE-4C40N	40”	4	DN80-DN100	160	0.6
INCE-5C40N	40”	5	DN80-DN100	200	0.6
INCE-6C40N	40”	6	DN80-DN100	240	0.6
INCE-7C40N	40”	7	DN80-DN100	280	0.6
INCE-8C40N	40”	8	DN100-DN200	320	0.6
INCE-10C40N	40”	10	DN150-DN200	400	0.6
INCE-12C40N	40”	12	DN150-DN250	480	0.6
INCE-14C40N	40”	14	DN200-DN250	560	0.6
INCE-16C40N	40”	16	DN200-DN300	640	0.6
INCE-18C40N	40”	18	DN250-DN350	720	0.6
INCE-20C40N	40”	20	DN250-DN400	800	0.6
INCE-22C40N	40”	22	DN300-DN450	880	0.6
INCE-24C40N	40”	24	DN350-DN450	960	0.6



>>>ADVANTAGES

LARGE-FLUX FILTRATION BETTER PRESSURE-BEARING, LARGER FLOW

The large-flux pleated filter element abandons the pp melt-blown filter element used in the traditional filter, and uses a large-flux filter  strengthen the thickened frame after thousands of anti-rupture experiments. Multi-layer filter membrane is laminated with high interception efficiency.The maximum water consumption of the large-flux filter element can reach 50m3/h,which can make the filter smaller and more compact.The replacement of the filter element is easier and faster,and the operating cost is lower.

THICKEN THE SKELETON
Strengthen and thicken 4.2mm, PP inner frame,through thousands of anti-rupture experiments.

NUMBER OF PLEATS DEEP
The number of pleats and pleat depth of each filter element are reasonable, no dead ends are filtered, and the filtering flow is large.

HOT MELTWELDING
Using ultrasonic hot-melt welding technology, no glue, no leakage, no secondary pollution.

MULTI-LAYER PROGRESSIVE FILM
Multi-layer filter membrane is laminated with high interception efficiency, which can achieve 0.1um filtration.

PERFORMANCE CHARACTERISTICS OF LARGE FLUX FILTER
1.Use a smaller number of filter elements, reducing labor and operating costs; large flow means using a smaller size filter housing,reducing investment costs and saving floor space;
2.The replacement of the filter element is faster, simpler and safer;
2.The folding surface design of the filter element makes the pressure drop of the high flow filter element lower than other filter elements and has a longer life;
3.High filtration accuracy, uniform filter element pore size;
4.The filter element material has high cleanliness and no pollution to the filter medium;
5.High strength, high temperature resistance, and the filter element is not easy to deform.

FILTER GORE STRUOTURE
The thickened filter element seals the middle plate, which bears high pressure and is resistant to corrosion.The filter equipment of different structures can be customized according to the way of the inner/outer pressure of the filter element.

HIGH-PERFORMANCE PRECISION FILTER

ACCURACY CONVERSION	mesh	300	200	150	120	100	75	60	50	40	30
	um	50	75	100	125	150	200	250	300	375	500

LARGE FLUX FOLDED FILTER CARTRIDGE

0.2-500mm accuracy can be customized according to customer’s filtering requirements, support different specifications and models.
