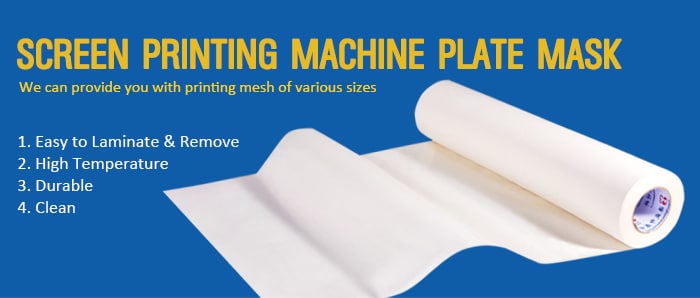

The platen paper uses imported parchment paper as the base material, and uses natural
rubber and tackifying resin as the main materials of the pressure-sensitive adhesive.
It is combined with specific additives, coating, packaging and other processes.
Its adhesion performance and anti-aging performance are excellent, and it is used in
printing and applique industries.
| Model | PM50 | PH50 | PM70 | PH70 | |
| Adhesion (g/25mm) | 200-400 | 400-700 | 200-400 | 400-700 | |
| Base Weight (g/㎡) | 50±3 | 50±3 | 70±3 | 70±3 | |
| Width (mm) | 500-1350 | 500-1350 | 500-1350 | 500-1350 | |
| Length (m) | 100 | 100 | 100 | 100 | |
| Storing(Months) | 12 | 12 | 12 | 12 | |
| Tensile strength | Horizontal | ≥2.0 | ≥2.0 | ≥3.0 | ≥3.0 |
| Vertical | ≥3.0 | ≥3.0 | ≥4.0 | ≥4.0 | |
| Tear strength | Horizontal | ≥320 | ≥320 | ≥600 | ≥600 |
| Vertical | ≥280 | ≥280 | ≥500 | ≥500 | |
Remark:The above datas shows only part of the product parameters,it is for reference only,please
contact us for more information for special needs.The corresponding sticky products can be dustomized according to customer demand.
Common Specifications
500mm*100m、550mm*100m、600mm*100m、650mm*100m、700mm*100m、1200mm*100m
Storage conditions
Do not transport or store with volatile organic solvents,avoid direct sunlight,rain.It should
be stored at a temperature of 10℃to 30℃ and a humidity of 40% to 70%,Buy for the best
performance within 6 months after purchase.Storage,the platen mask should be placed,so
as not to crush.
Before use, ensure that the platen clean hairless.
3.Then scrape the platen mask with hand or scraper, So that more closely linked to platen.
4.Draw lines on the platen mask positioning.
