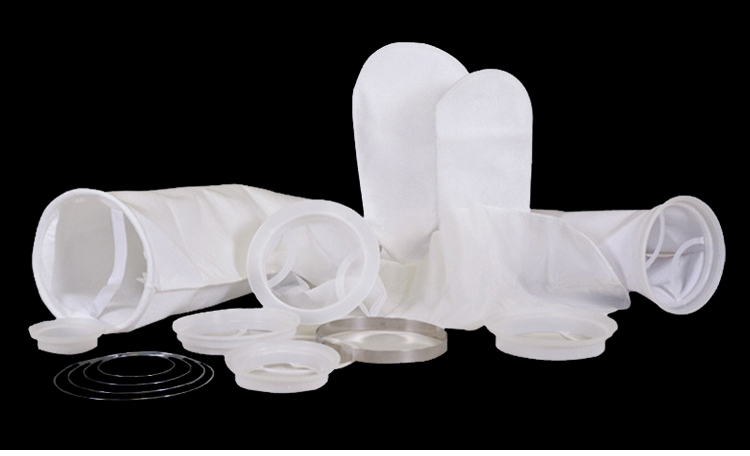

The liquid filter bag is a replaceable filter element of the bag filter system. Our bags are made of food-grade nylon material, 8-600 mesh is our best-selling mesh, and liquid filter bags can be customized in size.
And there are a variety of media types for you to choose from, such as polypropylene, polyester, nylon, porous PTFE film and stainless steel, etc.
| Product Name: | Liquid Filter Bag |
| Material: | PP/PE |
| Size: | 1# 180*410mm / 2# 180*810mm 3# 102*210mm / 4# 102*360mm 5# 152*560mm,Customized size |
| Filtration accuracy: | 0.5-200 microns |

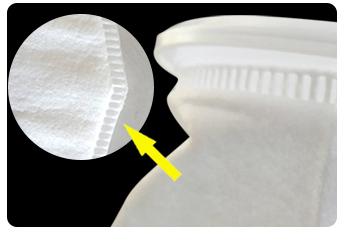

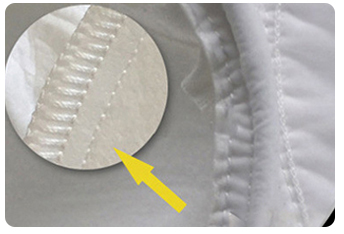

| Bag body types | Stitched, Welded |

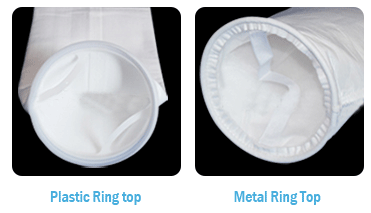

| Bag top types: | Plastic ring top, Metal ring top, Raw top, Drawstring top |
| Bag bottom: types: | “Arc” shape bottom, “V” shape bottom |
| Filter Bag Model | Filter Bag Area(m²) | Filter Bag Volume(Liter) | Filter Bag Diameter(Inch/cm) | Filter Bag Length(Inch/cm) |
| 1# | 0.19 | 7.9 | 7/18 | 16/41 |
| 2# | 0.41 | 17.3 | 7/18 | 32/81 |
| 3# | 0.05 | 1.4 | 4/10.2 | 8.25/21 |
| 4# | 0.09 | 2.5 | 4/10.2 | 14/36 |
| 5# | 0.22 | 8.1 | 6/15.2 | 22/56 |
| Micron (μm) |
1 | 3 | 5 | 10 | 20 | 25 | 50 | 70 | 100 | 125 | 149 |
| Mesh | 15000 | 5000 | 2500 | 1250 | 625 | 550 | 300 | 200 | 140 | 120 | 100 |
| Micron (μm) |
200 | 250 | 300 | 350 | 500 | 590 | 710 | 840 | 1000 | 1200 | 1400 |
| Mesh | 70 | 60 | 50 | 45 | 35 | 30 | 25 | 20 | 18 | 16 | 14 |
