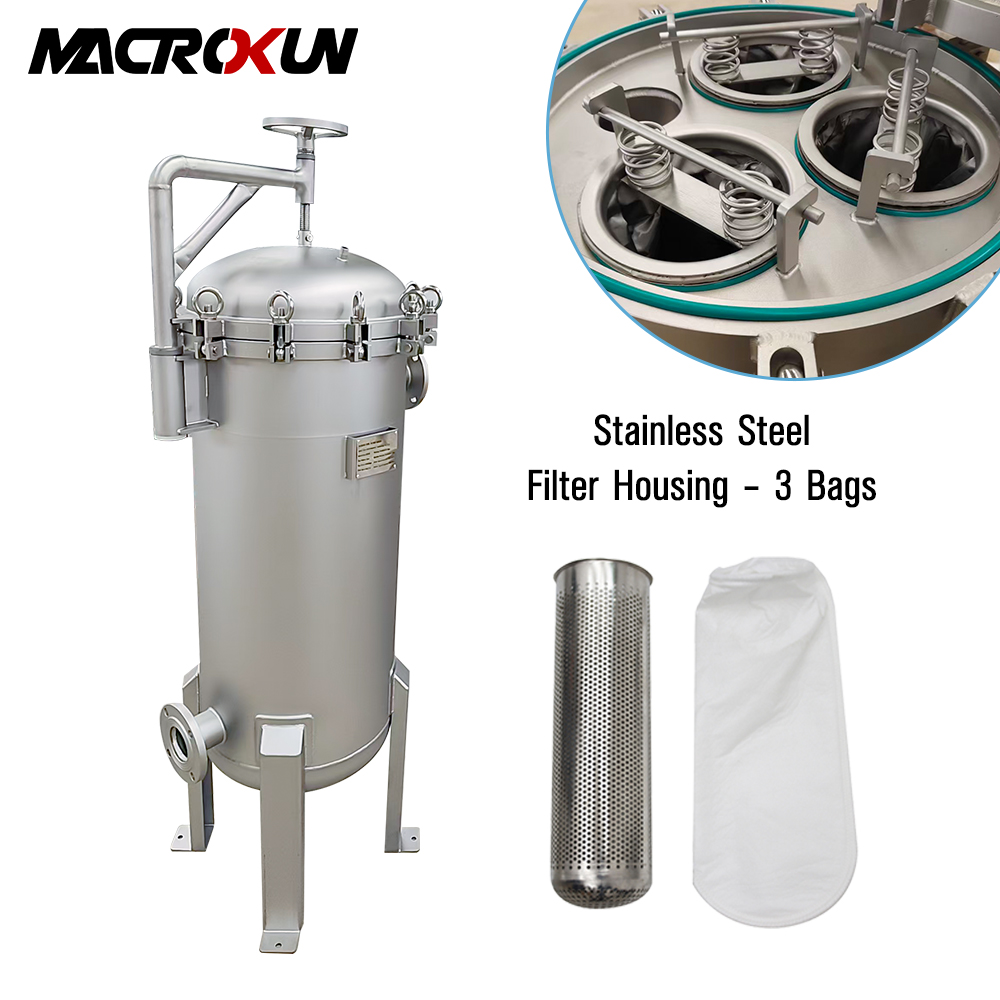

Multi bag filter housing is designed for high flow liquid filtration systems that require large filtration capacity and continuous operation. By using multiple filter bags in one housing, it significantly increases flow rate while maintaining stable filtration performance.
As an experienced multi bag filter housing manufacturer, we provide robust stainless steel housings for demanding industrial applications.
Designed for high flow rate filtration
Multiple filter bags working simultaneously
High dirt-holding capacity
Reduced frequency of bag replacement
Stable performance under continuous operation
Available in 304 / 316 / 316L stainless steel
Suitable for industrial liquid filtration systems
| Item | Specification |
|---|---|
| Housing Material | SS304 / SS316 / SS316L |
| Bag Quantity | 2 / 3 / 4 / 6 / 8 / Customized |
| Filter Bag Size | #1 / #2 |
| Flow Rate | Customized (High Flow) |
| Design Pressure | Up to 1.6 MPa (customizable) |
| Operating Temperature | Up to 120°C |
| Connection Type | Flange |
| Opening Type | Top Entry / Side Entry |
| Surface Finish | Polished / Mirror Polished |
All specifications can be customized based on system requirements.
Multi bag filter housing is widely used in:
Large-scale water treatment systems
Chemical and petrochemical processing
Paint, ink, and coating production lines
Oil and fuel filtration systems
Industrial process liquid filtration
High flow circulation systems
Multi bag filter housing
Ideal for high flow and large volume filtration.
Single bag filter housing
Suitable for low to medium flow applications.
For systems with increasing flow demand, multi bag filter housing provides higher efficiency and lower operating cost per unit flow.
| Material | Recommended Use |
|---|---|
| SS304 | Water and general industrial liquids |
| SS316 | Chemical processing |
| SS316L | Corrosive, food-grade, pharmaceutical liquids |
Our engineering team helps select the right material and configuration.
We offer OEM and customized multi bag filter housing, including:
Custom number of filter bags
High pressure design
Special inlet and outlet size
Industry-specific surface treatment
ASME / CE compliant design (on request)
Technical drawings are confirmed before production.
Direct manufacturer and factory supply
Stable quality control and inspection
Experience with high flow filtration projects
Global export capability
Competitive factory pricing
We focus on delivering reliable, long-term filtration solutions.
It is used for high flow liquid filtration where large capacity is required.
Typically 2 to 8 bags, with customization available.
Yes, material, pressure rating, and bag quantity can all be customized.
Looking for a reliable multi bag filter housing manufacturer for high flow applications?
Contact us now for technical support, drawings, and a competitive quotation.
