Electronic Tensiometer


Product Name: Electronic Tensiometer
Measurement error: ± 0.2N/CM
Measuring Range: 7—50N/cm
Units Of Measurement: N/cm
Net Weight: About 680g
Total Weight: About 900g
Package Size: 130*120*65mm
Warranty period: One year


Type of mesh Ty pes of printing Tension IN / CM
Ultra high tension mesh Circuit board and measuring scale 16-20
High-strength mesh Multi-color four-color
overprinting machine printing
High precision ultrafine mesh High-precision
multilayer circuit printing
High-precision polyester
mesh standard monofilament
Multi-color and
four-color overprint
Ordinary polyester
mesh standard monofilament
Flat objects 8-12


Electronic Tensiometer

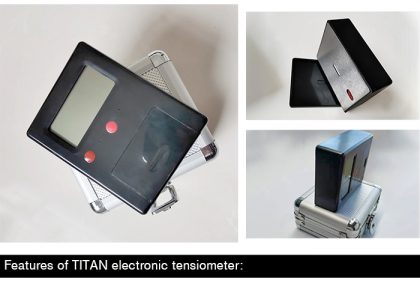

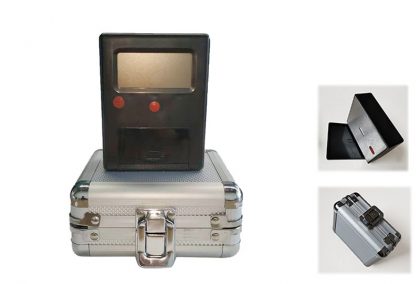

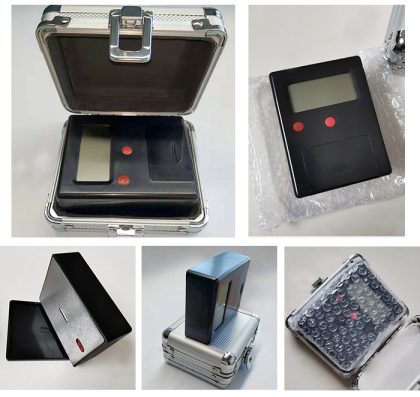

TITAN tension meter is suitable for the measurement of various screen tension.
Digital indicating tension, unit: N/CM. Display accuracy 0.1N/CM, the tension at any
place of the tensioned cloth can be detected, the radial tension and weft tension of the
measured screen can be distinguished, make the screen to reach the same tension in
the latitude and longitude direction. TITAN electronic type digital display tension meter
is a precision instrument, it needs to be kept dry and idust-free, and need to pay
attention to anti-fall and anti-shock.


High precision tension meter

Measurement Methods And Precautions

1, After installing the battery, place the tensiometer (and bottom bracket) on a flat

surface without vibration, click the power button, wait a few seconds, the display

shows 0.0, and then it can be used.

2, Tension meter after zero, put it on the clean tension screen, digital display of tension


3, Matters needing attention

When testing the tension, the  mesh must be suspended;

Tensiometer must be zeroed before use

It will automatically shut down after stopping measurement for 2 minutes;

Pay attention to anti-vibration:dropping the meter may damage or reduce the

measurement accuracy and sensitivity.
