| Model | Filter cartridge | cartridge Qty |
Connection | Max.Flow (m3/h) |
Working Pressure(MPa) |
| Macrokun-1D | 40″ | 1 | DN50 | 40 | 1.6 |
| Macrokun-2C40N | 40″ | 2 | DN50-DN100 | 80 | 1.6 |
| Macrokun-3C40N | 40″ | 3 | DN80-DN100 | 120 | 1.6 |
| Macrokun-4C40N | 40″ | 4 | DN80-DN100 | 160 | 1.6 |
| Macrokun-5C40N | 40″ | 5 | DN80-DN100 | 200 | 1.6 |
| Macrokun-6C40N | 40″ | 6 | DN80-DN100 | 240 | 1.6 |
| Macrokun-7C40N | 40″ | 7 | DN80-DN100 | 280 | 1.6 |
| Surface treatment: | Bright finish/sand blasting |
| Design pressure: | 1.1 MPa |
| Max. operating temperature: | 150 °C |
| Material: | SS304/SS316L |
| Connection: | Flange |

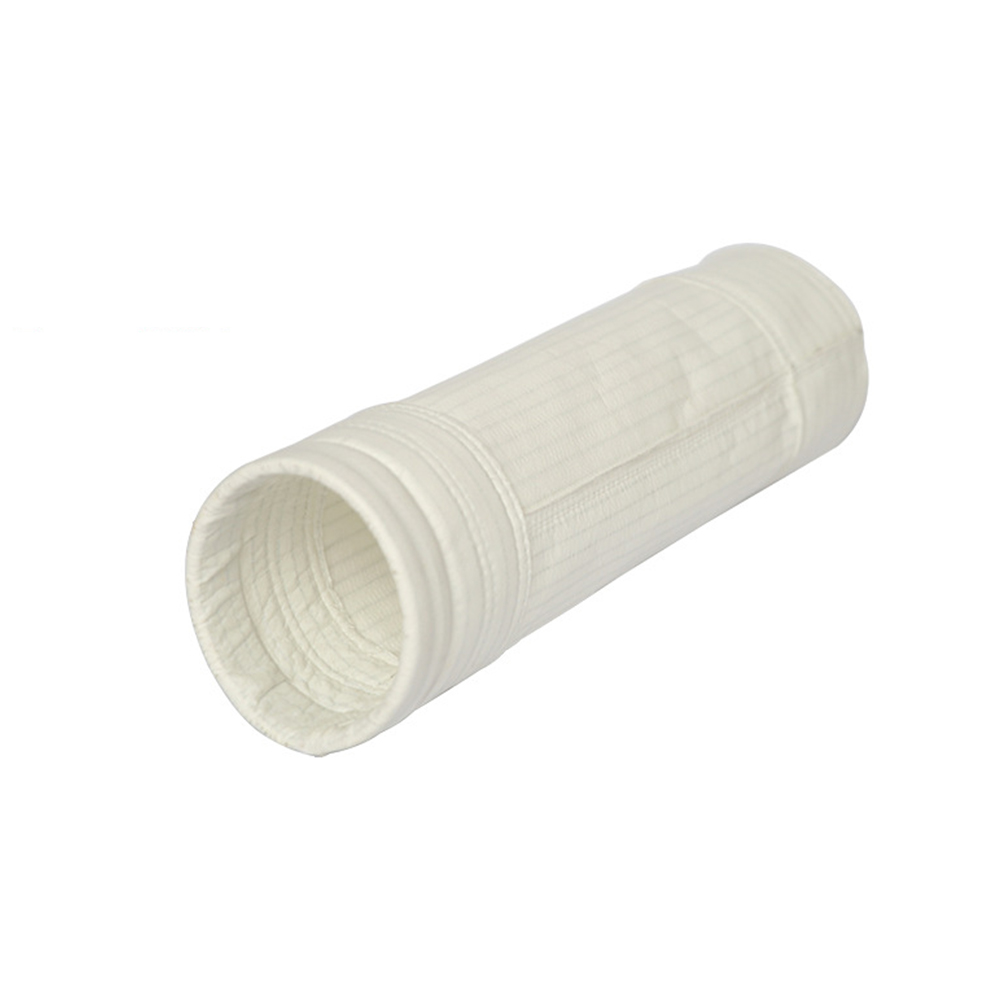

| Filter Media | Polyester (PET) |
|---|---|
| Length | 9.8″, 10″, 20″, 30″, 40″ |
| Inside diameter: | 4.5″ |
| Outside Diameter | 1.1″ (28mm) |
| Filtration rating: | 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 100μm |
| Core | Polypropylene |
| Outer Netting | Polypropylene |
| Filter Media | Carbon Impregnated Cellulose |
|---|---|
| Length | 5″, 9.75″, 9.8″, 10″, 20″, 30″ |
| Inside diameter: | 28mm Special ID can be customized |
| Outside Diameter | 2.5″(63mm) Special OD is accepted |
| Filtration rating: | 5μm, 10μm |
| End cap: | Plastisol |
| Winding material: | Polypropylene yarns, Skim cotton yarn, Fiberglass material etc |
|---|---|
| Skeleton material: | PP or Stainless steel |
| Outer dimensions: | 250 mm, 500 mm, 750 mm, 1000 mm, 10″, 20″, 30″, 40″ |
| Microns: | 1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, 70 μm, 100 μm |

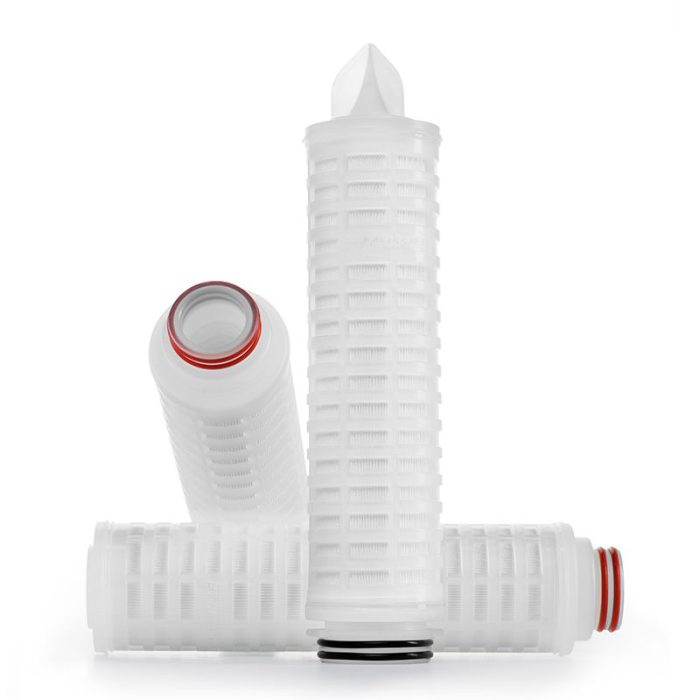

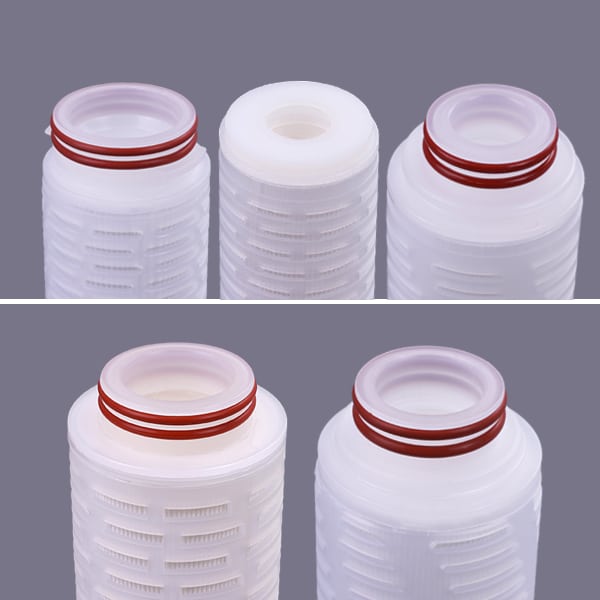

| Filter Media | Polypropylene Pleated |
|---|---|
| Length | 30″, 40″ |
| Outside Diameter | 6 inch(152mm) |
| Filtration Rating | 1.5μm, 1μm, 5μm, 10μm, 20μm |
| Support/Drainage | Polypropylene (PP) |
| Seal Material | EPDM, Buna-N, Viton, Silicone |
| Outside | Netting |
| Filter element | Type 1 | Type 2 | Type 3 | Type 4 | Type 5 | |
| Element length | 5″ | 10″ | 20″ | 20″ | 20″ | |
| Filtration level(Beta > 5000) | 10 µabs | 10 µabs | 5 µabs | 10 µabs | 10 µabs | |
| Max flow (1/min) | 15 | 30 | 60 | 60 | 170 | |
| Max flow (m³/h) | 1.9 | 1.8 | 3.6 | 3.6 | 10.2 | |
MACROKUN has established long-term and stable cooperative relations with many transportation companies such as China Post, DHL, FEDEX, USPS, UPS, etc. Of course, MACROKUN can also provide air and sea transportation. The powerful logistics system enables all MACROKUN'S Printing Mesh, Filter Mesh and Filter Bags and so on to be easily and efficiently transported to any place. For quotes and inquiries, please email our sales team.
