In industrial filtration systems, stainless steel cartridge filter housing is one of the most widely used and versatile filtration solutions. It provides reliable support for filter cartridges while ensuring stable flow, precise filtration, and long-term durability in demanding operating conditions.
From water treatment and chemical processing to food, beverage, and pharmaceutical applications, stainless steel cartridge filter housings are preferred for their strength, corrosion resistance, and adaptability. This article explains how they work, their main types, key design features, typical applications, and how to choose the right configuration for your filtration system.
A stainless steel cartridge filter housing is a pressure vessel designed to hold one or multiple filter cartridges. Fluid enters the housing, passes through the cartridge media, and exits with contaminants removed.
Compared with other filtration housings, cartridge filter housings are best suited for applications that require:
Fine filtration accuracy
Stable and predictable filtration performance
Easy cartridge replacement
Compatibility with a wide range of filter media
Using stainless steel as the housing material significantly improves resistance to corrosion, pressure, and temperature, making it ideal for industrial environments.
The working principle is straightforward:
Unfiltered fluid enters the inlet of the housing
Fluid flows through the filter cartridge from outside to inside (or inside to outside, depending on design)
Contaminants are captured by the filter media
Clean fluid exits through the outlet
As particles accumulate, the pressure differential across the cartridge increases. Once it reaches a specified limit, the cartridge is replaced to restore filtration efficiency.
Different process requirements call for different cartridge housing designs. The most common types are outlined below.
Single cartridge filter housing is designed to hold one filter cartridge and is typically used for:
Low flow rate systems
Pilot plants and laboratories
Point-of-use filtration
Final polishing filtration
Advantages include compact size, simple structure, and low initial cost. Single cartridge housings are often used where space is limited or flow demand is relatively small.
Multi cartridge filter housing contains multiple cartridges installed in parallel to handle higher flow rates. This design is common in industrial systems where continuous operation and high throughput are required.
Key benefits:
Higher flow capacity
Reduced pressure drop
Longer operating cycles
Flexible cartridge configurations
Multi cartridge housings are widely used in water treatment plants, chemical processing lines, and industrial utilities.
High pressure stainless steel cartridge filter housing is engineered for systems with elevated operating pressures. These housings typically feature:
Thicker vessel walls
Reinforced closures
High-strength sealing systems
They are commonly applied in oil and gas, petrochemical, and high-pressure chemical filtration processes.
Understanding the design features of stainless steel cartridge filter housing helps ensure proper selection and long-term performance.

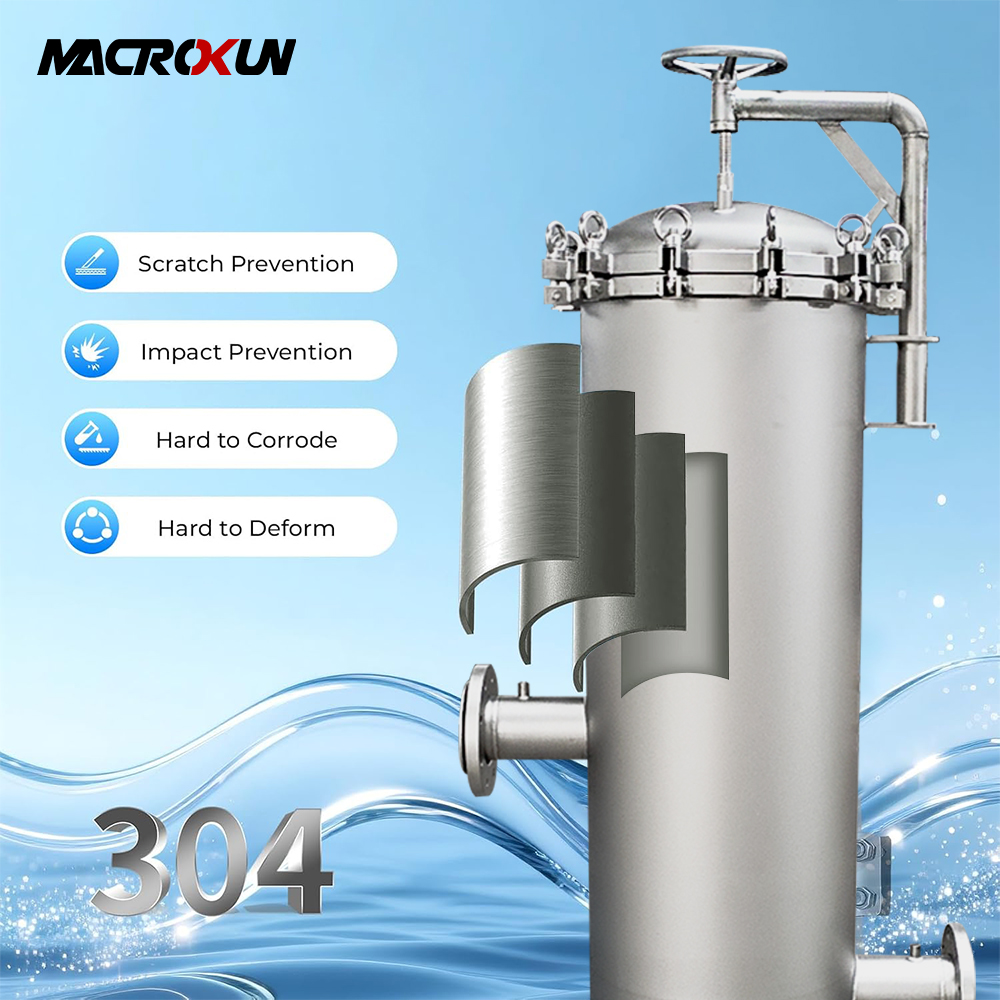

The housing body is usually manufactured from 304, 316, or 316L stainless steel. Material selection depends on fluid compatibility, corrosion resistance requirements, and industry standards.
Surface finish options may include:
Industrial finish for general applications
Polished or electropolished finish for sanitary use
Cartridges are typically available in standard lengths such as 10″, 20″, 30″, or 40″. The housing design must support proper cartridge alignment and sealing to prevent bypass.
Common cartridge types include:
Pleated cartridges
Melt-blown cartridges
Wound cartridges
Membrane cartridges
Seals and gaskets play a critical role in preventing leakage and ensuring filtration efficiency. Common sealing materials include:
EPDM
Silicone
Viton
PTFE
The choice depends on chemical compatibility and operating temperature.
Stainless steel cartridge filter housings are available with various inlet and outlet connections, such as:
Threaded connections
Flanged connections
Tri-clamp sanitary connections
Connection selection should match system piping and industry requirements.
In water treatment, stainless steel cartridge filter housing is used for pre-filtration, fine filtration, and polishing stages. It effectively removes suspended solids, sediments, and fine particles while maintaining stable flow.
Chemical processes often involve corrosive fluids and high temperatures. Stainless steel cartridge filter housings provide the durability and chemical resistance required for safe and reliable filtration.
For food and beverage applications, stainless steel cartridge filter housings help maintain product quality and hygiene. Sanitary designs support easy cleaning and compliance with industry standards.
Pharmaceutical production demands precise filtration and contamination control. Stainless steel cartridge filter housings support sterile filtration and are compatible with clean-in-place (CIP) processes.
While both are widely used, the choice depends on application requirements.
Cartridge filter housing is preferred when:
Fine filtration accuracy is required
Consistent filtration performance is critical
Absolute micron ratings are needed
Bag filter housing is more suitable for:
Higher dirt loading
Coarser filtration
Lower operating costs for pre-filtration
Many industrial systems use both types at different stages.
When selecting a cartridge filter housing, consider the following factors:
Determine the required system flow rate to select the appropriate number and size of cartridges.
Choose the correct micron rating based on contaminant size and process requirements.
Ensure the housing is rated for maximum operating conditions.
Select 304, 316, or 316L stainless steel based on fluid chemistry and corrosion risk.
Consider whether the housing must comply with sanitary or pressure vessel standards.
Proper maintenance improves performance and extends service life:
Monitor pressure differential regularly
Replace cartridges at recommended intervals
Inspect seals during cartridge changes
Clean the housing interior to prevent fouling
Well-maintained stainless steel cartridge filter housing ensures consistent filtration and reduces downtime.
Stainless steel cartridge filter housing is a critical component in modern industrial filtration systems. Its precise filtration capability, durable construction, and flexible design make it suitable for a wide range of industries and applications.
By understanding the different types, design features, and selection criteria, engineers and procurement professionals can choose the right stainless steel cartridge filter housing to achieve reliable filtration performance and long-term operational efficiency.
For a broader overview of housing types and applications, you may also explore our stainless steel filter housing guide, which covers bag, sanitary, and high-flow filtration solutions in detail.
