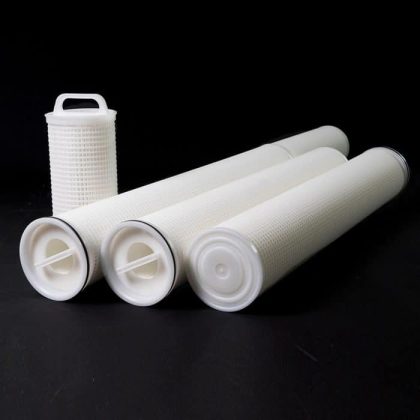

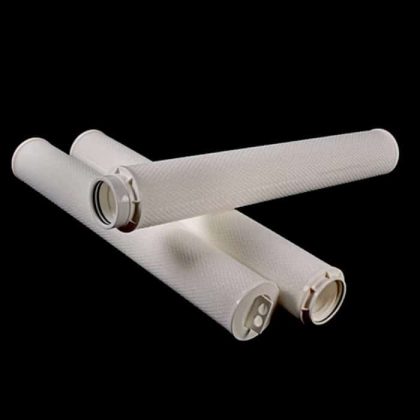

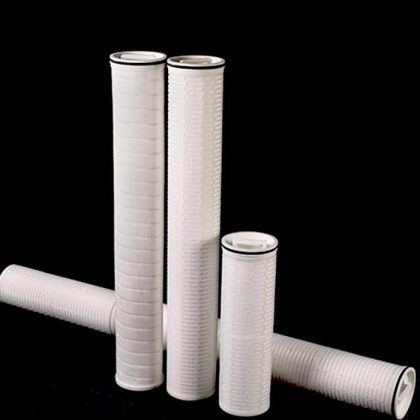

High flow filter cartridges are designed for high-volume liquid or air filtration, using a large-capacity design to reduce the number of elements needed and simplify maintenance. They work by passing the fluid through a pleated or depth filter media, which traps impurities, and are used in a variety of industries like municipal water, food and beverage, mining, and fine chemicals.
| Filter Media | Polypropylene Pleated |
|---|---|
| Length | 20″, 40″, 60″ |
| Outside Diameter | 6 inch (152mm) |
| Filtration Rating | 1μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm |
| Support / Drainage | Polypropylene (PP) |
| Center Core | Polypropylene |
| Filter Media | Polypropylene Pleated |
|---|---|
| Length | 30″, 40″ |
| Outside Diameter | 6 inch(152mm) |
| Filtration Rating | 1.5μm, 1μm, 5μm, 10μm, 20μm |
| Support/Drainage | Polypropylene (PP) |
| Seal Material | EPDM, Buna-N, Viton, Silicone |
| Outside | Netting |
| Filter Media | Polypropylene (PP) Pleated |
|---|---|
| Length | 20″, 40″, 60″ |
| Outside Diameter | 6 inch(152mm) |
| Filtration Rating | 1μm – 100μm |
| Support / Drainage | Polypropylene (PP) |
| End Cap Material | Glass fiber reinforced Polypropylene (PP) |
| Seal Material | EPDM, Buna-N, Viton, Silicone |
