If you’re looking for a reliable filtration solution, look no further than Macrokun’s liquid filter cartridges. Our products are engineered to the highest standards and provide superior performance and durability. With our advanced design features and materials, these filters offer excellent flow rates, unsurpassed dirt-holding capacity, chemical compatibility, and long service life. Discover why so many trust us with their filtration needs – try out a Macrokun liquid filter cartridge today!
| Filter Media | Polyester (PET) |
|---|---|
| Length | 9.8″, 10″, 20″, 30″, 40″ |
| Inside diameter: | 4.5″ |
| Outside Diameter | 1.1″ (28mm) |
| Filtration rating: | 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 100μm |
| Core | Polypropylene |
| Outer Netting | Polypropylene |

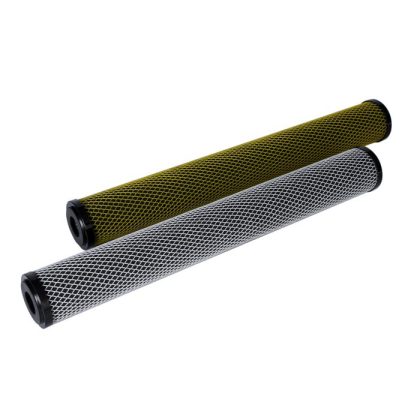

| Filter Media | Carbon Impregnated Cellulose |
|---|---|
| Length | 5″, 9.75″, 9.8″, 10″, 20″, 30″ |
| Inside diameter: | 28mm Special ID can be customized |
| Outside Diameter | 2.5″(63mm) Special OD is accepted |
| Filtration rating: | 5μm, 10μm |

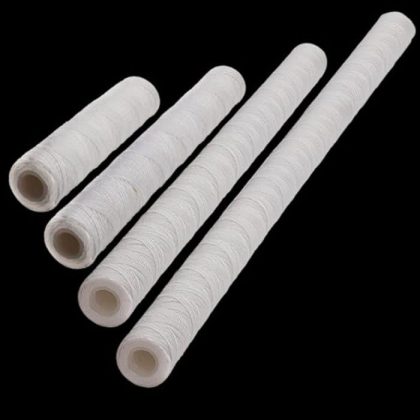

| End cap: | Plastisol |
| Winding material: | Polypropylene yarns, Skim cotton yarn, Fiberglass material etc |
|---|---|
| Skeleton material: | PP or Stainless steel |
| Outer dimensions: | 250 mm, 500 mm, 750 mm, 1000 mm, 10″, 20″, 30″, 40″ |
| Microns: | 1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, 70 μm, 100 μm |

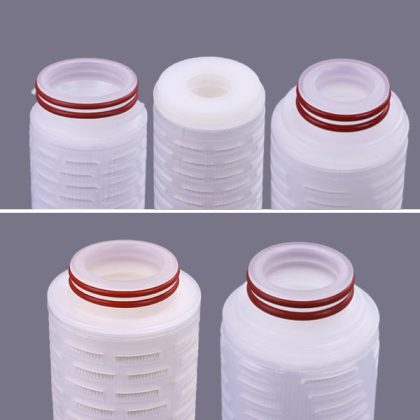

| Filter Media | Polypropylene Pleated |
|---|---|
| Length | 20″, 40″, 60″ |
| Outside Diameter | 6 inch (152mm) |
| Filtration Rating | 1μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm |
| Support / Drainage | Polypropylene (PP) |
| Center Core | Polypropylene |

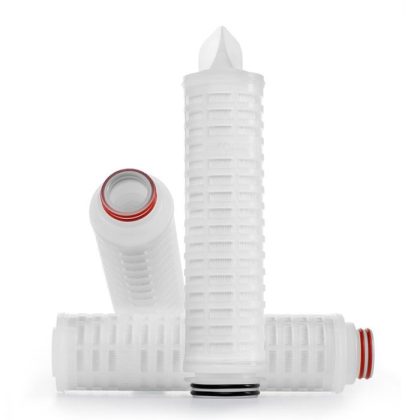

| Filter Media | Polypropylene Pleated |
|---|---|
| Length | 30″, 40″ |
| Outside Diameter | 6 inch(152mm) |
| Filtration Rating | 1.5μm, 1μm, 5μm, 10μm, 20μm |
| Support/Drainage | Polypropylene (PP) |
| Seal Material | EPDM, Buna-N, Viton, Silicone |
| Outside | Netting |
| Filter Media | Polypropylene (PP) Pleated |
|---|---|
| Length | 20″, 40″, 60″ |
| Outside Diameter | 6 inch(152mm) |
| Filtration Rating | 1μm – 100μm |
| Support / Drainage | Polypropylene (PP) |
| End Cap Material | Glass fiber reinforced Polypropylene (PP) |
| Seal Material | EPDM, Buna-N, Viton, Silicone |
| Filter element | Type 1 | Type 2 | Type 3 | Type 4 | Type 5 | |
| Element length | 5″ | 10″ | 20″ | 20″ | 20″ | |
| Filtration level(Beta > 5000) | 10 µabs | 10 µabs | 5 µabs | 10 µabs | 10 µabs | |
| Max flow (1/min) | 15 | 30 | 60 | 60 | 170 | |
| Max flow (m³/h) | 1.9 | 1.8 | 3.6 | 3.6 | 10.2 | |

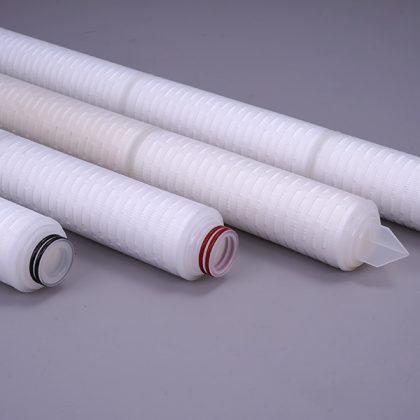

| Media: | Hydrophilic PTFE membrane |
|---|---|
| Support/Diversion Layer: | PP |
| Shell/Center Rod/End Cap: | PP |
| Length: | 10”、20”、30”、40″ |
| Outer diameter: | φ69 mm |
| Maximum operating temperature: | 80°C |

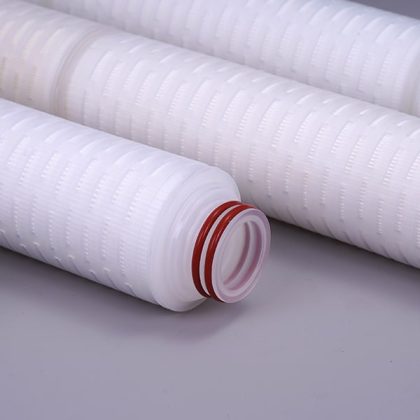

| Media: | Hydrophobic PTFE membrane |
|---|---|
| Support/Diversion Layer: | PP |
| Shell/Center Rod/End Cap: | PP |
| Length: | 10”、20”、30”、40″ |
| Outer diameter: | φ69 mm |
| Max operating temperature: | 80°C |

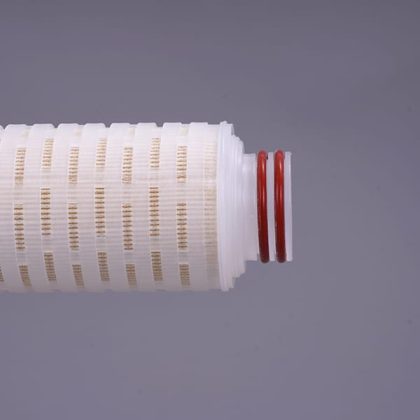

| Media: | Asymmetric PES membrane |
|---|---|
| Support/drainage layer： | PP |
| Cage/core/end cap: | PP |
| Outer diameter: | φ69mm |
| Length: | 10″, 20″, 30″, 40″ |
| Max. operating temperature: | 80℃ |
| Filter cartridge diameter: | 69.1 mm |
MACROKUN has established long-term and stable cooperative relations with many transportation companies such as China Post, DHL, FEDEX, USPS, UPS, etc. Of course, MACROKUN can also provide air and sea transportation. The powerful logistics system enables all MACROKUN'S Printing Mesh, Filter Mesh and Filter Bags and so on to be easily and efficiently transported to any place. For quotes and inquiries, please email our sales team.
