The filter bag sealing pressure piece adopts the top cover spring clamping device, and the round stainless steel stamping ring clamps the filter bag 360°.

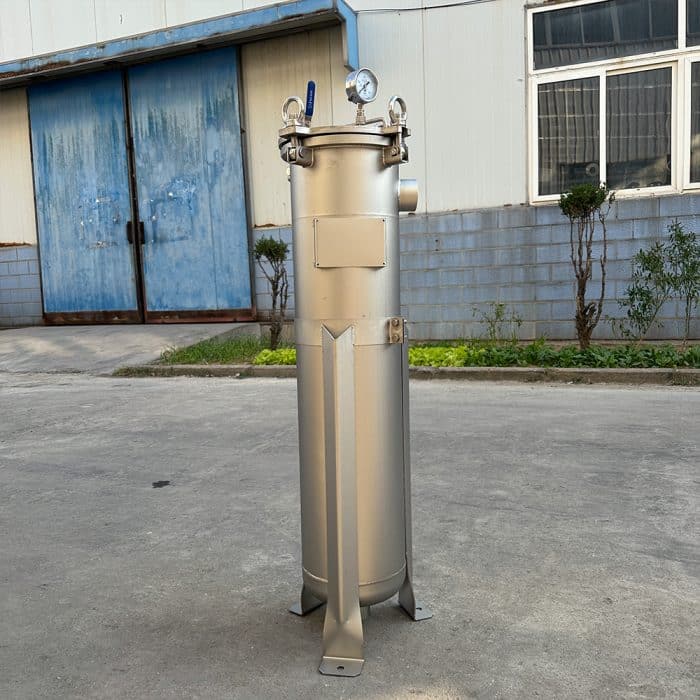

The single bag filter combines the years of customer experience in the filtration industry. The whole machine is made of materials such as 304/316L/2205, and is matched with our independently developed precision filtration consumables.
| Model | Filter Bag# | Filter Bag Qty |
Filtration Area (㎡) |
Connection | Max.Flow (m3/h) |
Working Pressure(MPa) |
| INCE-1D | 1# | 1 | 1.25 | DN50 | 20 | 1.6 |
| INCE-2D | 2# | 1 | 1.5 | DN50 | 40 | 1.6 |
| INCE-2P2S | 2# | 2 | 1 | DN50-DN100 | 70 | 1.6 |
| INCE-3P2S | 2# | 3 | 1.5 | DN80-DN100 | 100 | 1.6 |
| INCE-4P2S | 2# | 4 | 2 | DN80-DN100 | 140 | 1.6 |
| INCE-5P2S | 2# | 5 | 2.5 | DN80-DN100 | 175 | 1.6 |
| INCE-6P2S | 2# | 6 | 3 | DN80-DN100 | 240 | 1.6 |
| INCE-7P2S | 2# | 7 | 3.5 | DN80-DN100 | 245 | 1.6 |
| INCE-8P2S | 2# | 8 | 4 | DN100-DN200 | 280 | 1.6 |
| INCE-10P2S | 2# | 10 | 5 | DN150-DN200 | 350 | 1.6 |
| INCE-12P2S | 2# | 12 | 6 | DN150-DN250 | 420 | 1.6 |
| INCE-14P2S | 2# | 14 | 7 | DN200-DN250 | 490 | 1.6 |
| INCE-16P2S | 2# | 16 | 8 | DN200-DN300 | 560 | 1.6 |
| INCE-18P2S | 2# | 18 | 9 | DN250-DN350 | 630 | 1.6 |
| INCE-20P2S | 2# | 20 | 10 | DN250-DN400 | 700 | 1.6 |
| INCE-22P2S | 2# | 22 | 11 | DN300-DN450 | 770 | 1.6 |
| INCE-24P2S | 2# | 24 | 12 | DN350-DN450 | 840 | 1.6 |
