The Screen Printing Squeegee rack is used for placing screen printing squeegee and scraper

Product Information
Product Code 006326
Product Name MK-2016GJJ Mobile Type Screen Printing Material Rack
HS Code 8443911900
Product Color Blue
Machine Using Material Steel plate
Machine Surface Treatment Electrostatic spraying
Attachment Material Stainless steel or zinc plating, nickel plating
Machine Size 33*31*31in
Net Weight 66lb
Gross Weight 85lb
Packing Size 30*18*7in
Packing Volume 0.07 m³
Packing Material Export fumigation-free wooden case

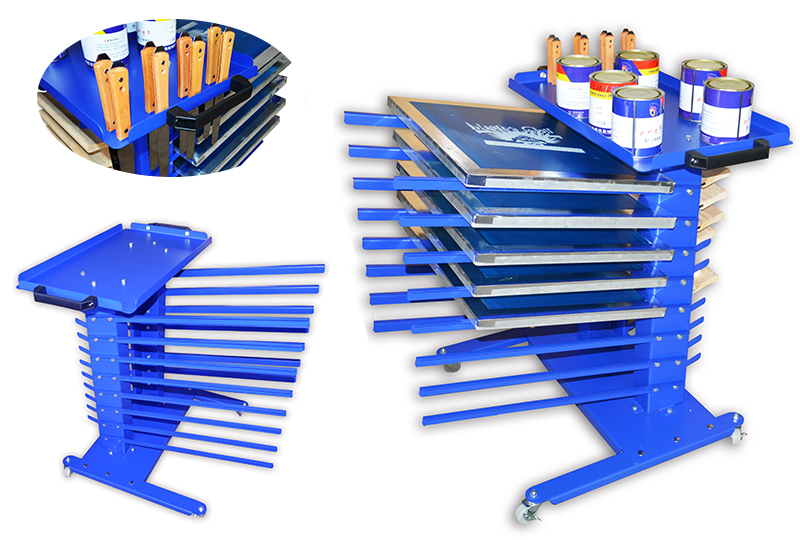

MK-2016GJJ Mobile Type Screen Printing Material Rack
Product Description

1. Screen frames placed area: can place screen frames 8 The screen frame and a length of 65 cm (25 inches); the width of45 cm (18 inches), each layer of the rack height of 5.5 cm (2 inches); the length and width of the screen can be placed in size (diameter) 65 cm (25 inches) and 42 cm (17 inches)within the various screen; such as screen too small, on each shelf on a layer of wood or cardboard as a plate placing screen.

2. Place the area: squeegee frame and a length of 9 cm (3.5 inches); the width of 26 cm (10 inches); each layer of therack height of 3.7 cm (1.5 inches); can also place the squeegee length of 26 cm (10 inches) above the squeegee (such as the squeegee is too small, can be in on every shelf on a layer of wood or cardboard as a plate placed squeegee).

MK-2016GJJ Mobile Type Screen Printing Material Rack

3. Steel spatulas placed area: the top platform area has 8 pieces 4.5 cm long, 0.3 cm wide inserting hole and placed 8 to various sizes of the Steel Spatulas .

4. Printing ink or paste modulation and display areas: the area (excluding the Steel Spatulas inserting hole area) 63 cm long,40 cm wide,and placed 10 cm in diameter and 24 cans of printing materials.

5. Mobile type screen printing material rack at the bottom there are four two inch universal with brake casters; can move any direction in the work area.

MK-2016GJJ Mobile Type Screen Printing Material Rack
Product Advantages

1. Using 2-3 mm steel laser cutting process, beautiful appearance.

2. The appearance of the use of advanced electrostatic spraying process, acid and alkali resistance, high and low temperature resistance; friction resistance; rust, resistant to all kinds of cleaning cleaning agent.

3. the frame for the upper and lower three layers of design; users only need 15-20 minutes according to the installation diagram can be installed to complete.

4. the combination design makes installation machine for a long 85 cm,80 cm wide,80 cm high (0.54 cubic meters) of the frame of the packing size of only 76 cm long, 46 cm wide, 18 cm high (0.06 cubic meters), inside the metal parts completely isolated packaging, not collide in the transportation process; up and down, left and right, both before and after the use foam board and board package And fully meet the quality standards of European and American products.

MK-2016GJJ Mobile Type Screen Printing Material Rack

The proposed use of the method:

1.the screen, the screen printing products to put screen frame squeegee steel spatulas and ink from the shelf to the tool frame.

2.the printing of all ink, thinner or pigment paste, placed in the hanging storage area adjustment; and modulation printing materials directly in the area.

3.the table of the tool holder is moved to the position corresponding to the printing machine on the installation screen – placed printing materials placed scraper.

4.printing.

5.after the completion of printing, the screen, then placed the scraper tool frame, move to the network box, scraper, inking knife cleaning cleaning again after placedinto the tool frame.

6.mobile tool racks to rearrange the shelf warehouse area.
