| Brand: | Macrokun |
| Filter type: | Cartridge filter |
| Model: | 001 |
| Filter material type: | Non-woven fabric |
| Main material: | Stainless steel |
| Dimensions: | 400-1100(mm) customizable |
| Equipment weight: | 65-2000 (Kg) |
| Principle: | Pressure filtration |
| Performance: | Precision filtration, high efficiency filtration |
| Applicable objects: | Water treatment, pharmaceutical, food and beverage |

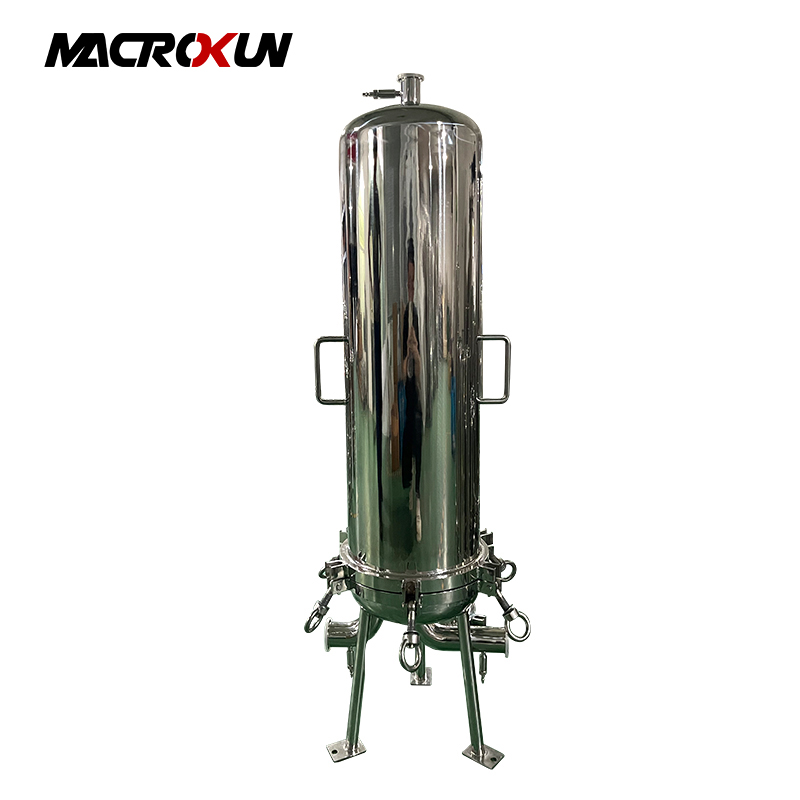

The microporous filter is made of 304/316L stainless steel and uses a folded filter element as the filter element. It can filter liquids, gases, microparticles larger than 1.01um and bacteria. It has high filtration accuracy, fast filtration speed, less adsorption, no medium shedding, no leakage, acid and alkali resistance, corrosion resistance, easy cleaning, and can be backwashed. It is a special filtration equipment for biomedicine, electronics, beer and beverage, chemical water treatment and other industries.
| Brand: | Macrokun |
| Filter type: | Cartridge filter |
| Model: | 001 |
| Filter material type: | Non-woven fabric |
| Main material: | Stainless steel |
| Dimensions: | 400-1100(mm) customizable |
| Equipment weight: | 65-2000 (Kg) |
| Principle: | Pressure filtration |
| Performance: | Precision filtration, high efficiency filtration |
| Applicable objects: | Water treatment, pharmaceutical, food and beverage |
Details display
SELECTION OF MICROPOROUS FILTERS
Filter cartridges are available in 1-core, 3-core, 5-core, 7-core, 9-core and 11-core versions.
The lengths of folded filter cartridges are 10″, 20″, 30″ and 40″.
Filter cartridge materials are PP, PTFE, PES, PVDF and nylon.
Filter accuracies are: 1.1um, 1.22um, 1.45um, 1um, 3um, 5um and 10um.
Hydrophobic (for gas) and hydrophilic (for liquid) filter cartridges can be selected according to needs.
CUSTOMIZABLE CONNECTION PARTSOuter filter can be disassembled and cleaned, which is convenient and worry-free; the surface is mirror-polished.valve will automatically open to start drainage.
Our 6000m^2 physical factory can tailor filters of different materials and thicknesses for customers according to on-site working conditions, such as the pH value of liquid filtration materials and the pressure of customer on-site pipelines, to protect customers’applications.
EXHIBITION
FILTER ADAPTATION FIELD
Application: petrochemical industry, fine chemical industry, pharmaceutical chemical industry,electric power, paper making, water treatment system, automobile industry,mechanical processing, coating, electronics, etc.
PACKAGING & SHIPPING
MACROKUN has established long-term and stable cooperative relations with many transportation companies such as China Post, DHL, FEDEX, USPS, UPS, etc. Of course, MACROKUN can also provide air and sea transportation. The powerful logistics system enables all MACROKUN'S Printing Mesh, Filter Mesh and Filter Bags and so on to be easily and efficiently transported to any place. For quotes and inquiries, please email our sales team.
