PP Pleated Filter Cartridges are made of Polypropylene fiber media. PP pleated cartridge filters provide excellent filtration efficiency and chemical compatibility across a wide range of liquid filtration process applications.
| Filter element | Type 1 | Type 2 | Type 3 | Type 4 | Type 5 | |
| Element length | 5″ | 10″ | 20″ | 20″ | 20″ | |
| Filtration level(Beta > 5000) | 10 µabs | 10 µabs | 5 µabs | 10 µabs | 10 µabs | |
| Max flow (1/min) | 15 | 30 | 60 | 60 | 170 | |
| Max flow (m³/h) | 1.9 | 1.8 | 3.6 | 3.6 | 10.2 | |
PP Pleated Filter Cartridges are made of Polypropylene fiber media. PP pleated cartridge filters provide excellent filtration efficiency and chemical compatibility across a wide range of liquid filtration process applications.

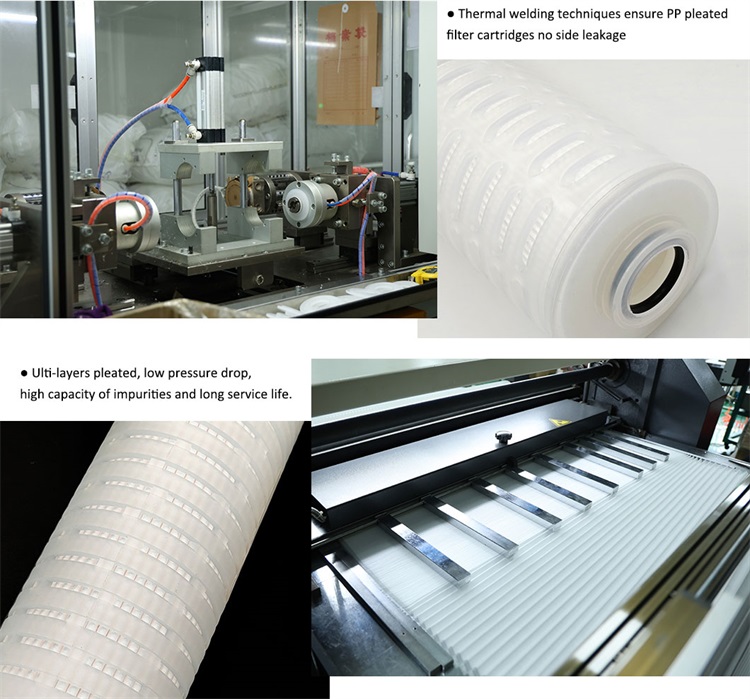

PP pleated filter cartridges adopts thermal welding techniques to seal all components, so no side leakage happened, thus optimizing
100% integrity of PP pleated cartridge. PP pleated filter cartridges have large surface area that allows greater system flow rate and higher
dirt holding capacity than depth filters. PP pleated cartridges are widely used in prefiltration field requiring high purity.
PP Pleated Filter Cartridges Type
| Filter element | Type 1 | Type 2 | Type 3 | Type 4 | Type 5 | |
| Element length | 5″ | 10″ | 20″ | 20″ | 20″ | |
| Filtration level(Beta > 5000) | 10 µabs | 10 µabs | 5 µabs | 10 µabs | 10 µabs | |
| Max flow (1/min) | 15 | 30 | 60 | 60 | 170 | |
| Max flow (m³/h) | 1.9 | 1.8 | 3.6 | 3.6 | 10.2 | |
| Max flow (gpm) | 4 | 7.9 | 15.6 | 15.6 | 44.9 | |
| Element inner diameter | 27 mm (1.06″) |
27 mm (1.06″) |
27 mm (1.06″) |
27 mm (1.06″) |
46 mm (1.8″) |
|
| Element outer diameter | 70 mm (2.75″) |
70 mm (2.75″) |
70 mm (2.75″) |
70 mm (2.75″) |
115 mm (4.5″) |
|
| Effective surface | 1.28 m² (3 sq.ft.) |
1.55 m² (6 sq.ft.) |
1.1 m² (12 sq.ft.) |
1.1 m² (12 sq.ft.) |
2.45 m² (26 sq.ft.) |
|
| Max differentialpressure at 24 ℃（75 °F） | 4 barg (58 psig) |
4 barg (58 psig) |
4 barg (58 psig) |
4 barg (58 psig) |
3 barg (43.Spsig) |
|
| Max operating temperature |
50℃(122 °F) | 50℃ (122 °F) |
50℃ (122 °F) |
50℃ (122 °F) |
50℃ (122 °F) |
|
| Materials | Element | Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene |
| End caps | Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene | |
| Seals | Buna-N | Buna-N | Buna-N | Buna-N | Buna-N | |
| Net weight | 1.21 kg (1.46 lb) | 1.27 kg (1.6 lb) | 1.47 kg (1.1 lb) |
1.48 kg (1.1 lb) |
1.35 kg (3.1 lb) |
|
| Max. differential pressure before replacement of filter | 2 barg (29 psig) |
2 barg (29 psig) |
2 barg (29 psig) |
2 barg (29 psig) |
2 barg (29 psig) |
|
| Code number | 180Z0037 | 180X5225 | 180Z0019 | 180Z0006 | 180Z0285 | |

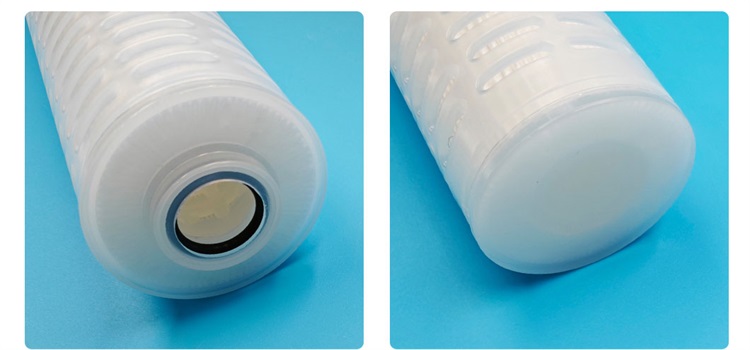

Single O-ring located inside Flat peak cover

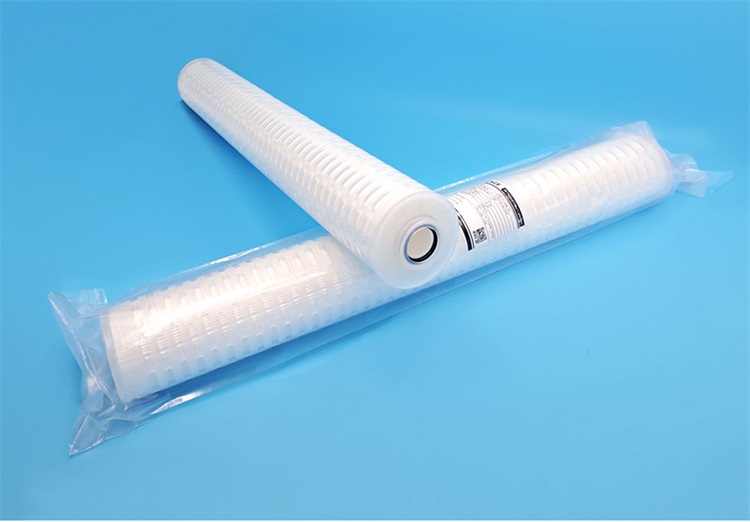

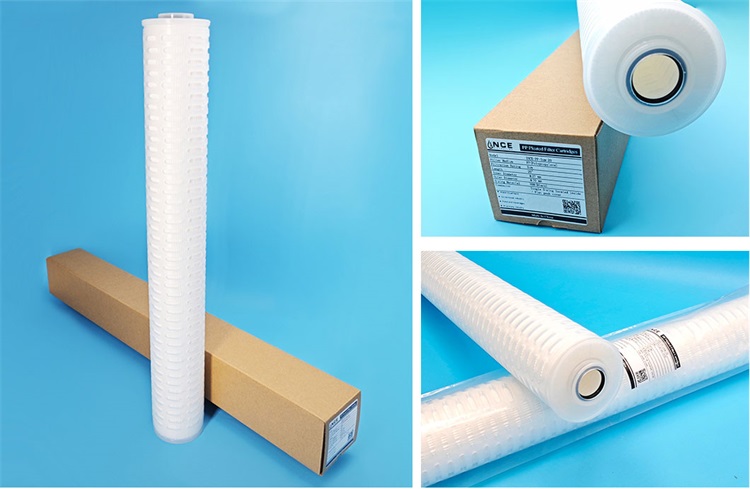

PP Pleated Filter Cartridges DETAILS
PP Pleated Filter Cartridges Feature:
PP Pleated Filter Cartridges Application :
WHY CHOOSE US

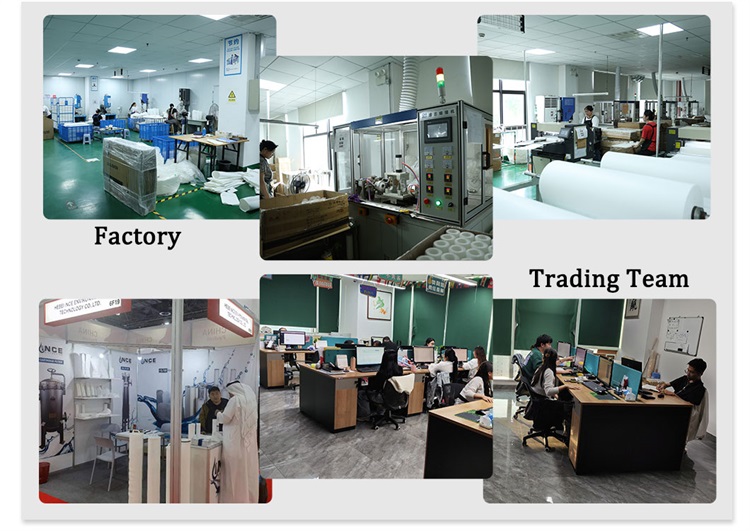

About Us:
Hebei Ince Environmental Technology Co., Ltd is a professional factory is committed to R&D, design, produce and sales in the field of Products related to filtration field the main products :
Liquid Filter Bags, High Flow Filter Cartridges, Pleated Filters Cartridge, Membrane Filter Cartridges, Melt Blown Filter Cartridges, String Wound Cartridges,Filter Housing, Activated Carbon Filters Cartridge etc..
Ince high-class filter cartridges are widely used in Pre RO/ID Water Filtration, Industrial Water Treatment, Chemicals &Solvents, Power Plant Water Treatment, Food & Beverage, Microelectronics, Petrochemical etc.

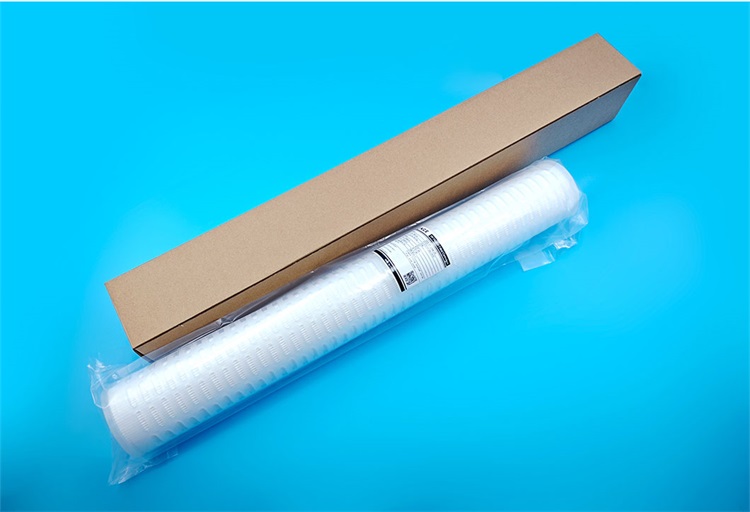

Packaging & Shipping:
Packaging:
climate and with good resistance to moisture and shocks.
Delivery time:
Shipping:Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)
Contacts:
If you have interest in any kind of our product, warmly welcome your inquiry.
We will supply our best quality products and service for you.
