Macrokun offer a wide range of filter housings. Filter housings are an easy to use and cost effective product for the filtration of liquids containing higher concentrations of coarse solids. They are particularly beneficial when handling batches of various liquids. Ince bag filter housings can be used as end-filtration or for the polishing of liquids with extremely low concentrations of solids.

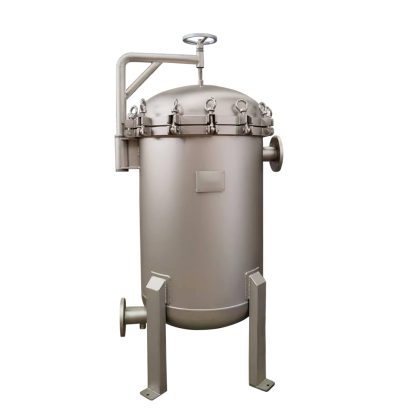

Macrokun offer customised single and multi bag filter housings to suit specific applications for higher temperatures, higher pressures or different housing materials.
| Model | Filter cartridge | cartridge Qty |
Connection | Max.Flow (m3/h) |
Working Pressure(MPa) |
| Macrokun-1D | 40″ | 1 | DN50 | 40 | 1.6 |
| Macrokun-2C40N | 40″ | 2 | DN50-DN100 | 80 | 1.6 |
| Macrokun-3C40N | 40″ | 3 | DN80-DN100 | 120 | 1.6 |
| Macrokun-4C40N | 40″ | 4 | DN80-DN100 | 160 | 1.6 |
| Macrokun-5C40N | 40″ | 5 | DN80-DN100 | 200 | 1.6 |
| Macrokun-6C40N | 40″ | 6 | DN80-DN100 | 240 | 1.6 |
| Macrokun-7C40N | 40″ | 7 | DN80-DN100 | 280 | 1.6 |

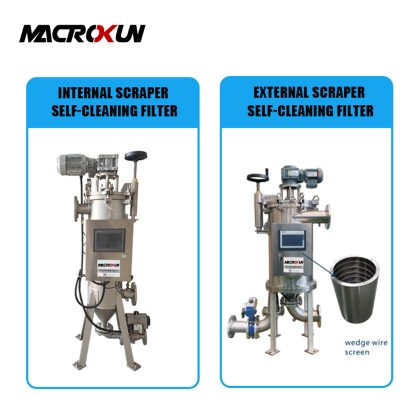

| Filter type: | Fully automatic self-cleaning filter |
| Filter material type: | Non-woven fabric |
| Main material: | Stainless steel |
| Dimensions: | 159-1000 (mm) customizable |
| Equipment weight: | 65-2000 (Kg) |
| Surface treatment: | Bright finish/sand blasting |
| Design pressure: | 1.1 MPa |
| Max. operating temperature: | 150 °C |
| Material: | SS304/SS316L |
| Connection: | Flange |

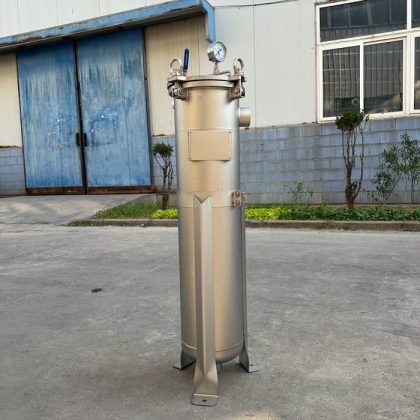

The single bag filter combines the years of customer experience in the filtration industry. The whole machine is made of materials such as 304/316L/2205, and is matched with our independently developed precision filtration consumables.
MACROKUN has established long-term and stable cooperative relations with many transportation companies such as China Post, DHL, FEDEX, USPS, UPS, etc. Of course, MACROKUN can also provide air and sea transportation. The powerful logistics system enables all MACROKUN'S Printing Mesh, Filter Mesh and Filter Bags and so on to be easily and efficiently transported to any place. For quotes and inquiries, please email our sales team.
